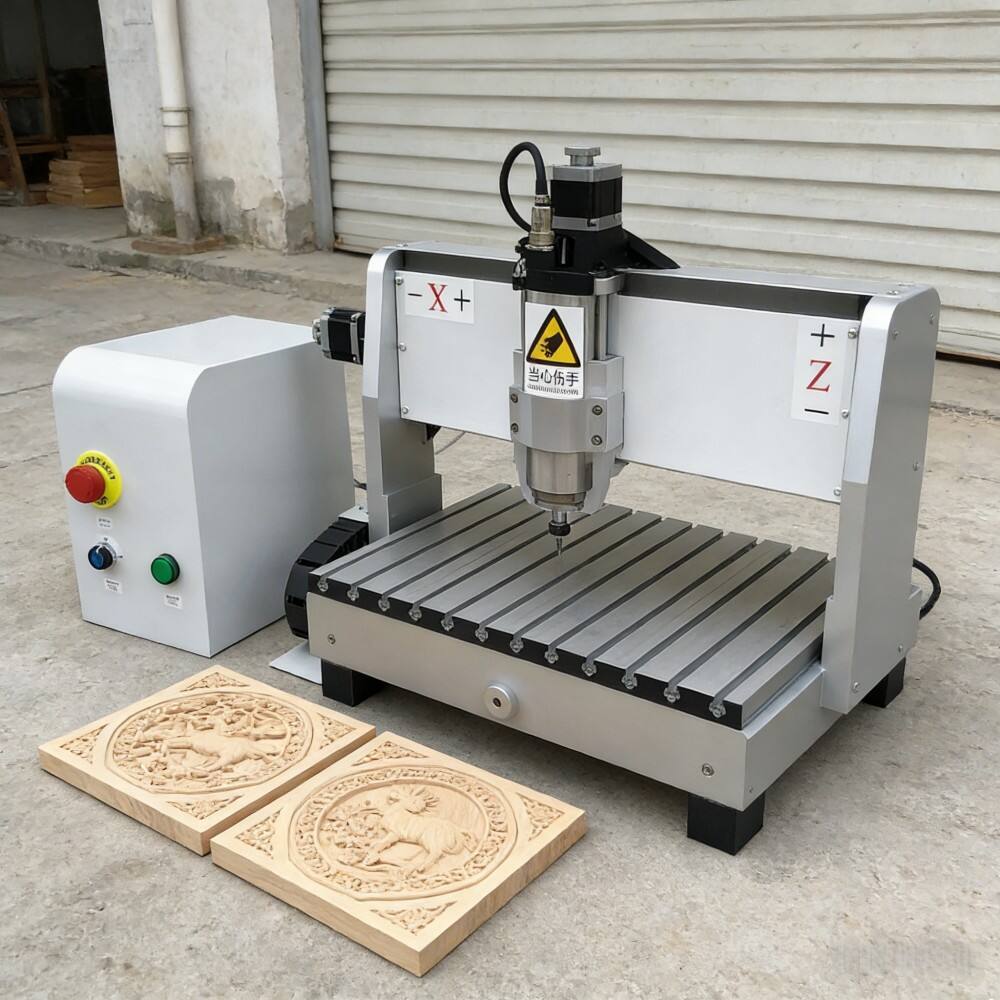

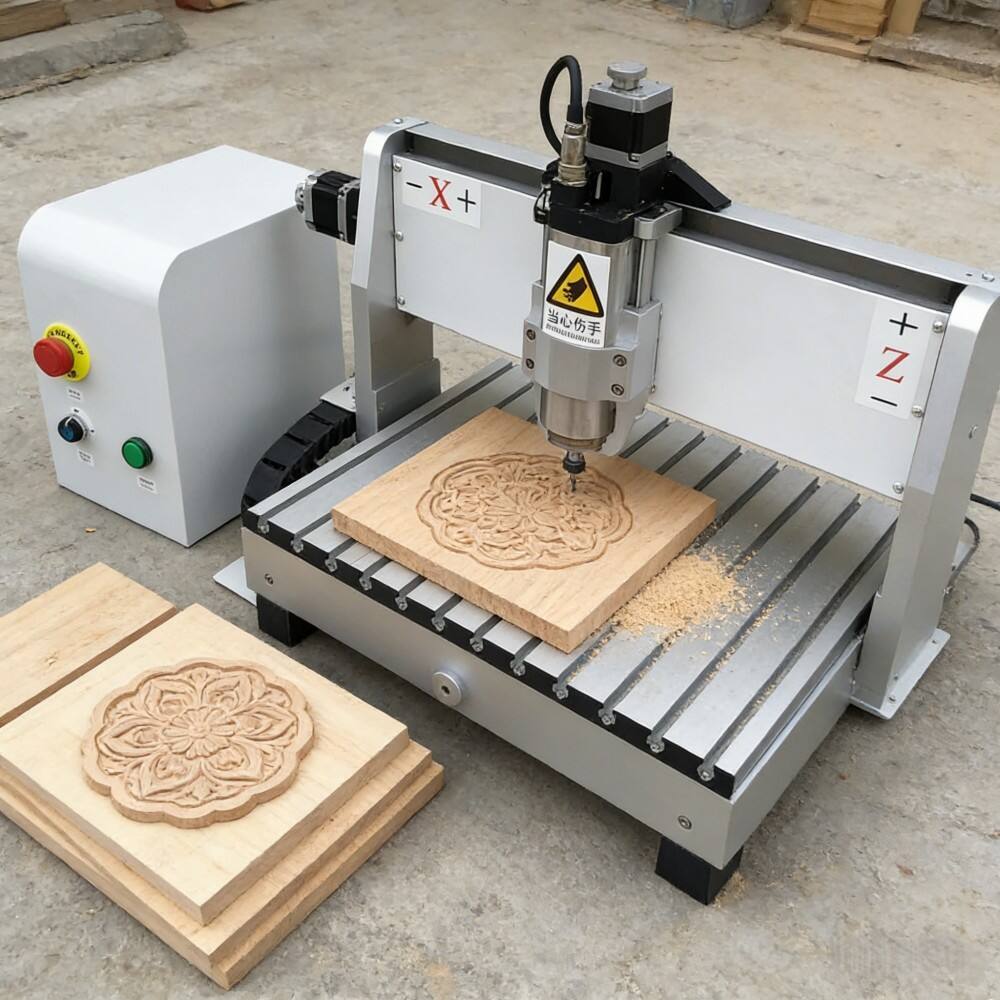

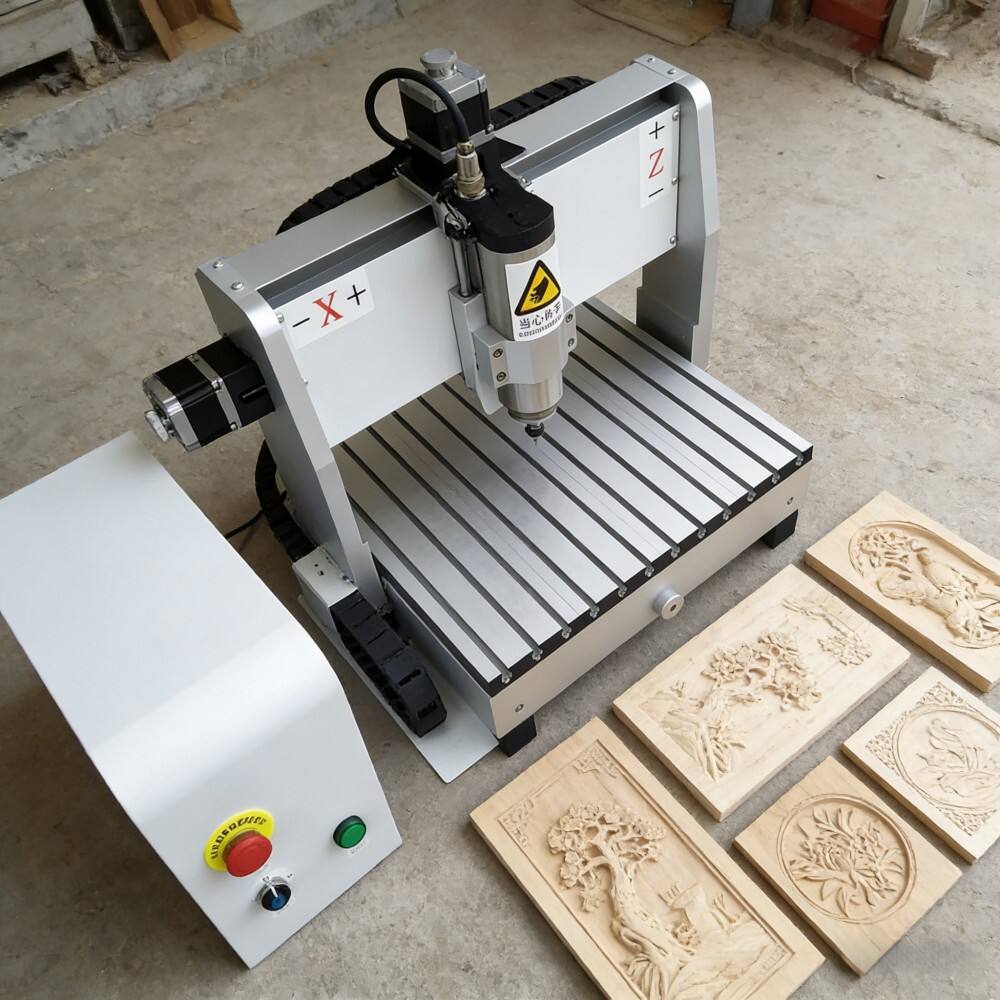

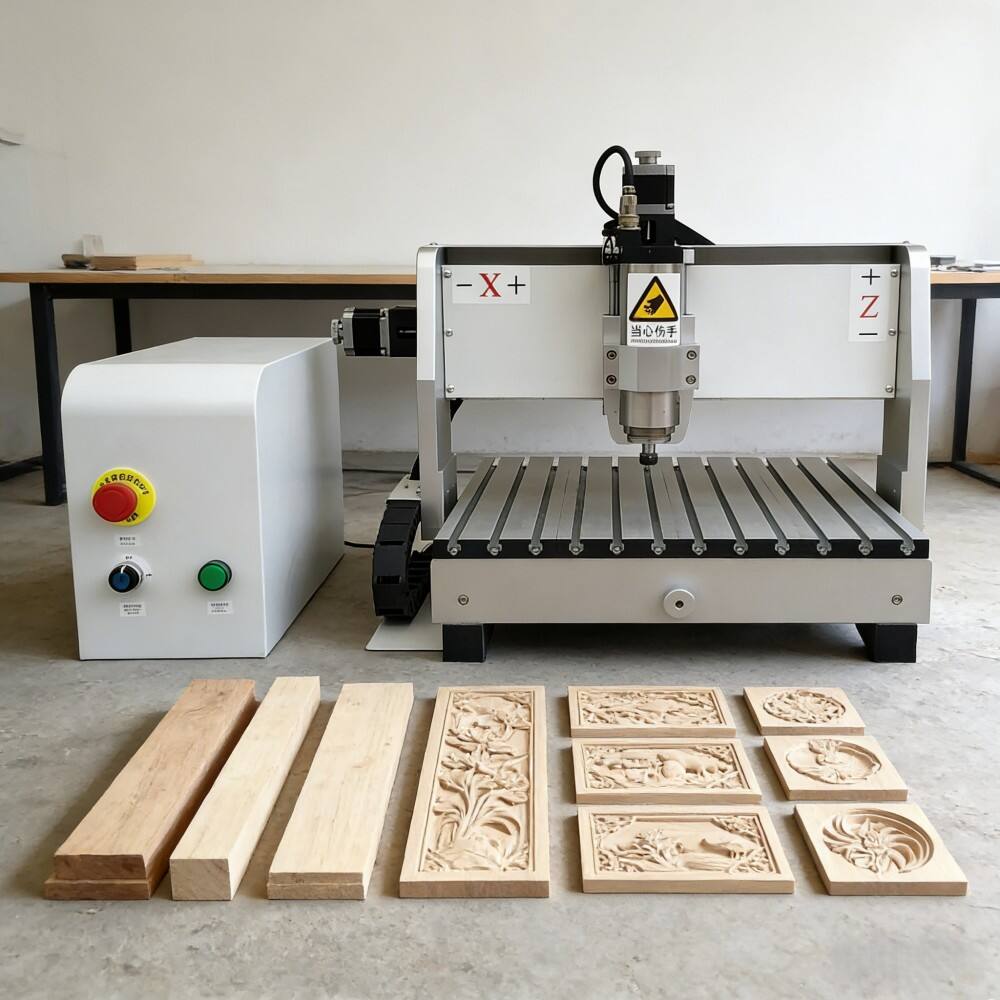

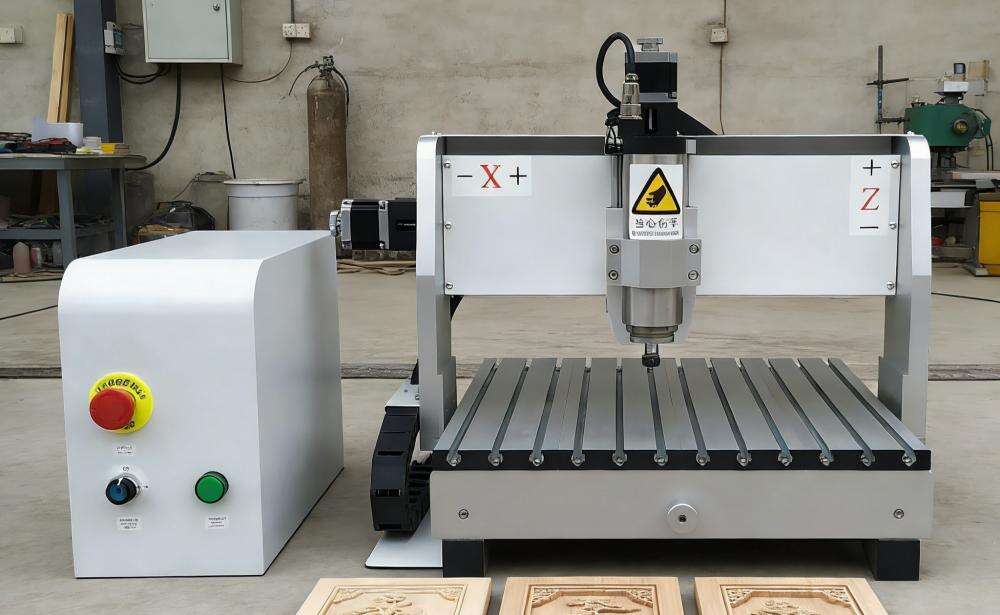

Mini Desktop CNC Router
Model Number：MX1325MINICNC
Place of Origin：China
Certification: CE FDA
- Overview
- Recommended Products
Description
Competitive Advantage
2. Simple and easy to operate, even beginners can quickly achieve carving, cutting, and drilling.
3. Stable processing precision, compatible with various materials such as wood, acrylic, and PCB, high cost performance.
 |
 |
 |
Specifications
| Model | MX-4030T | MX-4060T | MX-6090T |
| Working travel (X*Y*Z) | 400*300*100mm | 400*600*100mm | 600*900*100mm |
| Structure Material | 6061 Aluminum Alloy | 6061 Aluminum Alloy | 6061 Aluminum Alloy |

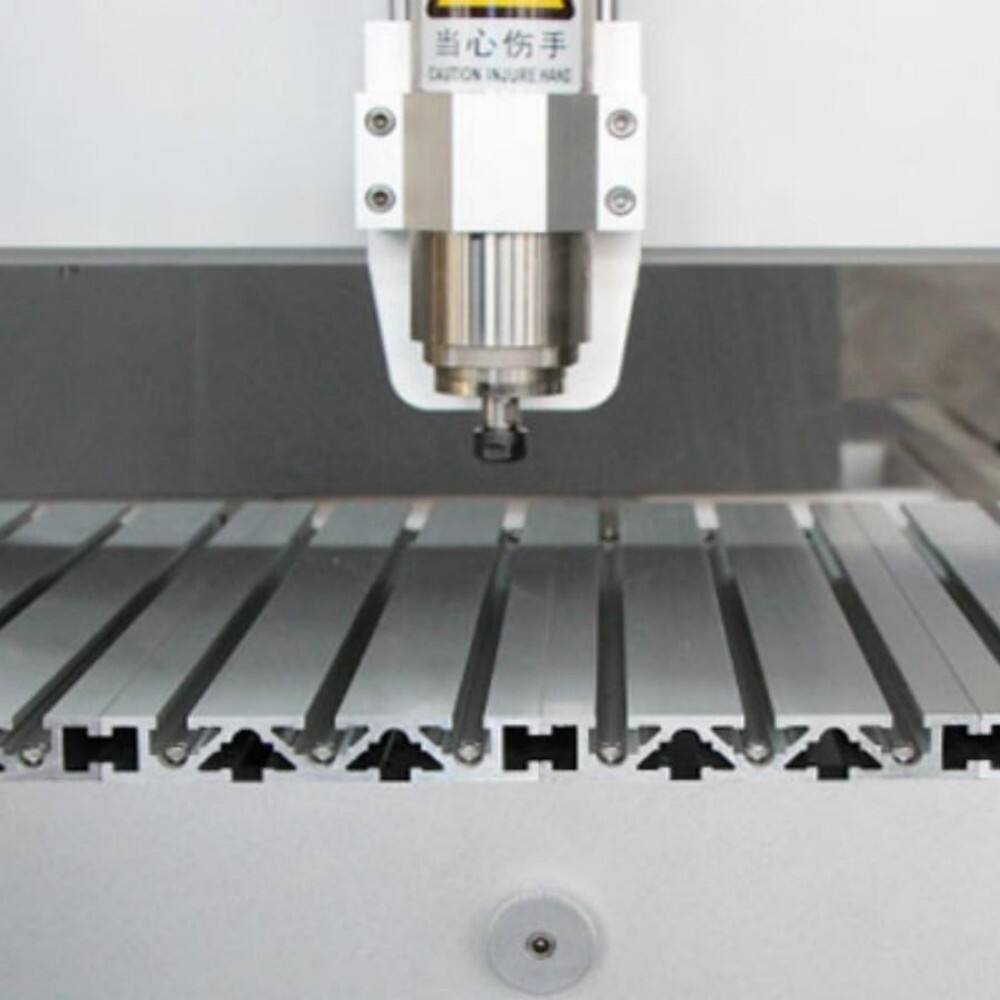

| Working table | Aluminum profile T slot table | Aluminum profile T slot table | Aluminum profile T slot table |

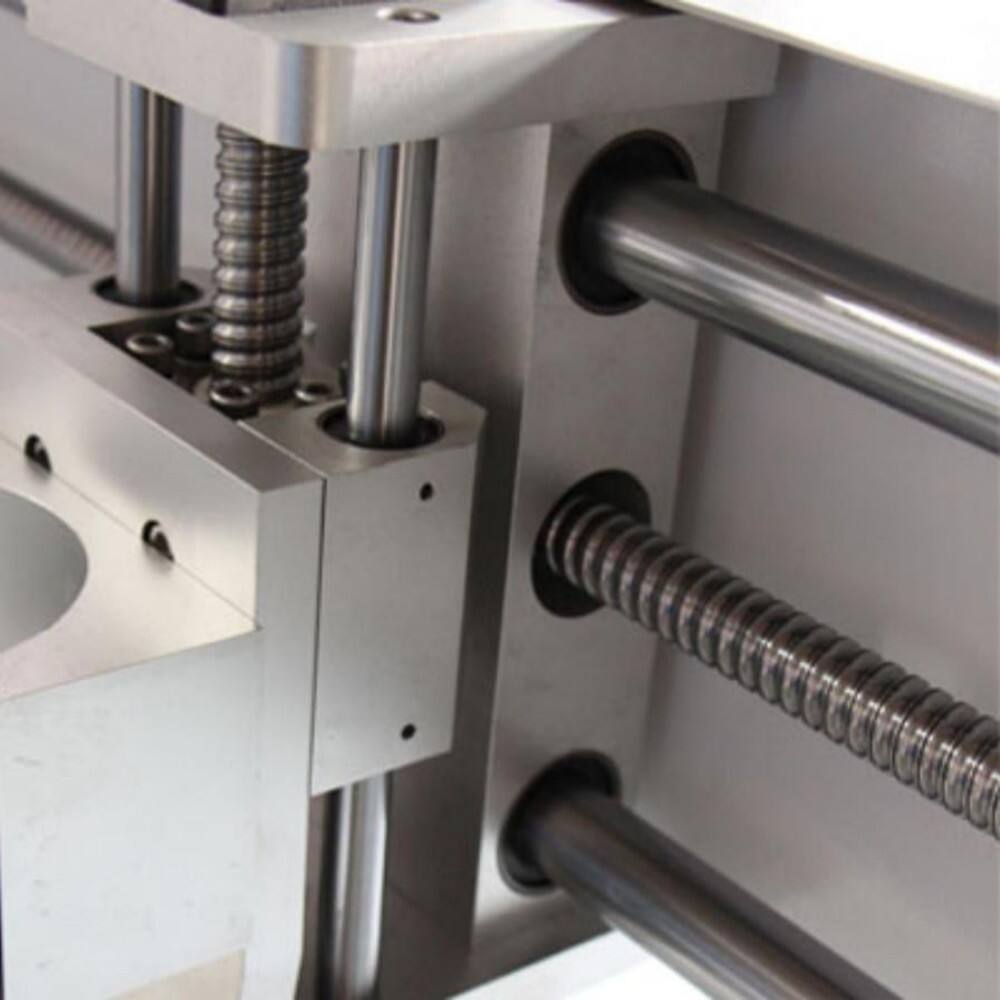

| Screw | 1605 ball screw | 1605 ball screw | 1605 ball screw |
| Guide rail | Circular Guide rail | Circular Guide rail | Circular Guide rail |
| Spindle Motor Power | 800W/1.5KW/2.2KW | 800W/1.5KW/2.2KW | 800W/1.5KW/2.2KW |
| Spindle cooling method | Air cooled or water cooled | Air cooled or water cooled | Air cooled or water cooled |
| Range of Spindle Speed | 0-24000rpm/min | 0-24000rpm/min | 0-24000rpm/min |
| Spindle collet | ER11-4、6、3.175mm | ER11-4、6、3.175mm | ER11-4、6、3.175mm |

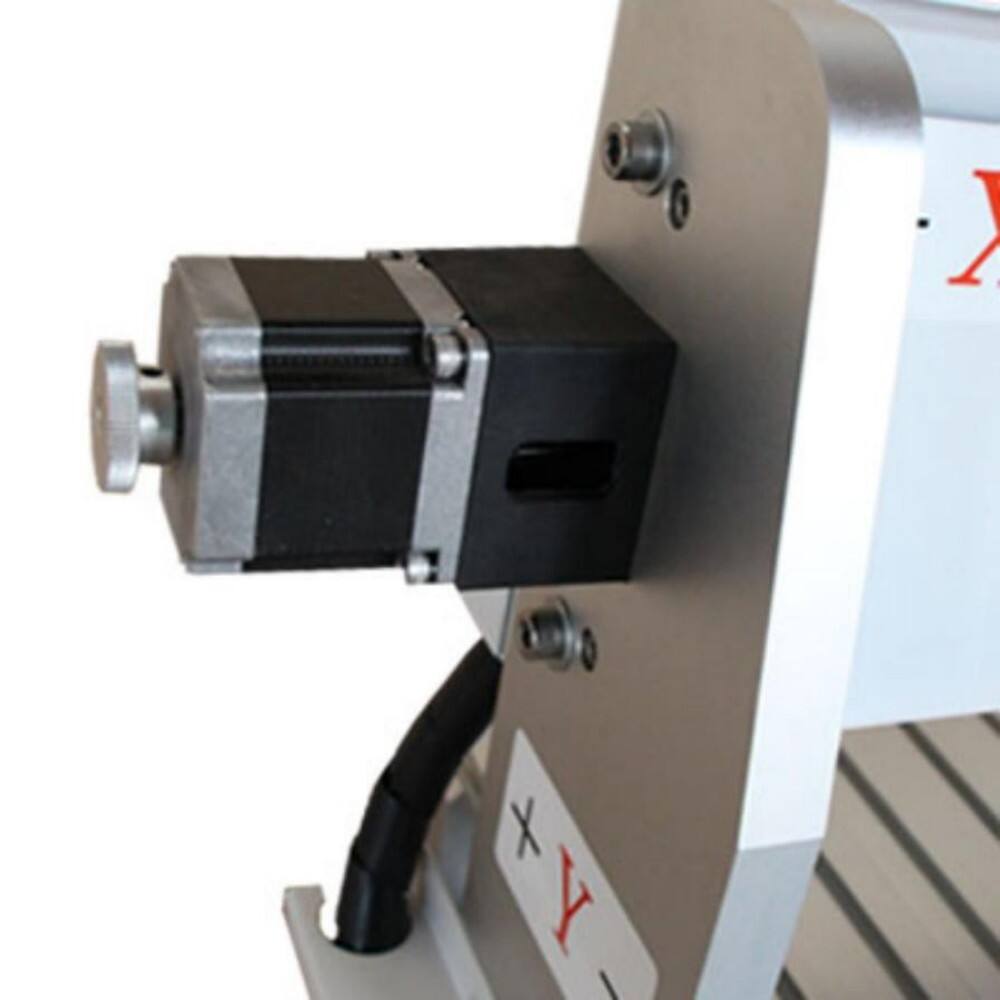

| Driver | 57 stepper driver | 57 stepper driver | 57 stepper driver |
| Accuracy (mm) | ±0.05 mm | ±0.05mm | ±0.05mm |
| Control system | Mach3/DSP | Mach3/DSP | Mach3/DSP |
| File Format | G.Code | G.Code | G.Code |
| Working Voltage | AC220V ±10%,50-60Hz | AC220V +/-10%,50-60Hz | AC220V +/-10%,50-60Hz |
| Machine Dimension | 680*610*560mm | 910*680*560mm | 900*1200*580mm |
| Packaging Size((L*W*H)) | 780*710*730mm | 1010*780*730mm | 1325*1020*750mm |
| Weight | 75Kg | 85Kg | 136Kg |
Technical Details
 |
 |
 |
 |
|

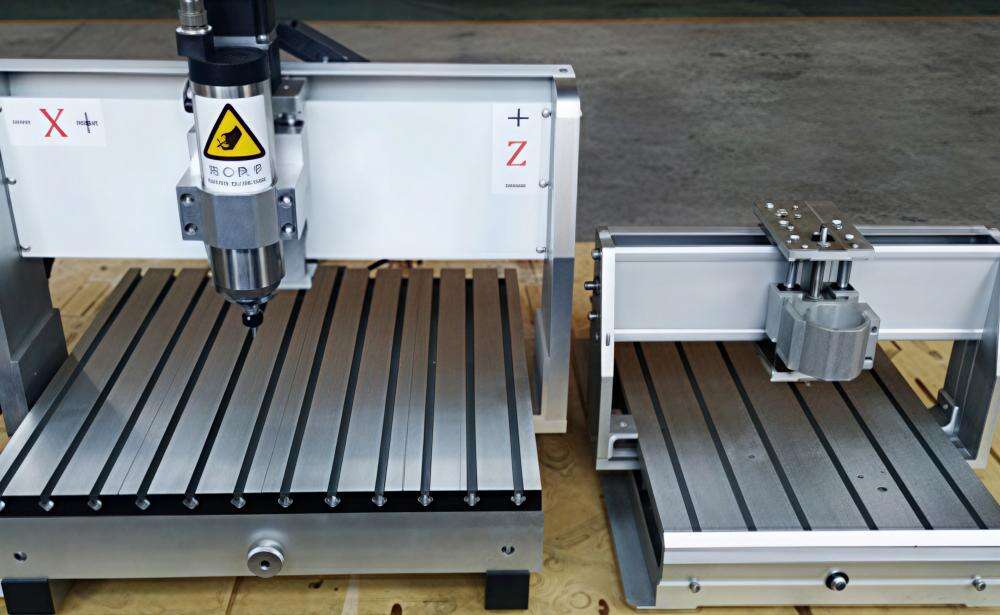

Machine Punch Built with a rigid, industrial-grade body to handle heavy use with consistent results. |
Machine inspection Every machine undergoes an 8-hour aging test for uncompromising reliability. |

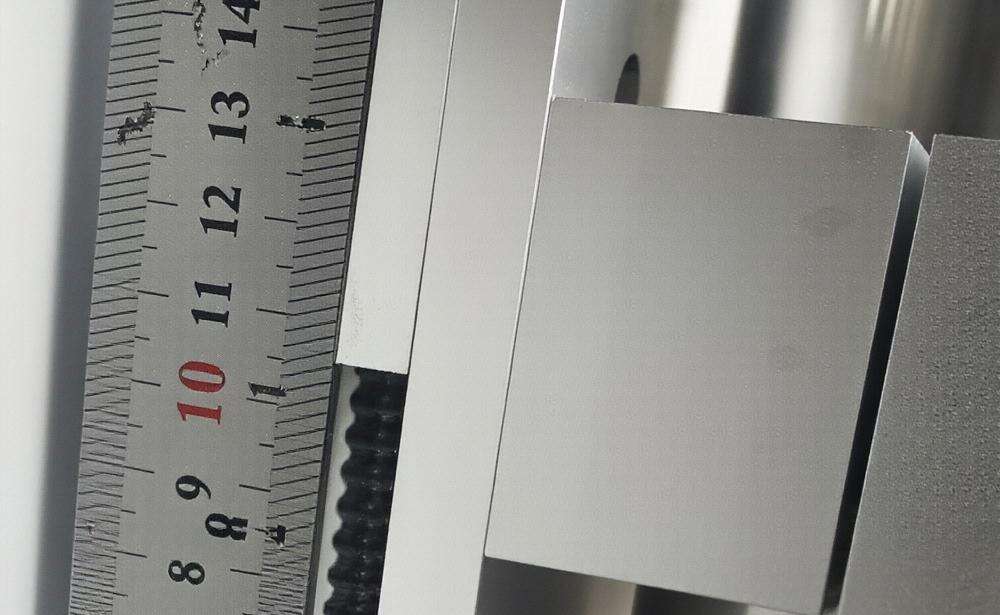

Workpieces height Z-axis travel: 100mm, ideal for different workpiece heights. |

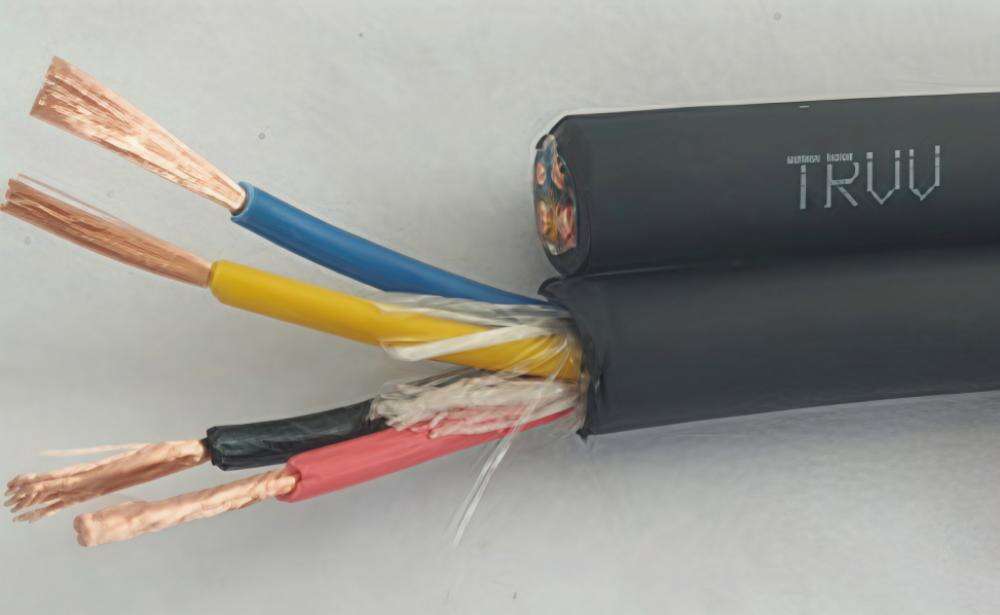

Wire All cables are TRVV type with 100% pure copper wires. |
Applications
| Material Category | Materials | Processing Capability | Typical Applications |
| Solid Wood | Hardwood Softwood | √ Cutting √ Engraving √ Milling | Furniture Doors Decorative Panels |
| Engineered Wood | MDF Plywood Particle Board Fiberboard | √ Cutting √ Engraving √ Grooving | Cabinets Wardrobes Interior Decoration |
| Composite Wood | Blockboard Laminated Board | √ Cutting √ Engraving | Furniture Manufacturing |
| Decorative Boards | VeneerBoard MelamineBoard | √ Cutting √ Carving | Interior Decoration |
| Plastic Materials | PVC Board Acrylic ABS | √ Cutting √ Engraving | Advertising Signs Display Panels |
| Foam Materials | Foam Board EVAFoam | √ Cutting √ 3D Milling | Model Making Decoration |
| Soft Metal (Optional) | Aluminum Sheet Copper Sheet | √ Light Engraving √ Light Milling | Nameplates Decorative Parts |
| Composite Panels | Aluminum Composite Panel Wood-Plastic Board | √ Cutting √ Engraving | Advertising Construction Decoration |
Why choose us
 |
 |
Logistics & Transportation
 |
 |

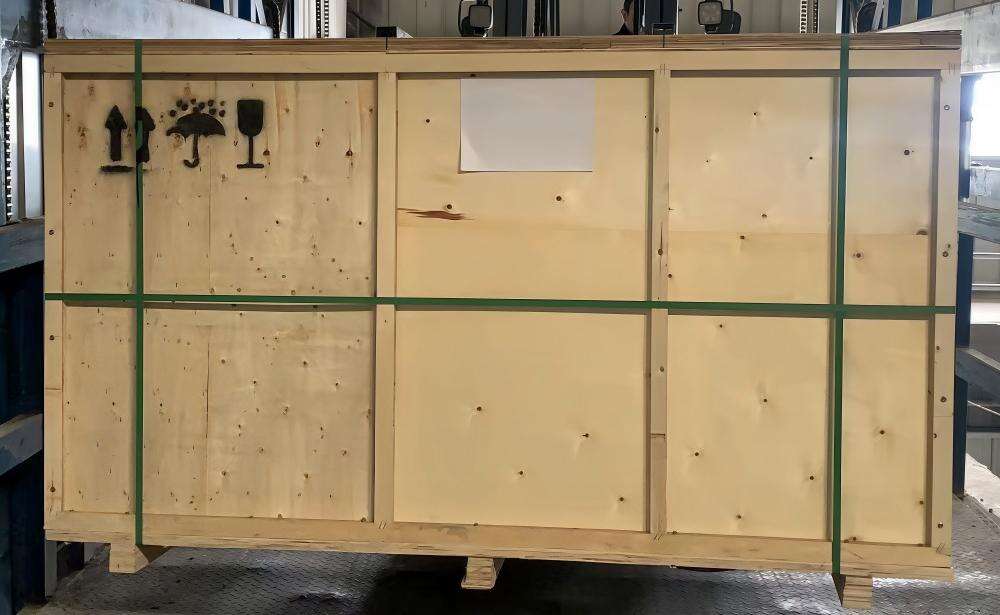

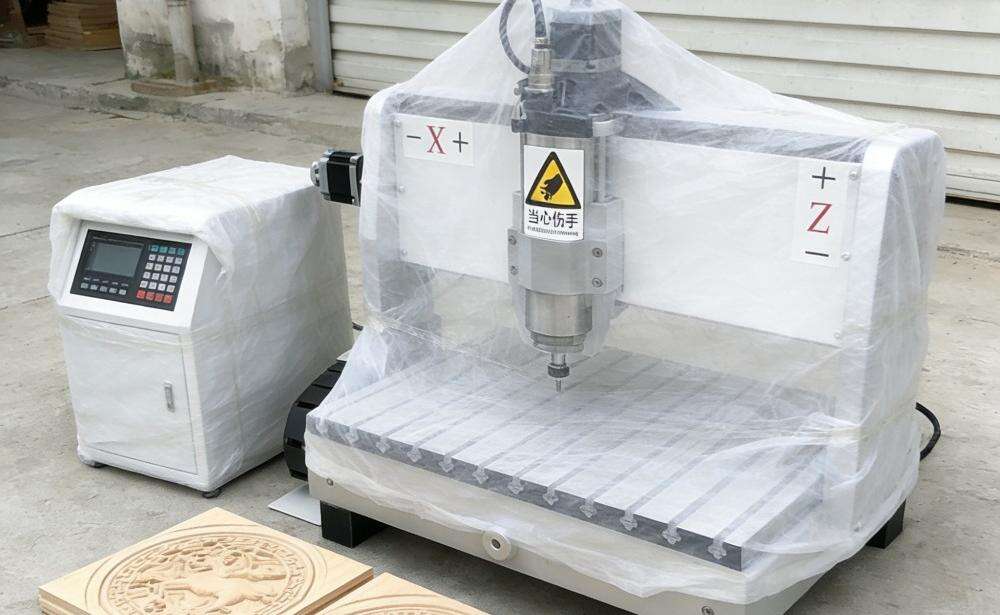

| Wrapping with protective film | Wooden box sealing |
 |
 |
 |
| Forklift moving goods | Container Loading | Container Sealing and Transportation |
FAQ
Q1:I knew nothing about the laser machine ,how I choose the suitable machine for my work?
A1 : Only need to tell use the which kind material you want to cut or engraving ,the max thickness need to cut , and the max size you want to finish.
Q2:When I got this machine, but I don't know how to use it. What should I do?
A2:English manual & video will be sent out together with the machine. If you still need any furthe helps,our engineer can also guide you via wechat, skype or video conference for free. If still not workable, our engineer can go aboard to guide you ,but some charge is needed.
Q3:If some problems happen to this machine during warranty period, what should I do?
A3:When customer supply picture & video, free parts will be supplied during machine warranty period if machine have some problems.While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
