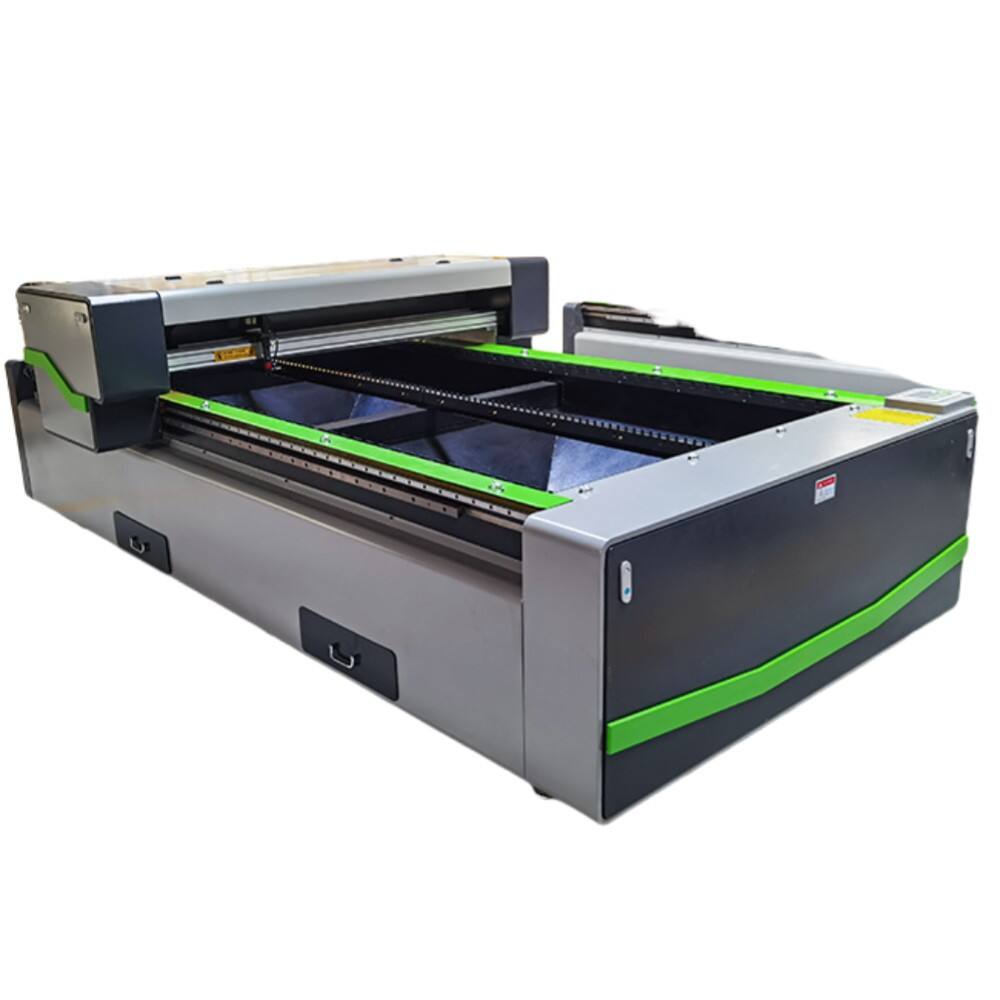

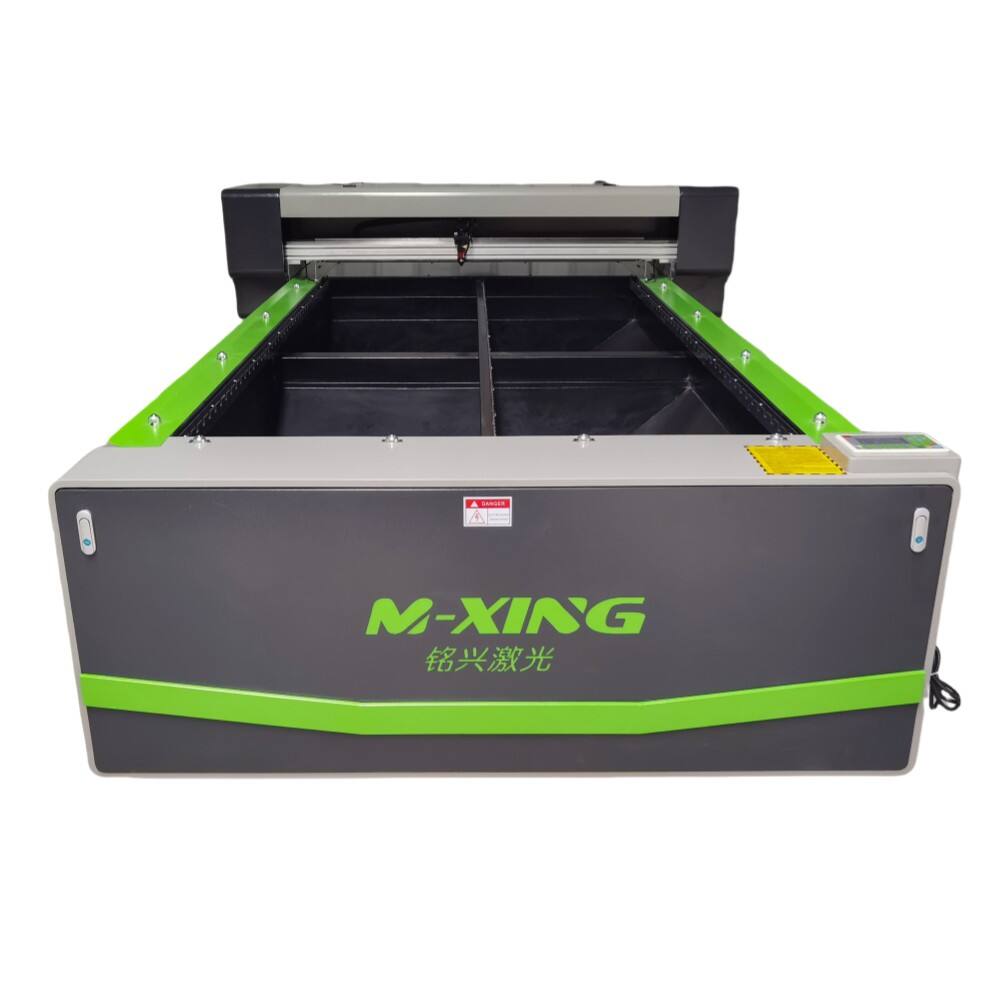

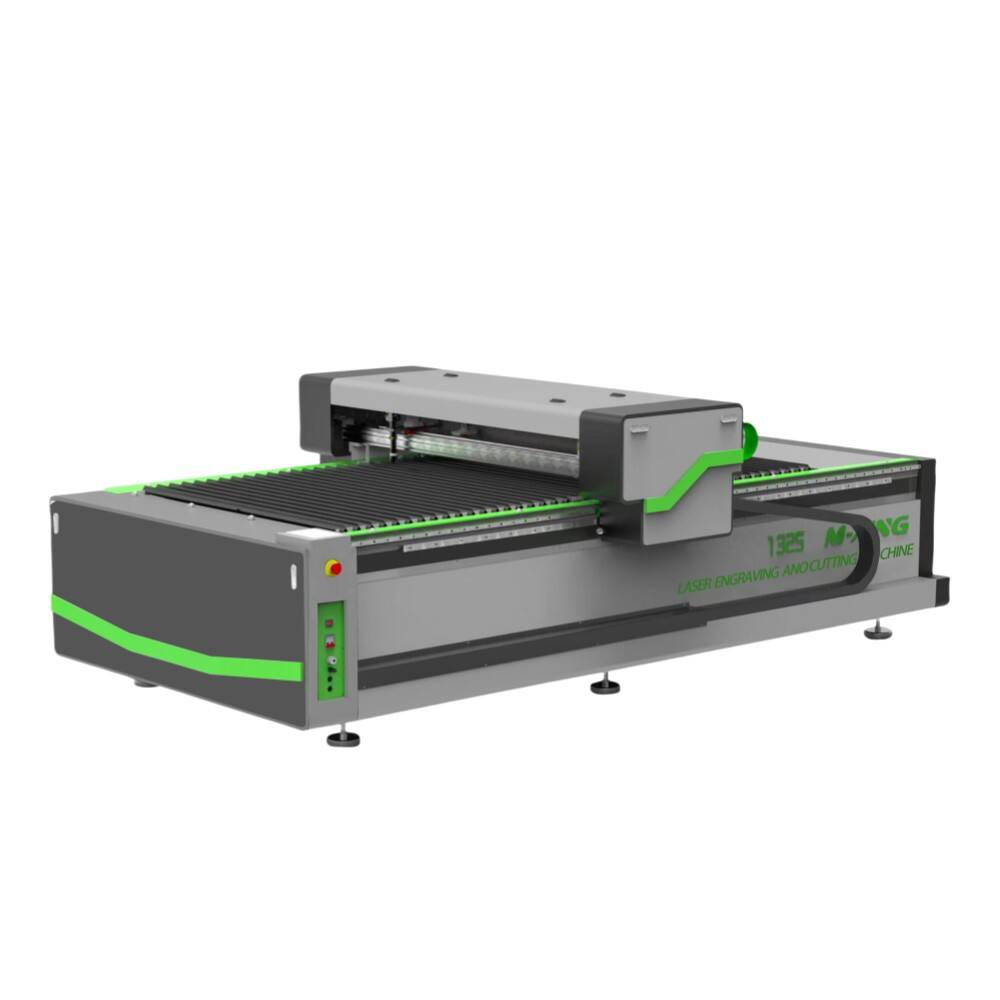

1325 White and green version co2 laser cutting engraving machine for Acrylic Wood MDF 150w 300w
Brand name：Mingxing
Model Number：X1325
Place of Origin：China
Certification: CE FDA
Model Number：X1325
Place of Origin：China
Certification: CE FDA
- Overview
- Recommended Products
Description
High Precision, High Cost Performance and Wide Application Range
130W/150W/300W/500W non-metal CO2 laser precision cutting solution
130W/150W/300W/500W non-metal CO2 laser precision cutting solution
Competitive Advantage
1.Square tube welded bed. In the industry. After heat aging and gantry milling treatment, it does not deform for30 years, and has good stable vibration absorption performance. The high-speed cutting of machine tool canreduce the resonance of machine tools, and the cutting precision is higher.
2. The X-axis and Y-axis are driven by racks. Changing the traditional belt operation, the advantages are not easy todeform, the optical path is not easy to deviate from, and the overall operation is stable. The X-axis adopts doubleguide rails to run stably and ensure precision.
3. Motor Accelerator Structure, it is to reduce the output speed and inertia of the drive motor, while increasing thetorque and load capacity, so as to achieve the ideal transmission effect.
 |
 |
 |
Specifications
| Model number | MX-1325 |
| Working area | 1300*2500(X*Y) |
| Laser power | 150w 200w |

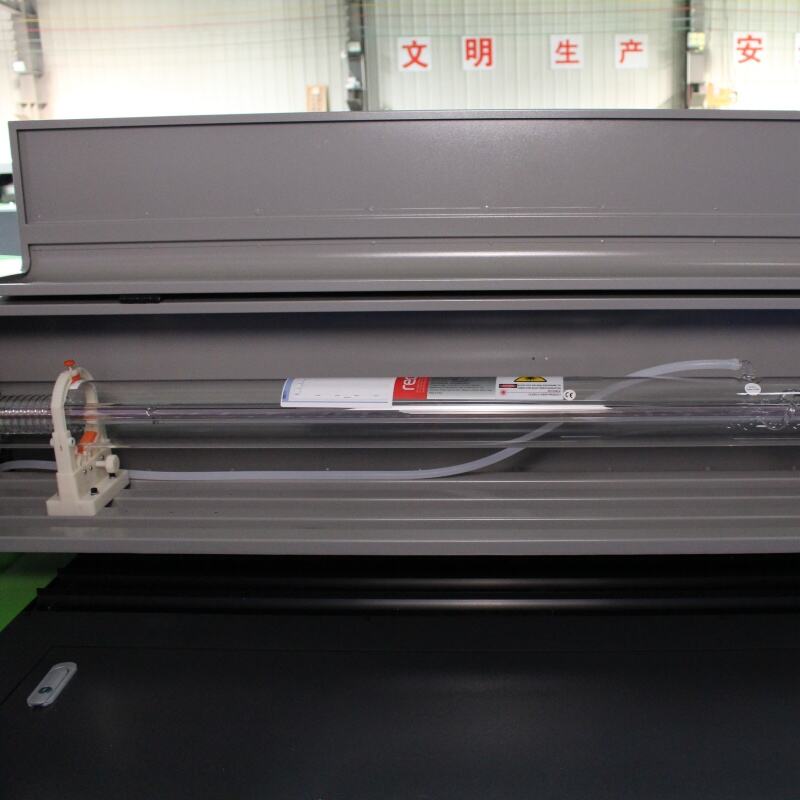

| Brand of laser tube | Reci EFR Yongli |
| Red dot point to position origin | Yes |
| Guide Rail | Taiwan |

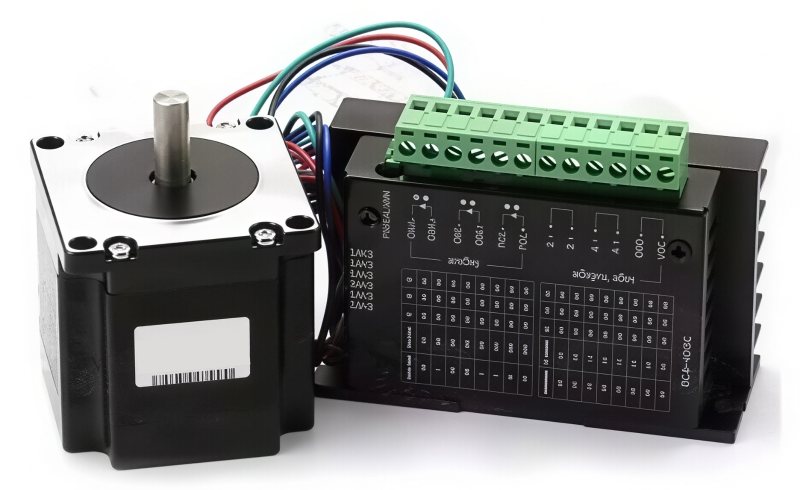

| Motor | Stepper Motor |
| Reducer | Standard |
| Working table | Blade table |
| Cooling system | CW5200 water chiller |
| Control system | Ruida 6445G |
| Control software | RD works V8 |
| Graphic format supported | BMP, PLT, DST, DXF, AI, JPG, GIF, PGN, TIF |
| Exhausted fan | 750w (TWO) |
| Air compressor | haili |
| Lens and reflect mirrors | mirrors and lens: 3 reflection mirror and 1 lens |
Technical Details
 |
 |
 |
|
Alrcraft aluminum crossbeam The light weight facilitates high speed movement during machining,and also hasahigh degree of flexibility, allowing for asignificant increase in machining speed whilemeeting accuracy |

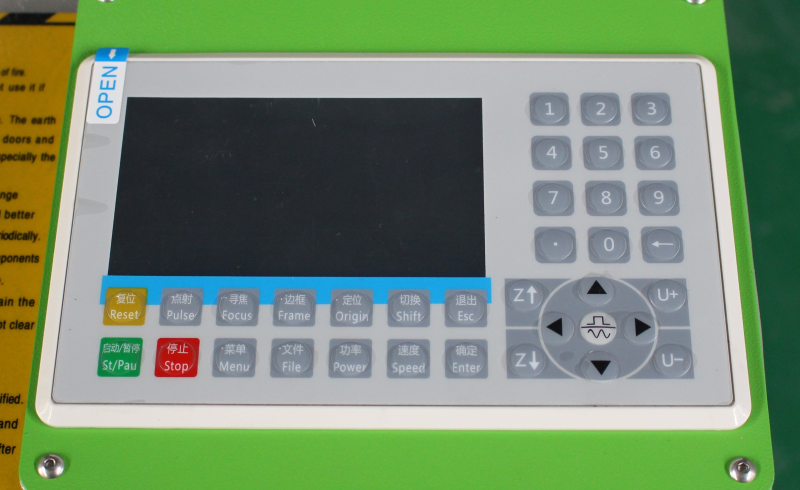

Control System Ruida control, with multi-language(English,French,Spanish, and more languagesupdating)available, which i smoreintuitive,simple and more convenient |

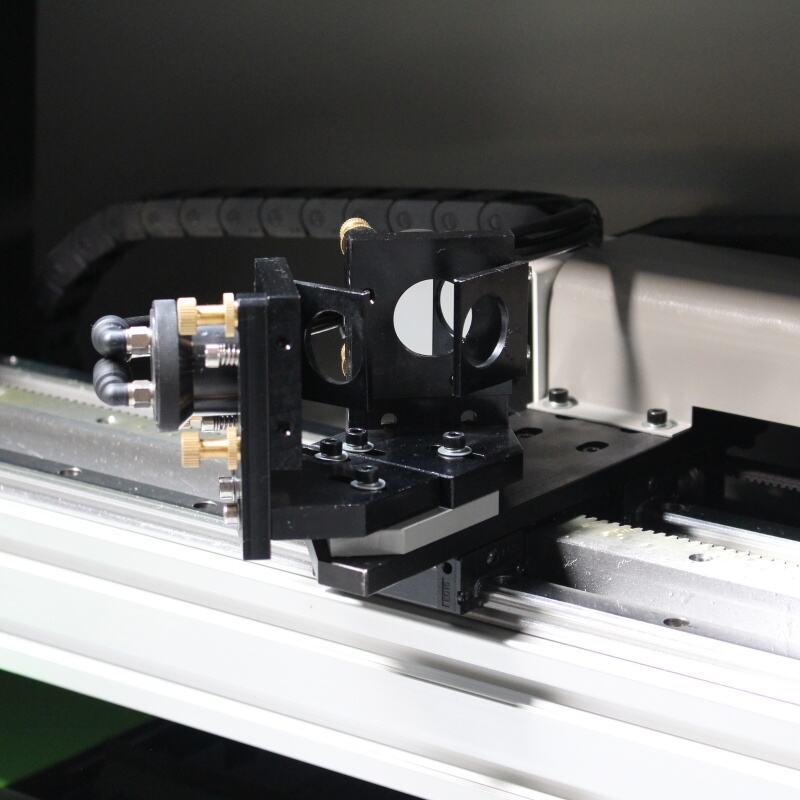

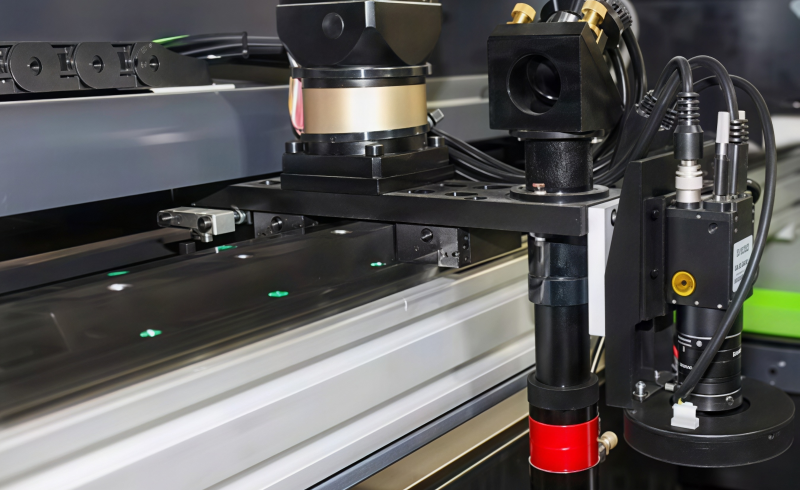

Laser Head Special laser head can automatically adjustthe lifting height.Unique laser head design, reliableper formance and high engraving accuracy withred light, covenient and quick in findingengraving and cutting position |
 |
 |
 |
|

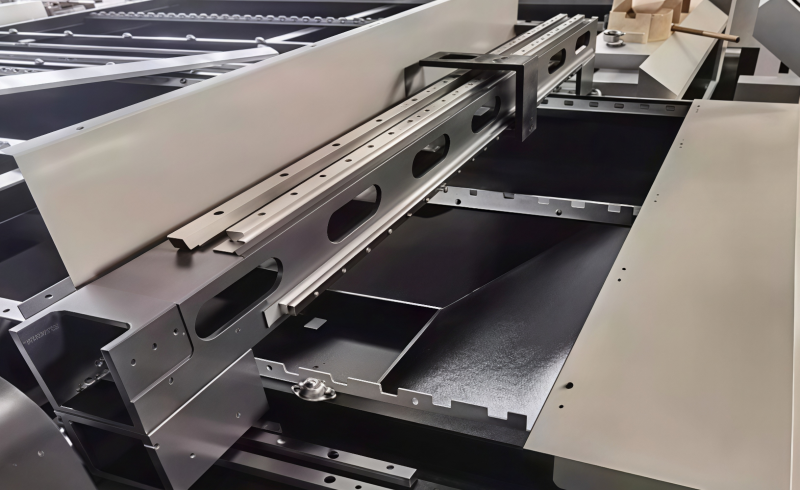

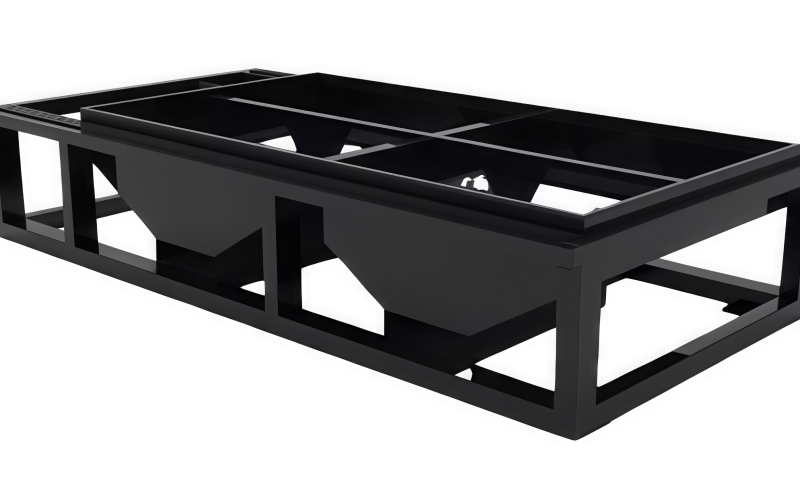

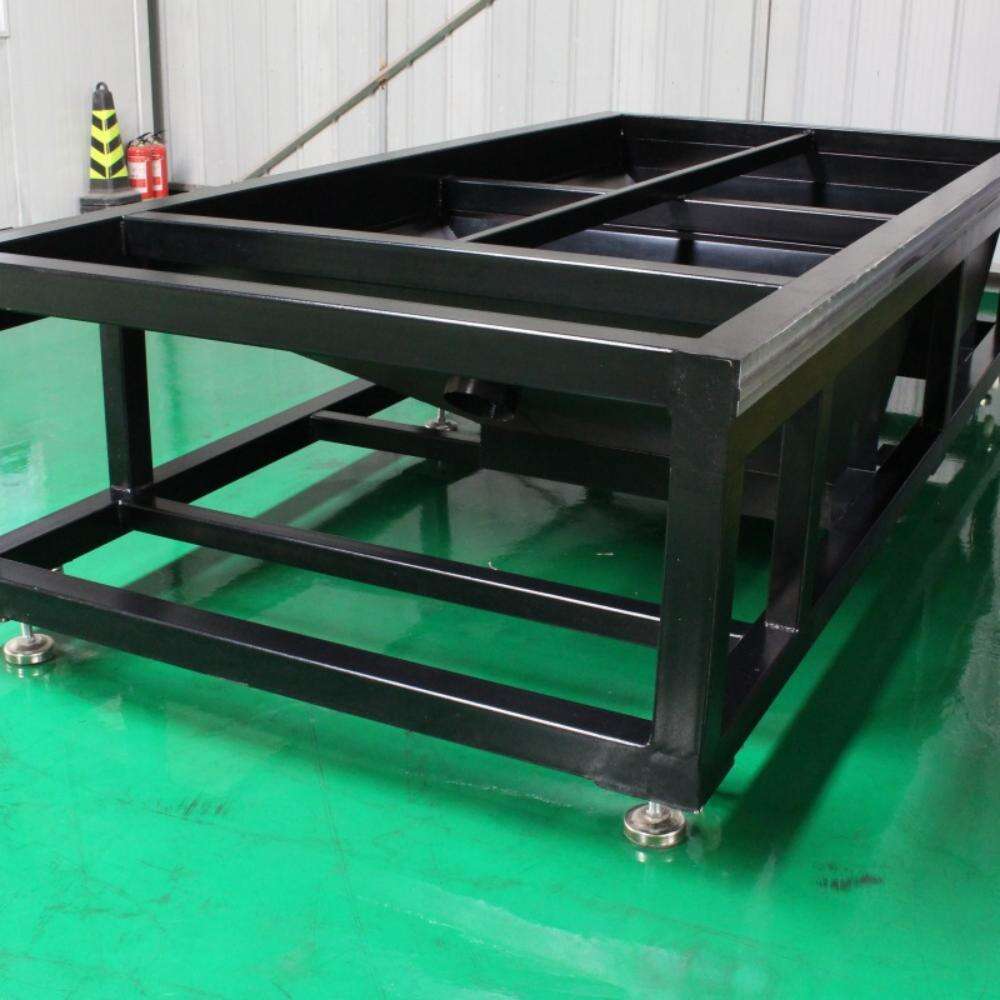

Machine Bed Square tube welded bed. In the industry.Afterheat aging treatment, it does not deform for30 years, and has good stable vibrationabsorption performance. The high-speedcutting of machine tool can reduce theresonance of machine tool, and the cuttingprecision is higher |

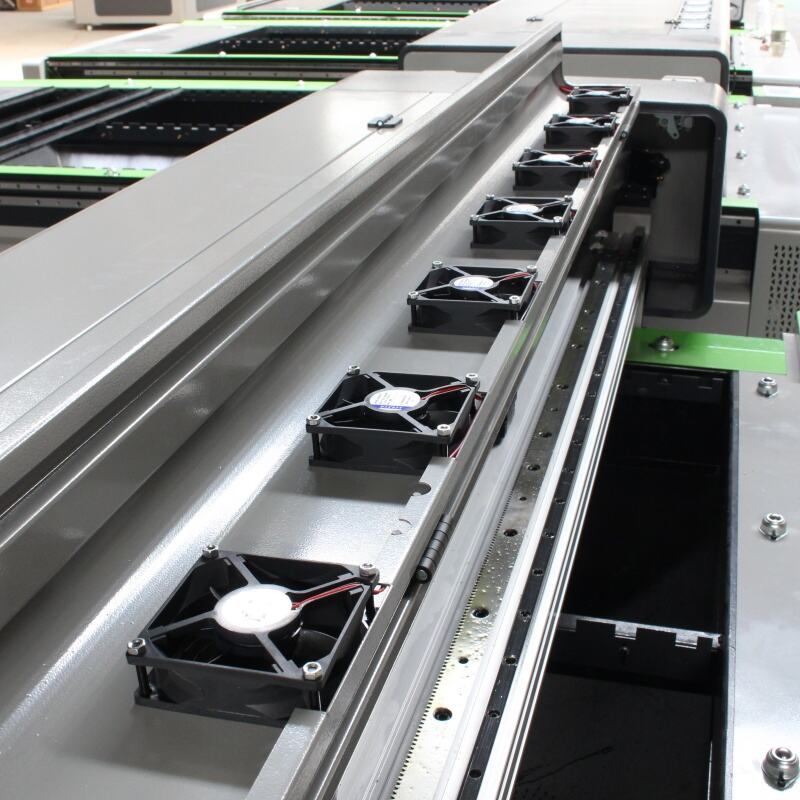

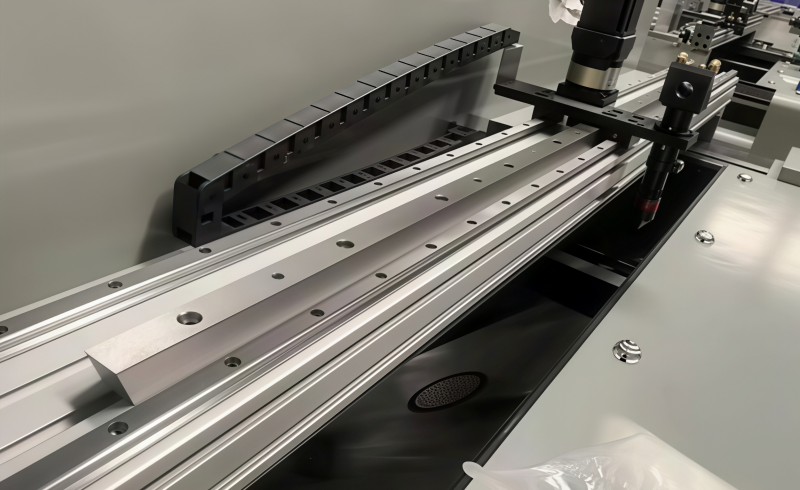

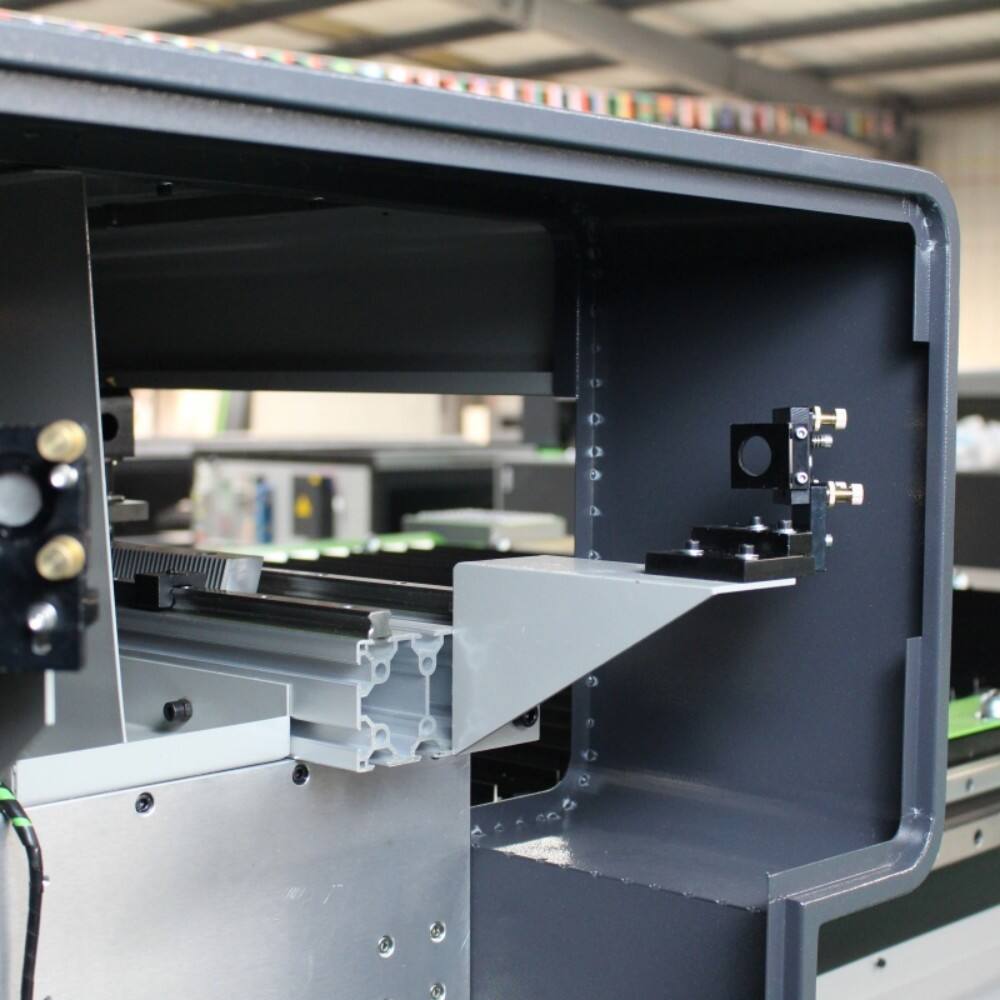

Rack driver The X-axis and Y-axis are driven by racks.Changing the traditional beltoperation, theadvantages are not easy to deform, the opticalpath is not easyto deviate, and the overalloperation is stable. The X-axis adopts doubleguiderails to run stably and ensure precision |

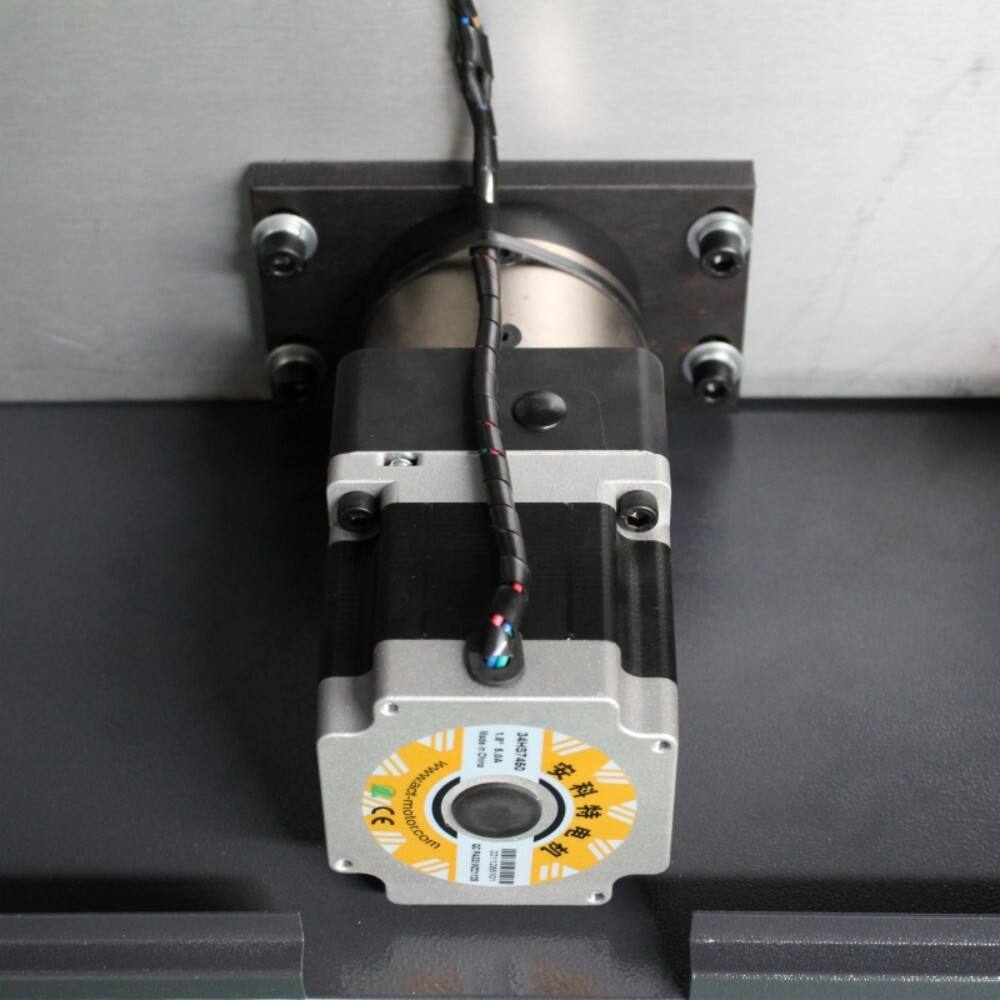

Reducer structure Motor Accelerator Structure, it is toreduce theoutput speed and inertia of thedrive motor,while increasing the torqueand load capacity,so as to achieve theideal transmission effect |
Applications
| Material | Cut | Engrave | |
| Acrylic,PP,PET,PC,PMMA,Organic Board,Double Color Plate | √ | √ | |
| Plastic,PP,PET,PC,PMMA,PS,PES,PA,Plastic Foils&Films,Polycarbonate.Polyester or Polyimide Membrane Keyboards | √ | √ | |
| Wood,Bamboo,Veneer,MDF,Blasa Wood,Plywood | √ | √ | |
| Leather,Pig Leather,Cow Leather,Sheep Leather | √ | √ | |
| Textile,Cotton,Silk,Felt,Lace,Synthetic&Technical Textiles,Aramid.Polyester,Fleece | √ | × | |
| Foam&Filter,Mats Polyester(PES),Polyethylene(PE),Polyurethane(PUR) | × | × | |
| Neopren | × | × | |
| Paper,Cardboard,Chipboard,Press Board | √ | √ | |
| Stone,Ceramic,Granite,Marble,Natural stone,Pebble Stone slate | √ | √ | |
|
Rubber Stamps,Synthetic&silicone Rubber,Natural Rubber,Microporous Foam |
× | √ | |
| Silicone Rubber,Synthetic Rubber | √ | √ | |
| Glass,Pressed Glass,Float Glass,CnystalGlass,Mirror Glass | × | √ | |
Why choose us
1. 12-hour rapid pre-sales response and free consultation.
2. We can provide any type of technical support to users.
3. Free sample production is available. Videos and images are provided.
4. We offer advanced solution design for all distributors and users.
5. We have manuals and CD/USB drives for software installation, operation, and machine use and maintenanee.
6. If parts are damaged during transportation, we can provide new parts.
 |
 |
Logistics & Transportation
 |
 |
 |
| Wrapping with protective film | Wooden box sealing | Forklift moving goods |
 |
 |
| Container Loading | Container Sealing and Transportation |
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose?
A1: Just tell us what material you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.
A1: Just tell us what material you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.
Q2: Who can help me transport the machine?
A2: We can arrange the shippment for you. Just tell us which port is near to you, so that we can check the exactly freight fee and shipping time for you.
Q3: How about your payment terms?
A3: You can transfer 30% or 50% advance payment to us, we start to make the machine for you, and when the machine finish, we will show video or photo to you, you pay the balance payment to us, here we arrange the shippment for you.
Q4: When I got this machine, but I don't know how to use it. What should I do?
A4: We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q5: If some problems happen to this machine during warranty period, what should I do?
A5: We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
