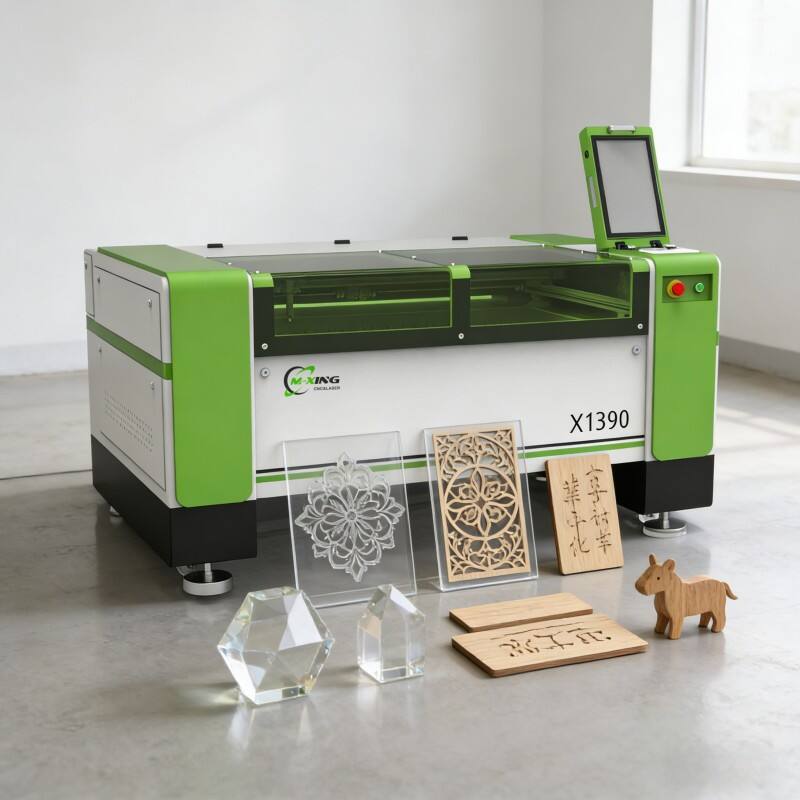

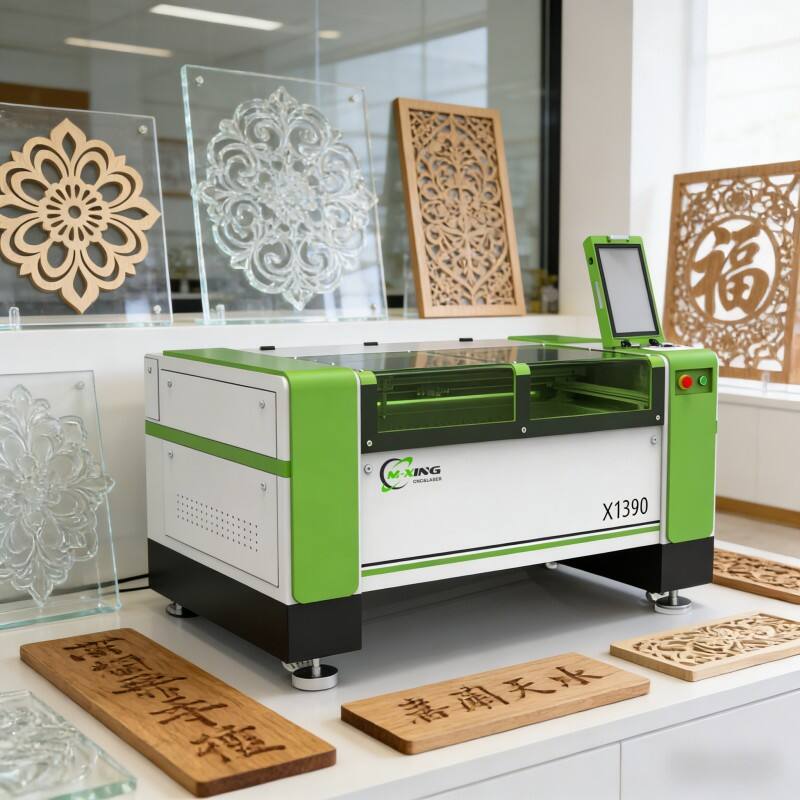

1390 High-end co2 laser cutting engraving machine for Acrylic Wood MDF
Model Number：X1390
Place of Origin：China
Certification: CE FDA
- Overview
- Recommended Products
Description
80W /100W/130W/150W non-metal standardized engraving and cutting solution
Competitive Advantage
2. Configure touch screen industrial control computer, support wifi communication, can be used directly, no need toinstall software, more efficient and convenient, instead of laptop computers.
3. Updated to a built-in water chiller, no installation required, saving time and effort.
 |
 |
 |
Specifications
| Product Mode | MX-1390 |
| Laser power | 80W/100w/130w/150w |
| Laser type | CO2 sealed-off layers of glass tube |
| Laser Source Brand | RECI/YONGLI/EFR |
| Engraving scanning speed | 0-60000mm/min |
| Cutting speed | 0-30,000mm/min |
| Laser energy control | 1-100% manual and software settings |
| Minimum forming text | Chinese 2.0mm×2.0mm, English 1.0mm×1.0mm |
| Maximum scanning accuracy | 2500DPI |
| Positioning accuracy | 0.05mm |
| Support software | CORELDRAW, PHOTOSHOP, AUTOCAD, various apparel CAD software |
Technical Details
 |
 |
 |
 |
|

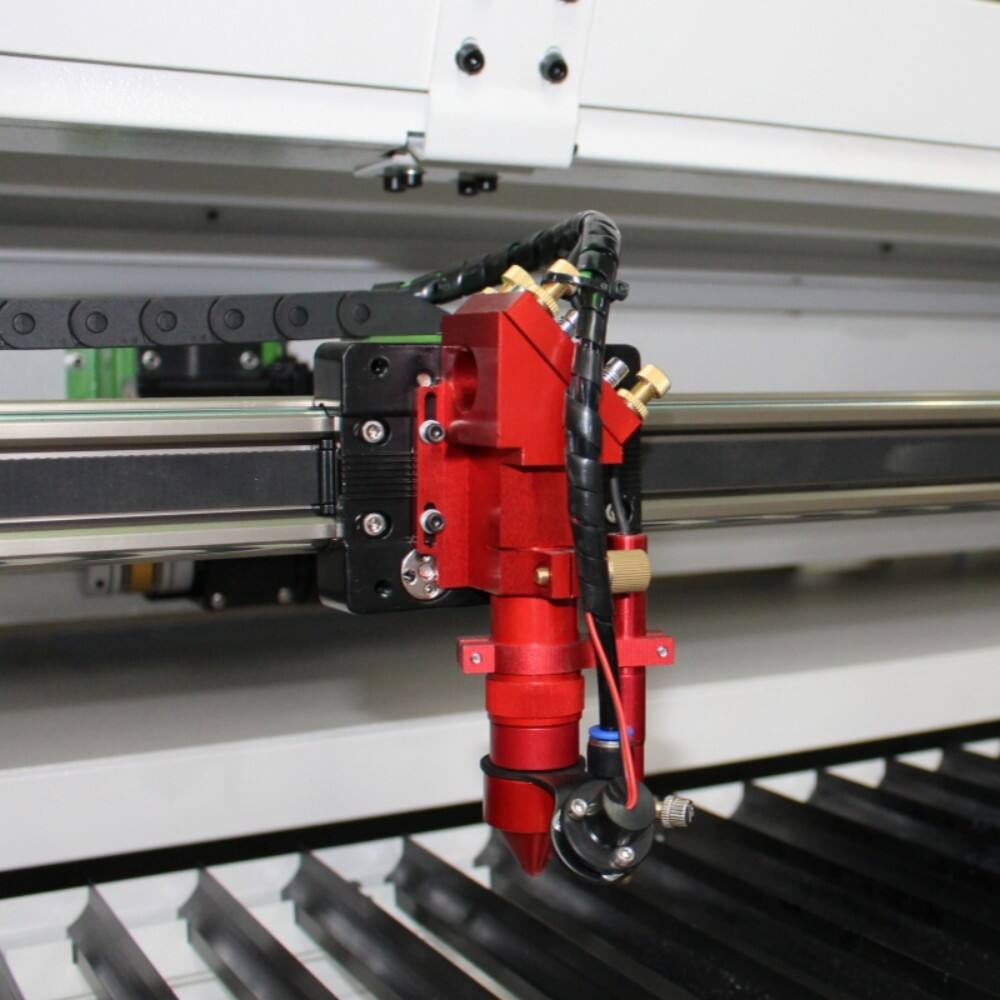

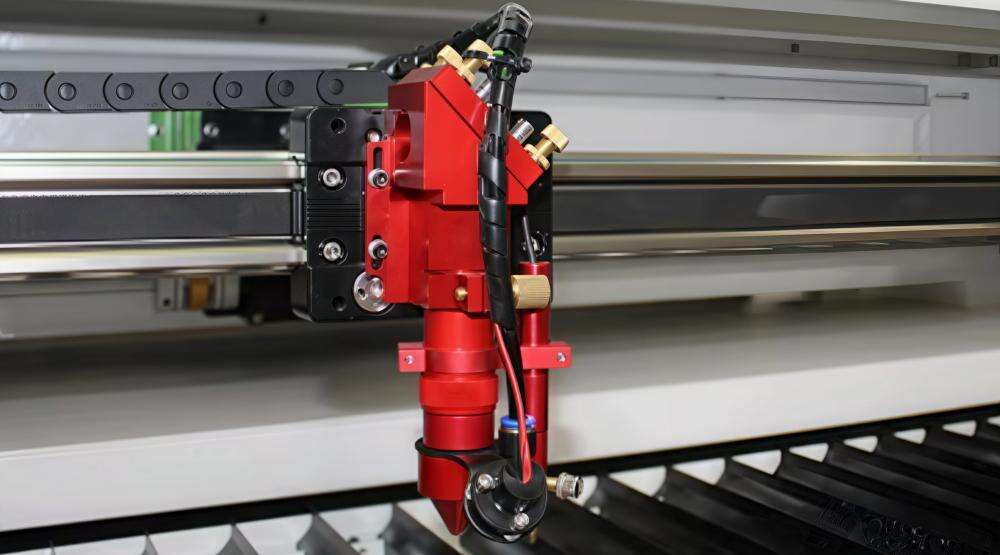

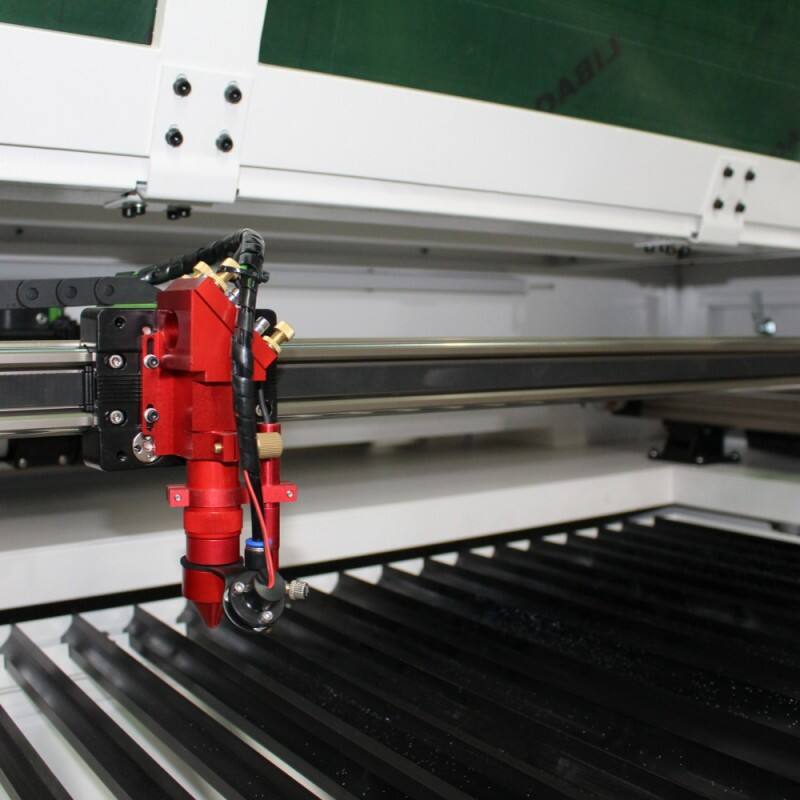

Laser Head Laser head reliable performance and high engraving accuracy with red light, covenient and quick in finding engraving and cutting position. |

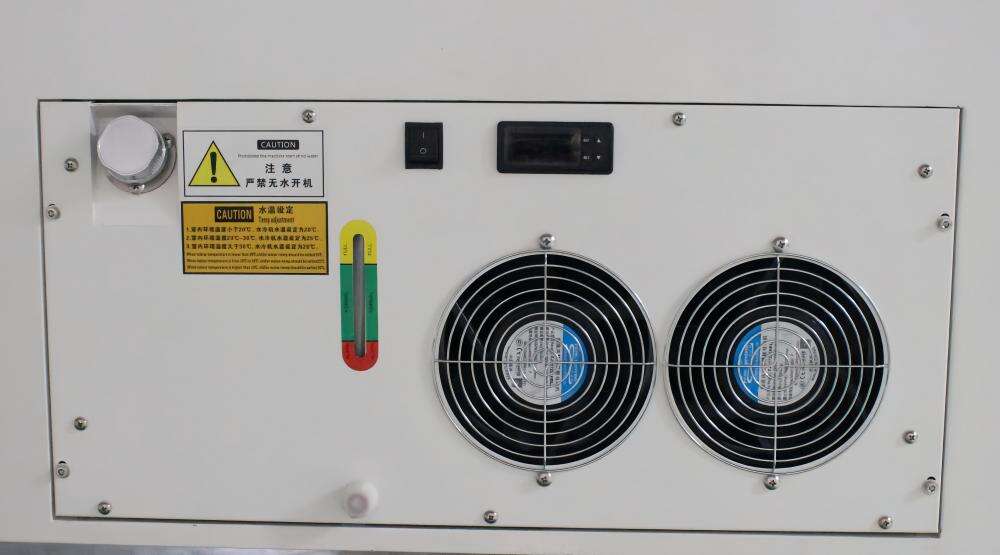

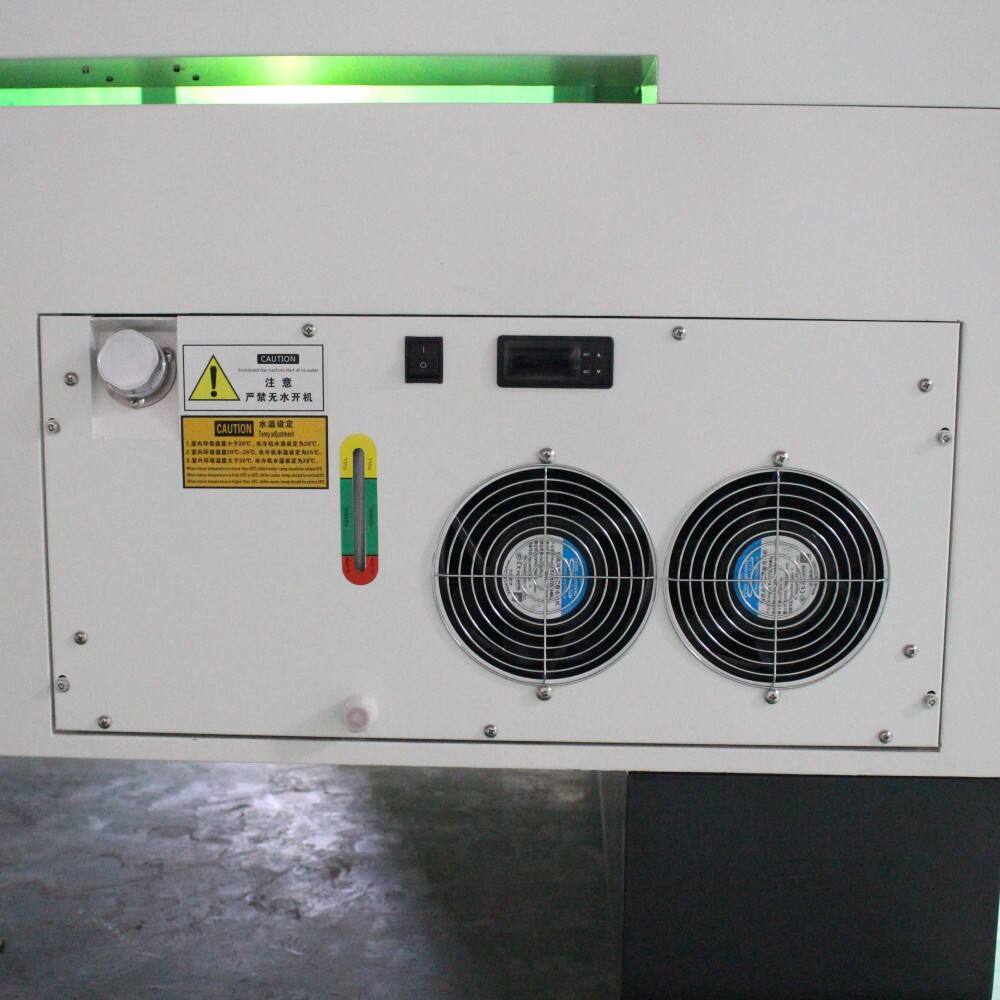

Water Chiller Bulit-in water chiller, no installation required,saving time and effort. |

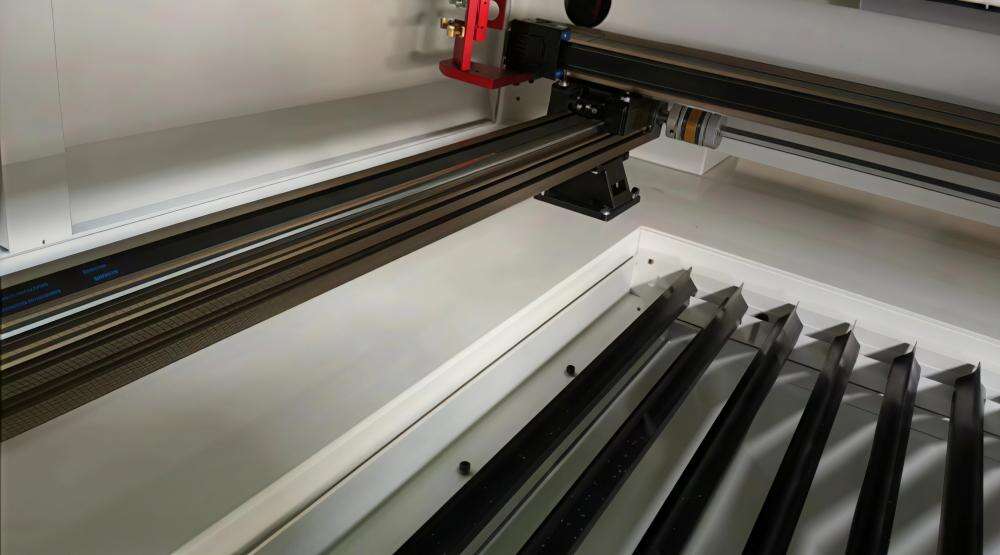

Transmisson Structure High precision slider group transmission structure,improve the motion performance and accuracy of the machine, enclosed beam make the traction of the machine more uniform, higher stability, dust-proof and noise-free. |

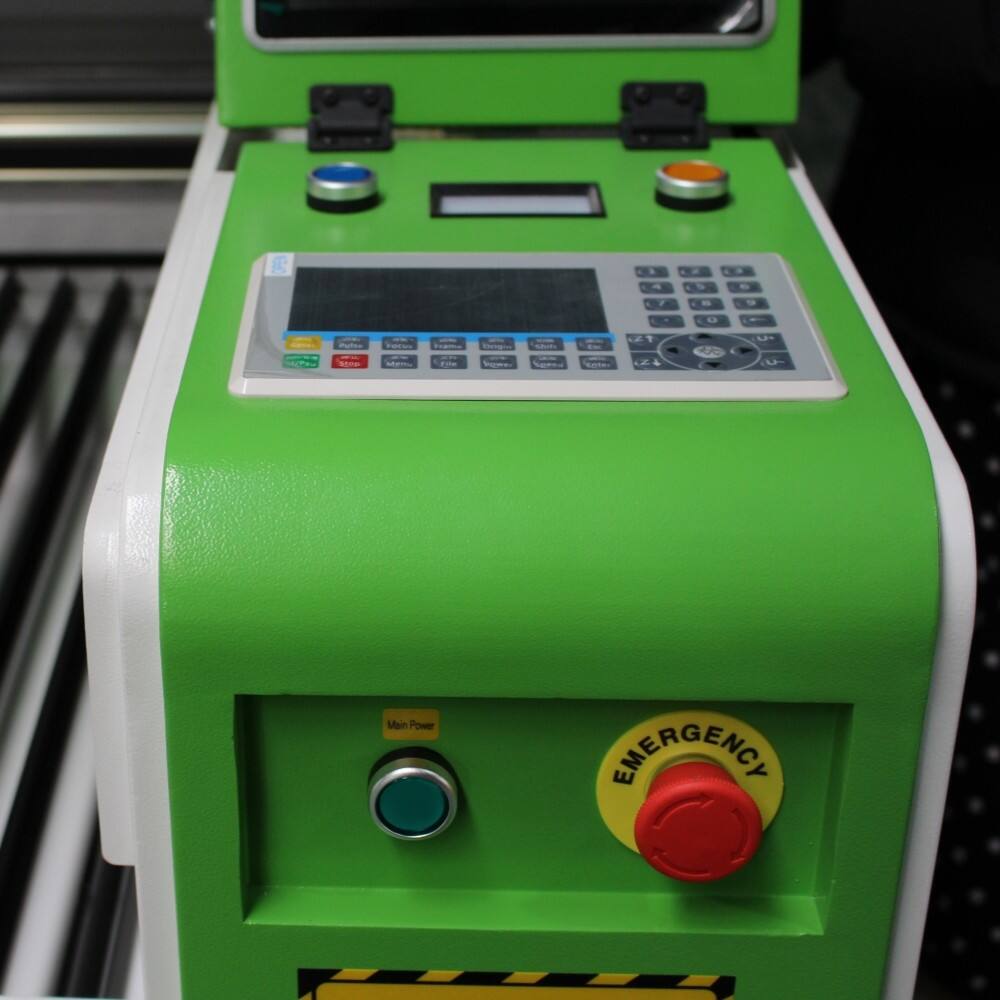

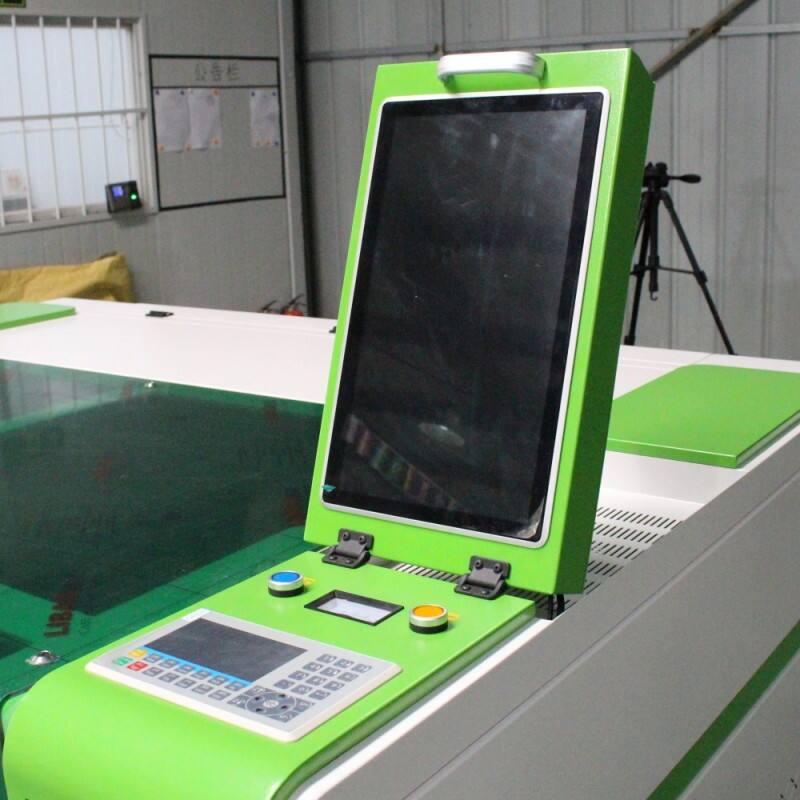

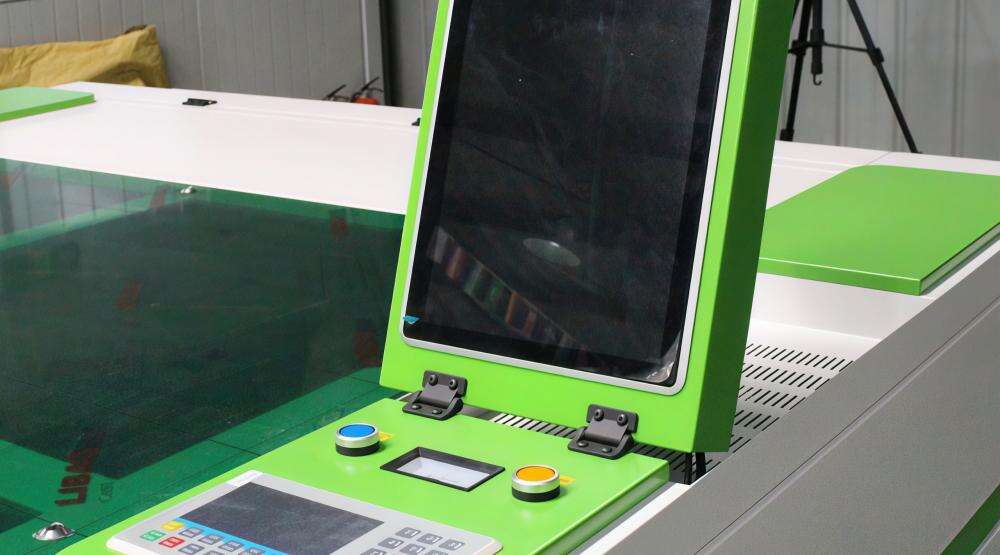

Touch industrial computer Configure touch screen industrial control computer,support wifi communication, can be used directly, no neinstall software, more efficient and convenient, insteadof laptop computers. |
 |
 |
 |

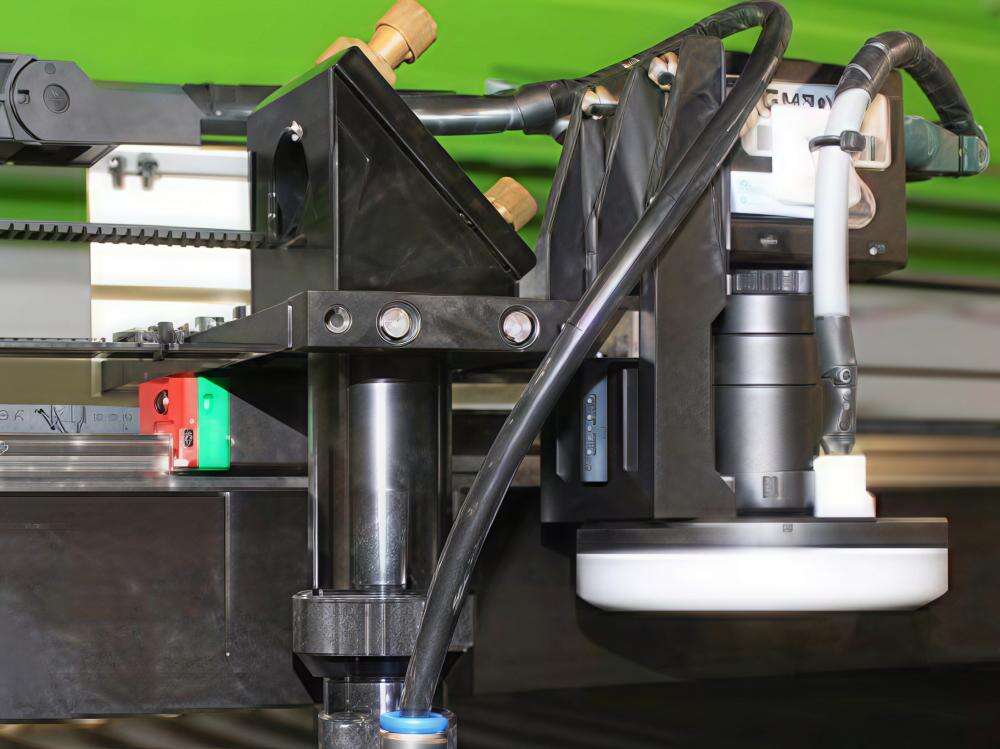

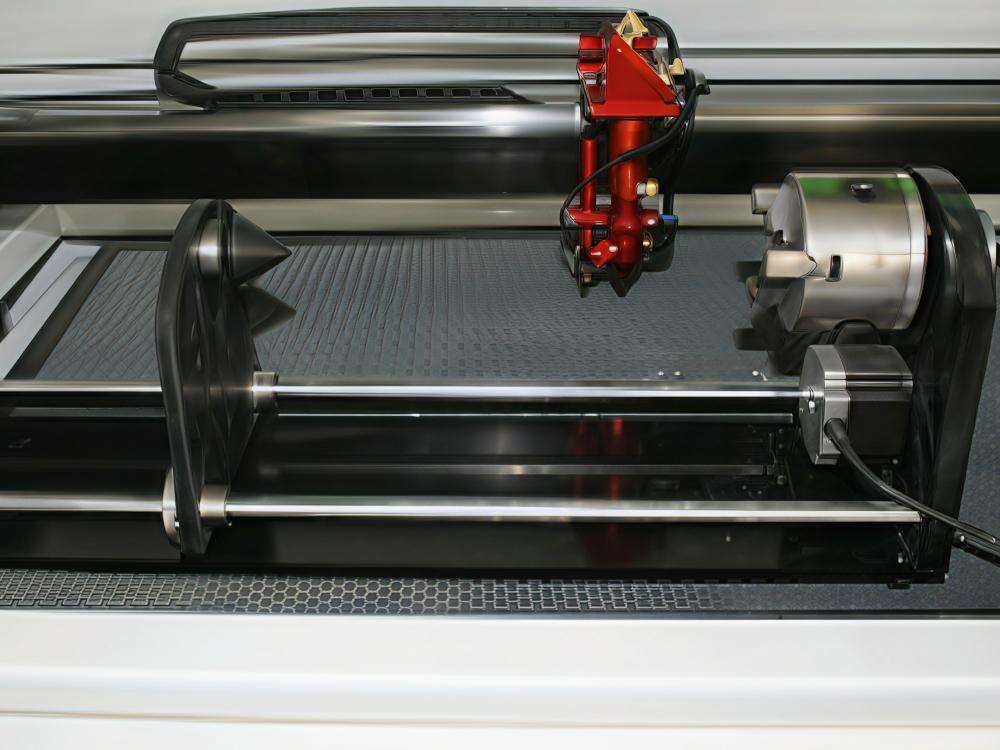

| CCD | Lifting Platform | Rotary |
The machine is equipped with a lifting platform and automatic focus. | ||
Applications
| Material | Cut | Engrave | |
| Acrylic,PP,PET,PC,PMMA,Organic Board,Double Color Plate | √ | √ | |
| Plastic,PP,PET,PC,PMMA,PS,PES,PA,Plastic Foils&Films,Polycarbonate.Polyester or Polyimide Membrane Keyboards | √ | √ | |
| Wood,Bamboo,Veneer,MDF,Blasa Wood,Plywood | √ | √ | |
| Leather,Pig Leather,Cow Leather,Sheep Leather | √ | √ | |
| Textile,Cotton,Silk,Felt,Lace,Synthetic&Technical Textiles,Aramid.Polyester,Fleece | √ | × | |
| Foam&Filter,Mats Polyester(PES),Polyethylene(PE),Polyurethane(PUR) | × | × | |
| Neopren | × | × | |
| Paper,Cardboard,Chipboard,Press Board | √ | √ | |
| Stone,Ceramic,Granite,Marble,Natural stone,Pebble Stone slate | √ | √ | |
|
Rubber Stamps,Synthetic&silicone Rubber,Natural Rubber,Microporous Foam |
× | √ | |
| Silicone Rubber,Synthetic Rubber | √ | √ | |
| Glass,Pressed Glass,Float Glass,CnystalGlass,Mirror Glass | × | √ | |
Why choose us
 |
 |
Logistics & Transportation
 |
 |
 |

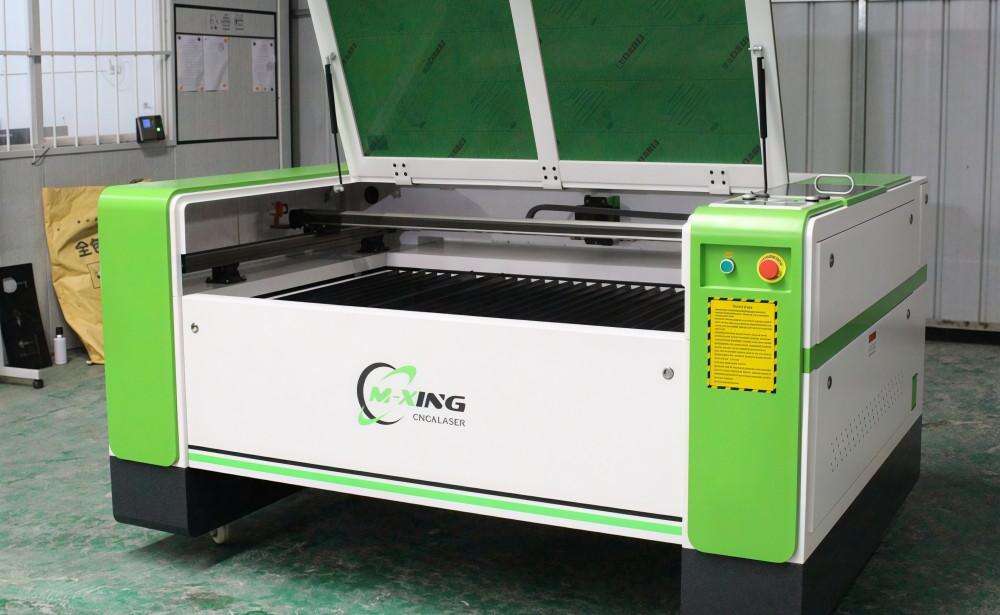

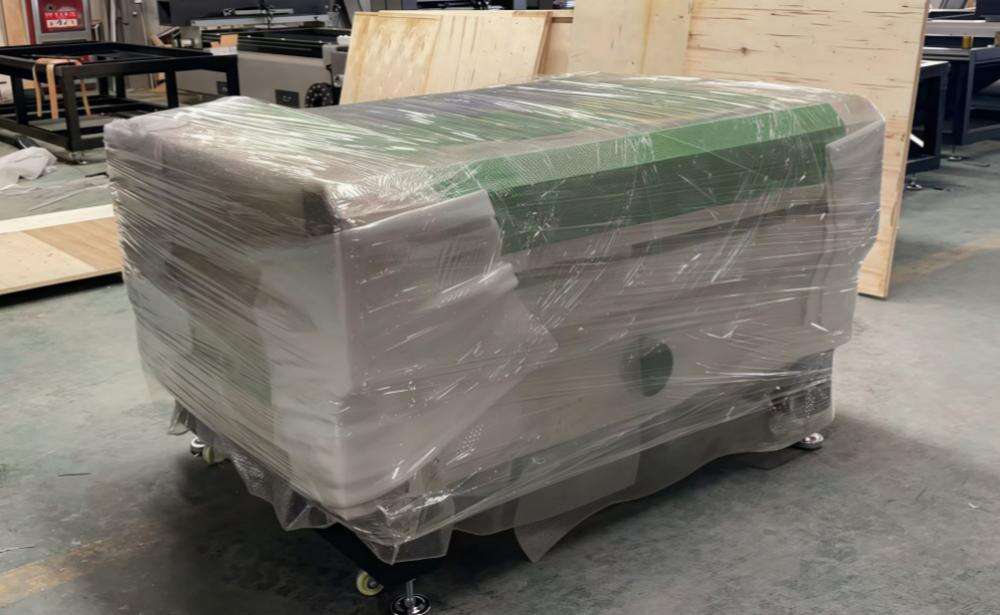

| Machine cleaning and Protective oil processing | Wrapping with protective film | Wooden box sealing |
 |
 |
 |
| Forklift moving goods | Container Loading | Container Sealing and Transportation |
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose?
A1: Just tell us what material you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.
Q2: Who can help me transport the machine?
A2: We can arrange the shippment for you. Just tell us which port is near to you, so that we can check the exactly freight fee and shipping time for you.
Q3: How about your payment terms?
A3: You can transfer 30% or 50% advance payment to us, we start to make the machine for you, and when the machine finish, we will show video or photo to you, you pay the balance payment to us, here we arrange the shippment for you.
Q4: When I got this machine, but I don't know how to use it. What should I do?
A4: We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q5: If some problems happen to this machine during warranty period, what should I do?
A5: We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
