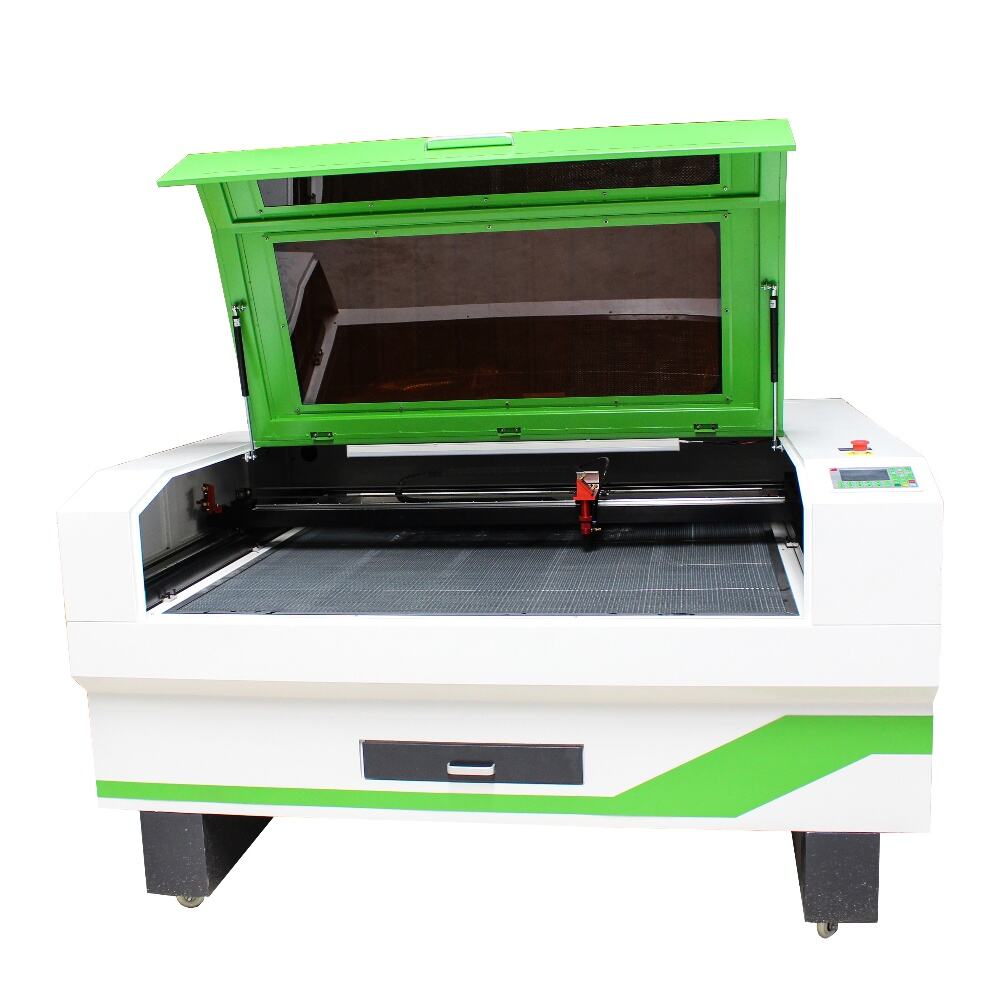

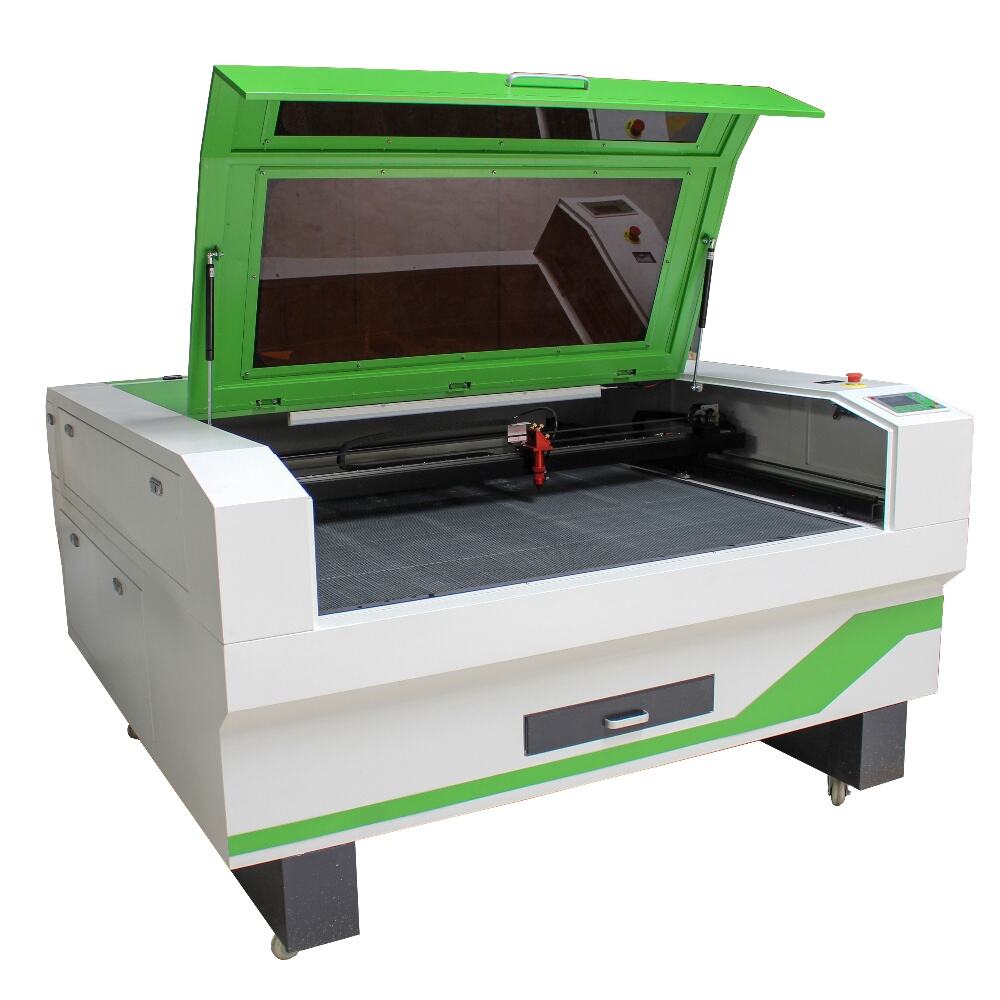

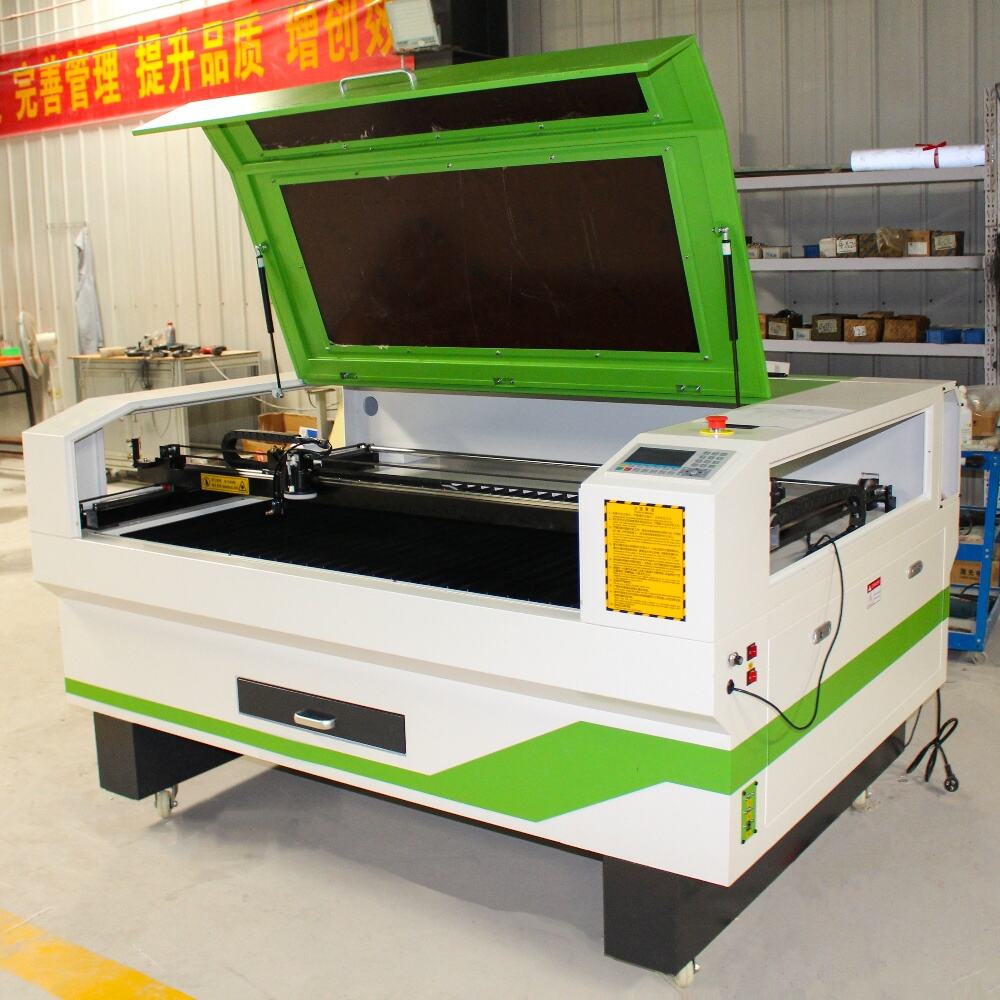

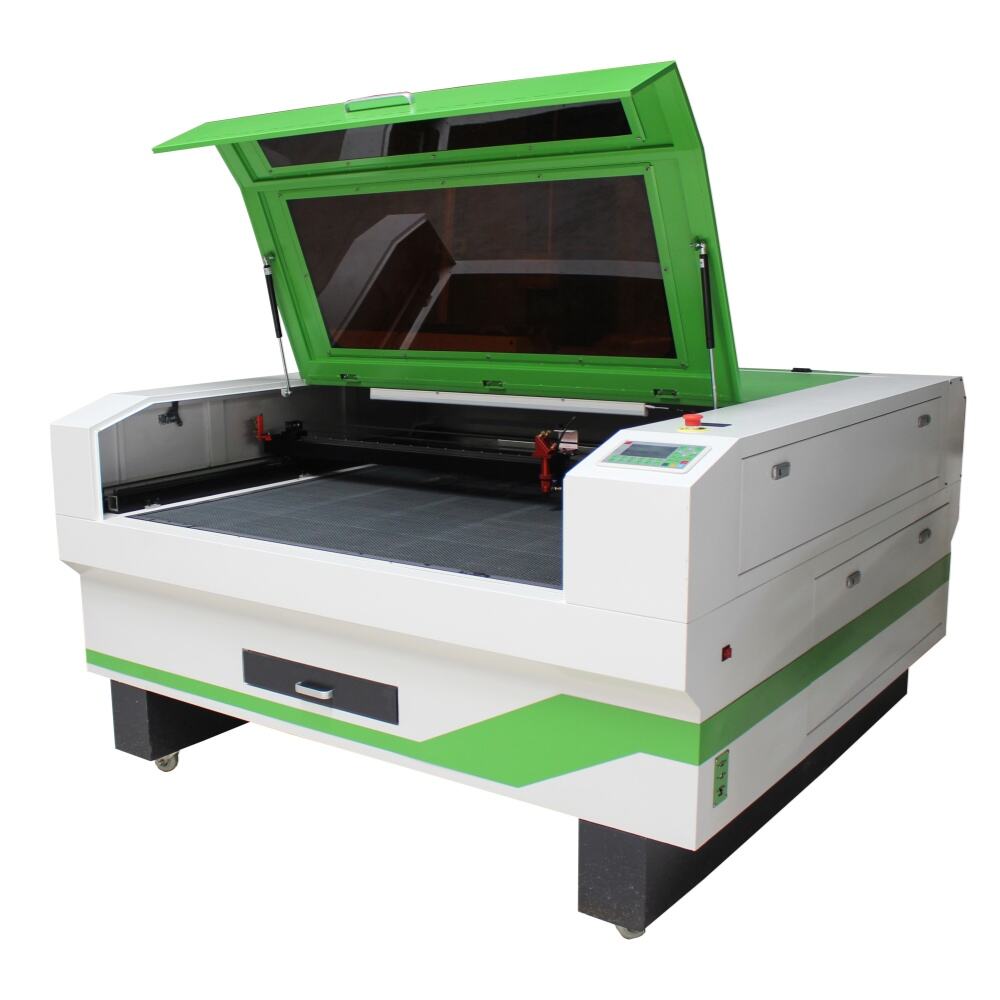

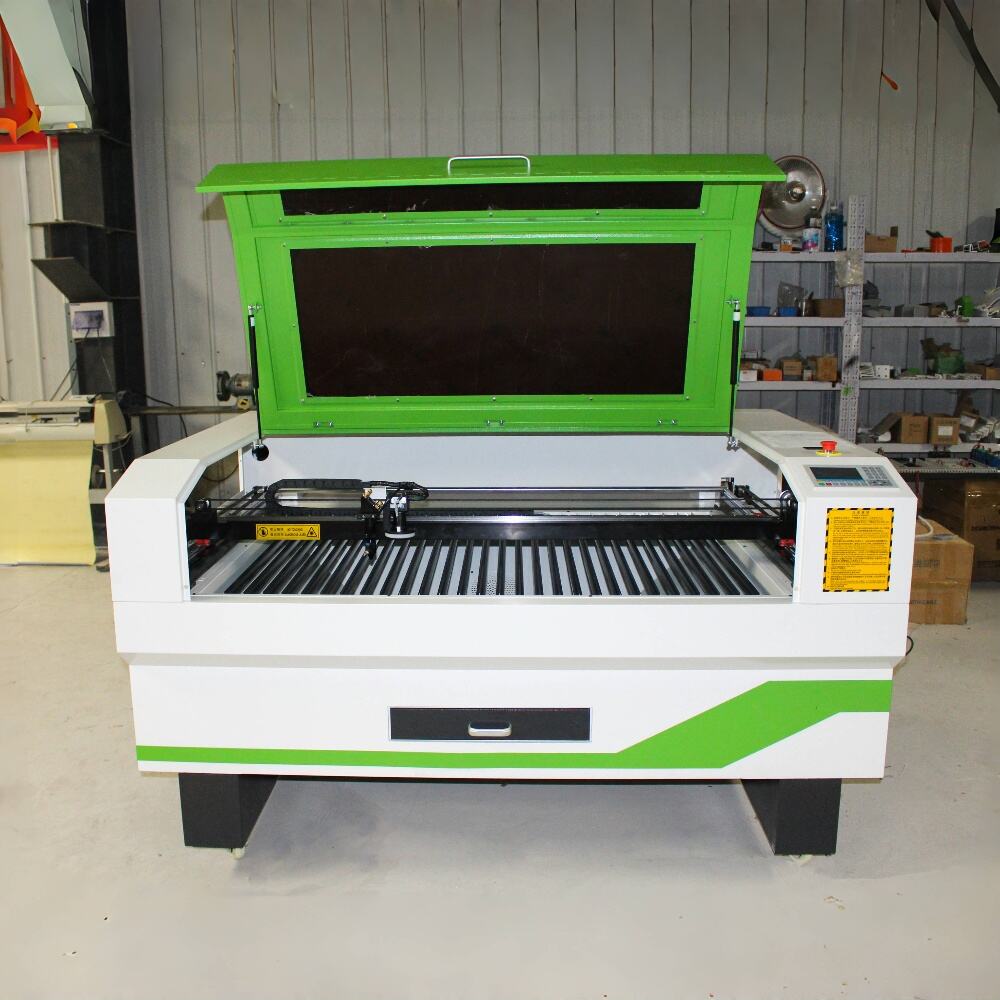

1390 Classic co2 laser cutting engraving machine for Acrylic Wood MDF
Model Number：M1390
Place of Origin：China
Certification: CE FDA
- Overview
- Recommended Products
Description
80w/100w/130w/150w non-metal engrave and cutting solution
Competitive Advantage
functions,widely uesed.
2.Adopt integrated,stable and reliable design framework.
3.All models adopt best components,ensure the high accuracy,faster speed and longer using life.
4.According to process different materials,can optional blade table ,honeycomb table.
5.the materials can through the laser machine front and rear,materials lenths is unlimited.
6.Ruida controlling panel support various languages and clear display,more convenient operation.
7. Combined with the sophisticated technique computer control,precision machinery,USB data transmission and other high-tech.
 |
 |
 |
Specifications
| Name | Parameter |
| Working area | 1300X900mm |
| Laser power | 80w 100w 130w 150w |
| Brand of laser tube | Reci EFR Yongli |
| Red dot point to position origin | YES |
| Guide Rail | Taiwan |
| Drive | Leadshine |
| Motor | Stepper motor |
| Cooling system | Water chiller |
| Control system | Ruida 6445s |
| Control software | RD works V8 |
| Graphic format supported | BMP, PLT, DST, DXF, AI, JPG, GIF, PGN, TIF |
| Exhausted fan | 550w |
| Lens and reflect mirrors | mirrors and lens: 3 reflection mirror and 1 lens |
| Voltage | 220v/50hz or 110v/60hz |
| Engraving speed/cutting speed | 60000mm/s/36000mm/s |
| Machine size | 1800*1400*1070mm |
| Packing size | 2000*1600*1200mm |
| NW/GW | 350kg/400kg |
Technical Details
 |
 |
 |

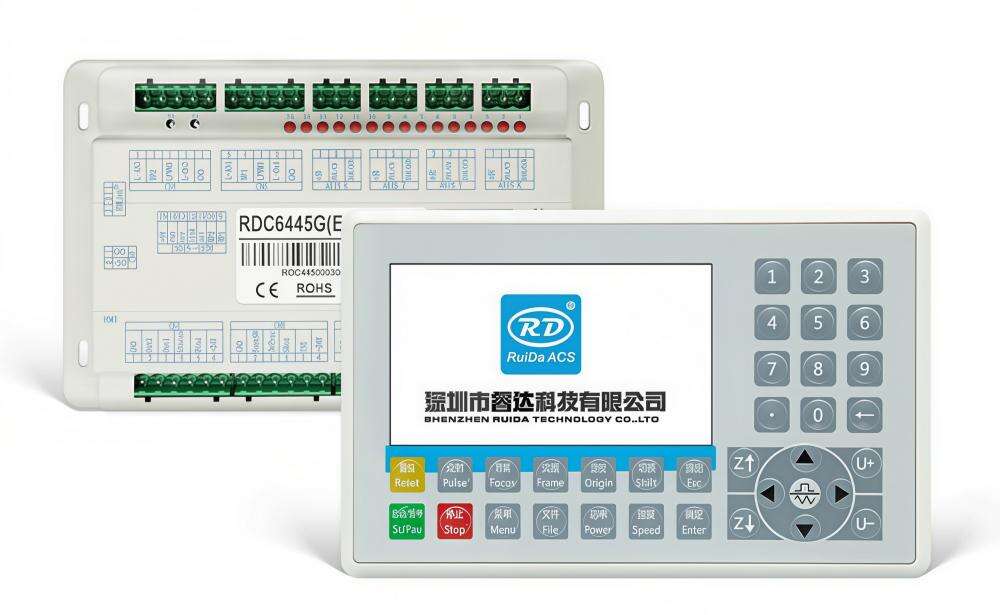

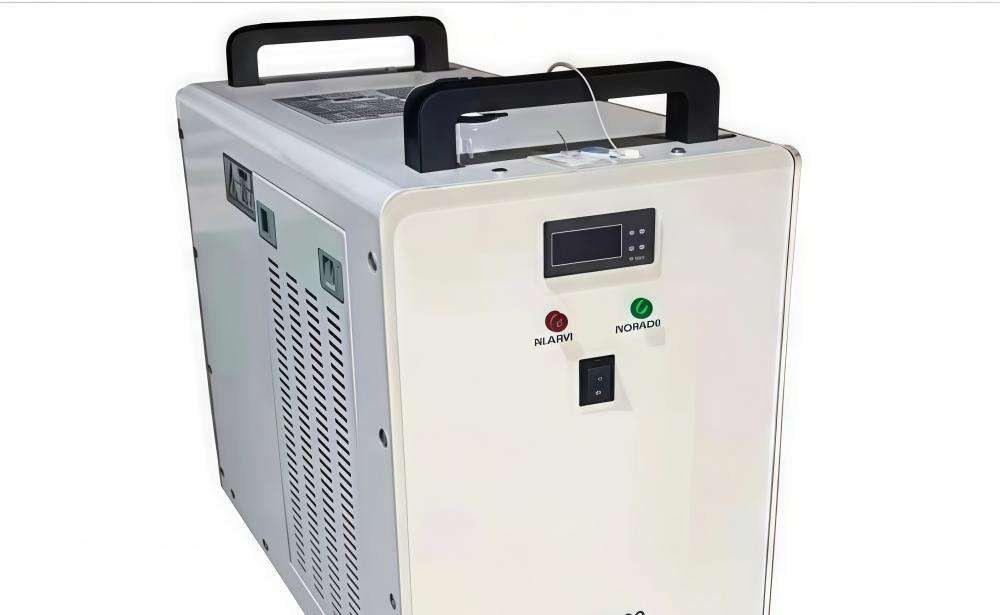

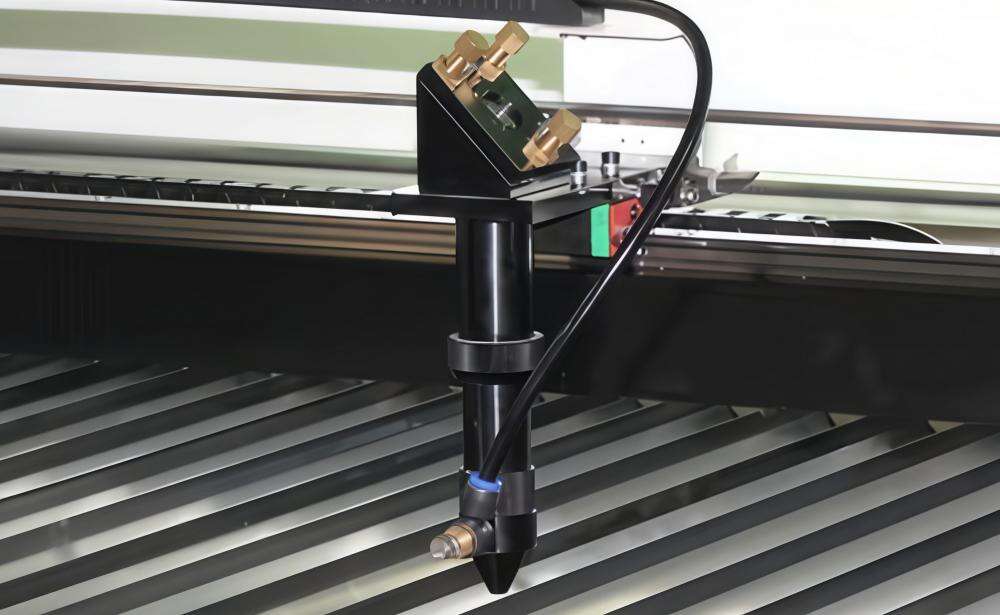

| Control System | Water chiller | Laser Head |
 |
 |

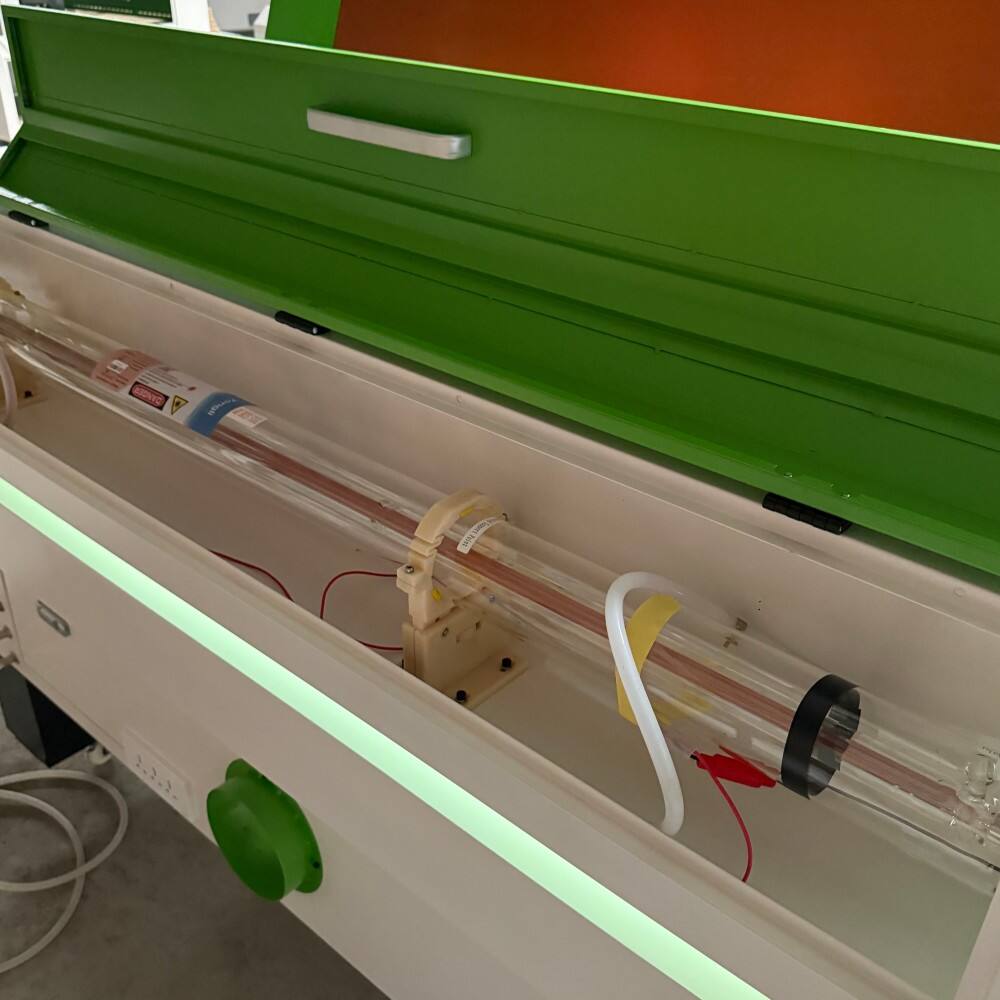

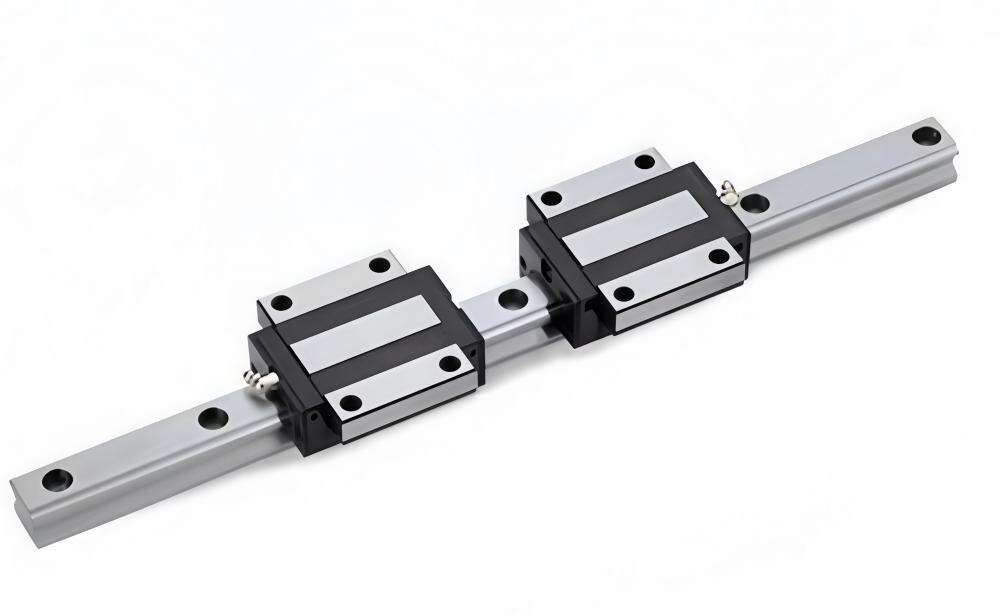

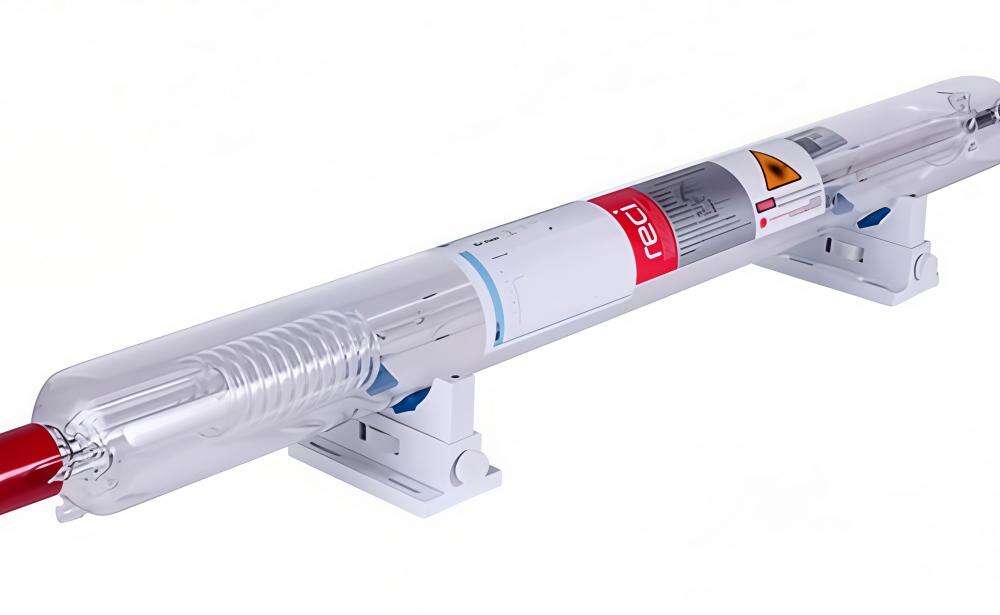

| Guide Rail | Laser Tube |
Applications
| Material | Cut | Engrave | |
| Acrylic,PP,PET,PC,PMMA,Organic Board,Double Color Plate | √ | √ | |
| Plastic,PP,PET,PC,PMMA,PS,PES,PA,Plastic Foils&Films,Polycarbonate.Polyester or Polyimide Membrane Keyboards | √ | √ | |
| Wood,Bamboo,Veneer,MDF,Blasa Wood,Plywood | √ | √ | |
| Leather,Pig Leather,Cow Leather,Sheep Leather | √ | √ | |
| Textile,Cotton,Silk,Felt,Lace,Synthetic&Technical Textiles,Aramid.Polyester,Fleece | √ | × | |
| Foam&Filter,Mats Polyester(PES),Polyethylene(PE),Polyurethane(PUR) | × | × | |
| Neopren | × | × | |
| Paper,Cardboard,Chipboard,Press Board | √ | √ | |
| Stone,Ceramic,Granite,Marble,Natural stone,Pebble Stone slate | √ | √ | |
|
Rubber Stamps,Synthetic&silicone Rubber,Natural Rubber,Microporous Foam |
× | √ | |
| Silicone Rubber,Synthetic Rubber | √ | √ | |
| Glass,Pressed Glass,Float Glass,CnystalGlass,Mirror Glass | × | √ | |
Why choose us
 |
 |
Logistics & Transportation
 |
 |
 |
| Machine cleaning and Protective oil processing | Wrapping with protective film | Wooden box sealing |
 |
 |
 |
| Forklift moving goods | Container Loading | Container Sealing and Transportation |
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose?
A1: Just tell us what material you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.
Q2: Who can help me transport the machine?
A2: We can arrange the shippment for you. Just tell us which port is near to you, so that we can check the exactly freight fee and shipping time for you.
Q3: How about your payment terms?
A3: You can transfer 30% or 50% advance payment to us, we start to make the machine for you, and when the machine finish, we will show video or photo to you, you pay the balance payment to us, here we arrange the shippment for you.
Q4: When I got this machine, but I don't know how to use it. What should I do?
A4: We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q5: If some problems happen to this machine during warranty period, what should I do?
A5: We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
