T series cutting machine

Brand name：Mingxing
Model Number：T series cutting machine
Place of Origin：China
Certification: CE FDA

Overview
Recommended Products

Description

This series features a compact design and versatile functionality, capable of processing small-sized colored boxes, stickers, cardstock, gaskets, PVC films, and other flexible materials.

Competitive Advantage

Product Introduction

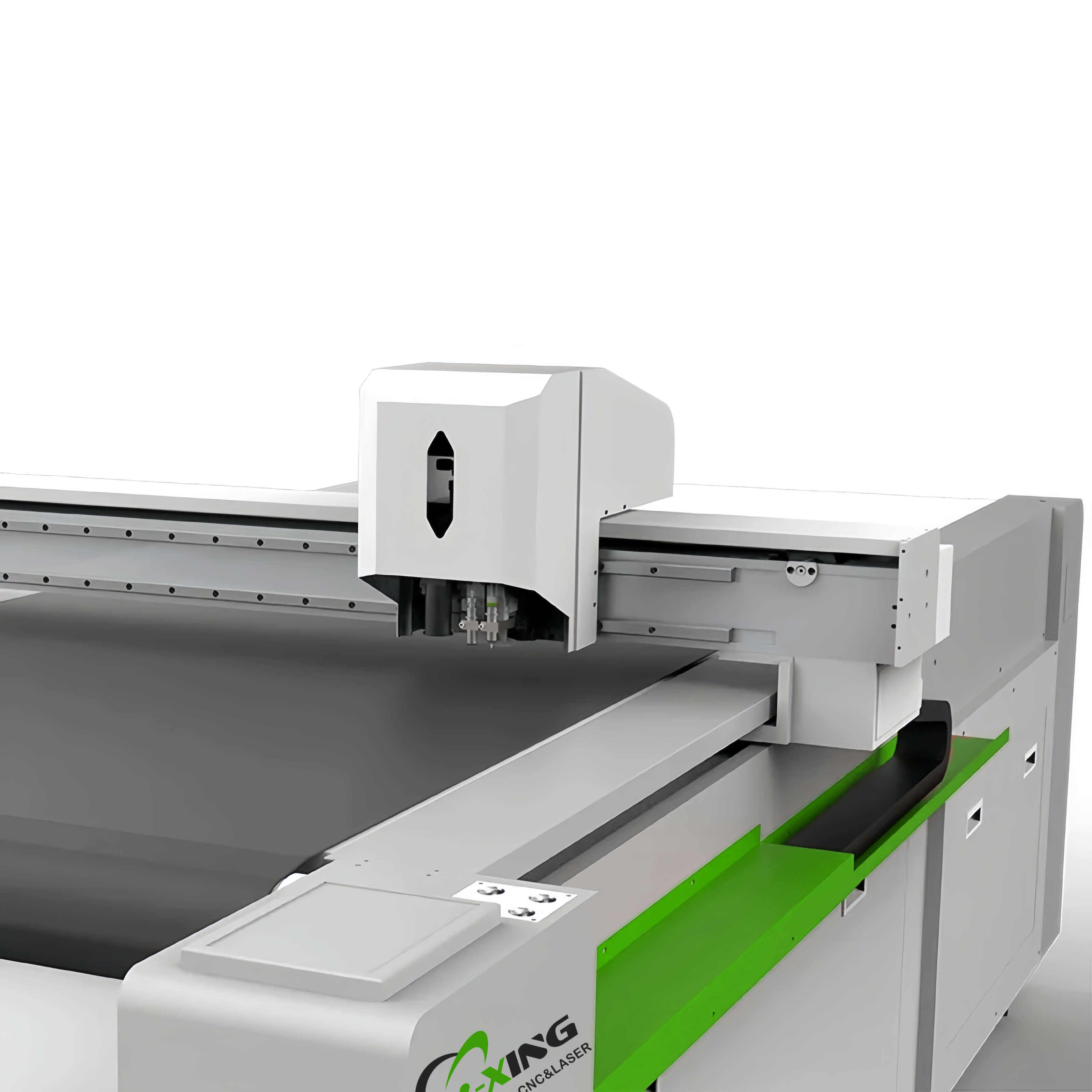

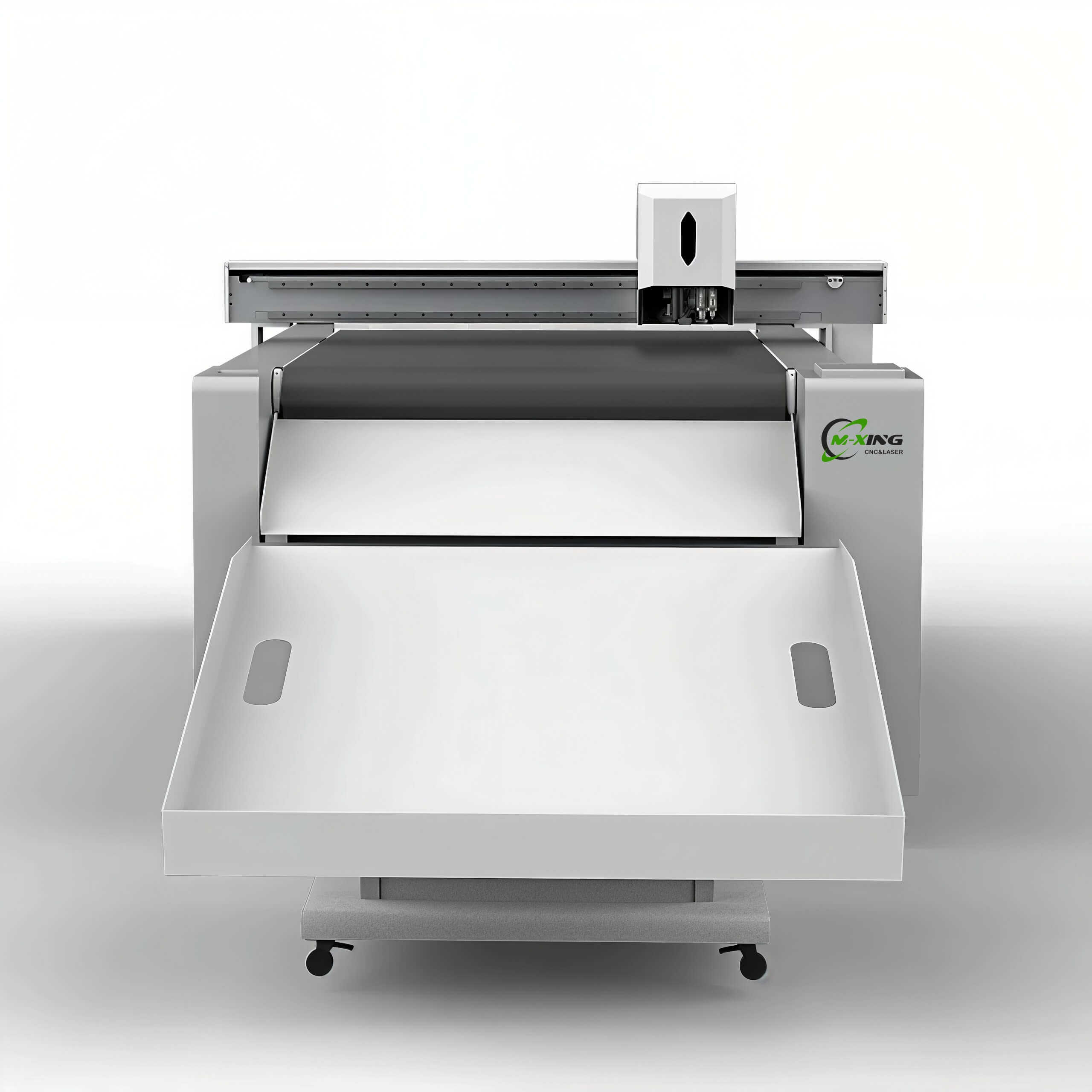

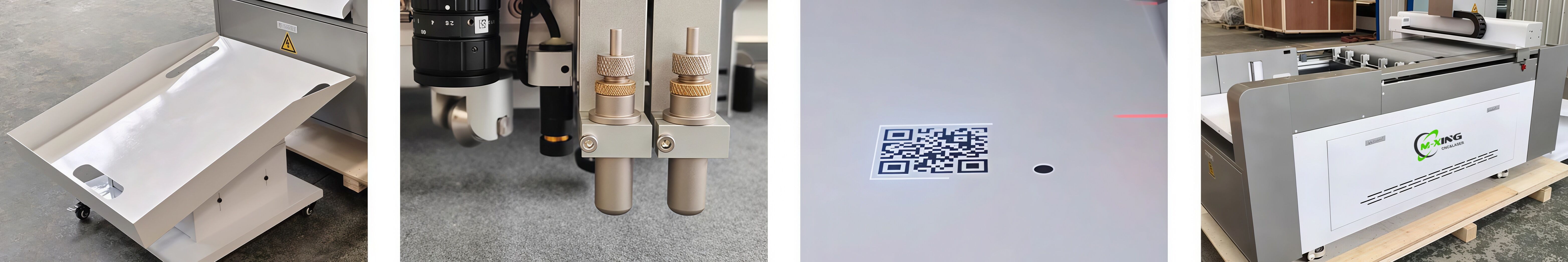

The T-Series machines are equipped with vibration knives, drag knives, pressure wheels, red laser positioning, and CCD cameras, with optional accessories such as half-cut blades and drawing pens. Featuring automatic material feeding and a more compact design compared to conventional vibration knife cutting machines, they are easier to transport and install. Utilizing the CCD camera, these machines can identify patterns for precision cutting of printed packaging materials or processing sticker designs. Additionally, the vibration knife enables efficient cutting of small-sized items like gaskets, cardboard, PVC films, and similar materials.

Specifications

model	4060	6080	0912
max cutting area	400*600mm	600*800mm	900*1200mm
tools group	oscillating knife, drag knife, half cutting knife, creasing wheel, CCD camera
max cutting speed	1500mm/s (according to the material)
cutting thickness	≤5mm
positioning accuracy	±0.05mm
profile format	dxf, plt, ai, pdf
transmission method	ethernet port
rated power	2.5KW

Technical Details

Core Technologies and Product Features

Digitalization & Intelligent Processing
Enabling computer-aided design, automatic nesting, and direct data import for cutting. This reduces production cycles by up to 30% and improves material utilization. Equipped with a CCD vision positioning system, the machines achieve cutting accuracy within ±0.5mm, ideal for high-precision complex patterns like advertising signs and lightbox stickers.

Multi-Process Integration & Eco-Friendly Efficiency
A single machine integrates cutting, punching, scoring, and marking operations. For example, in lightbox production, it can simultaneously cut acrylic panels and punch mounting holes, streamlining workflows. Compared to traditional methods, intelligent nesting minimizes material waste, while the smoke- and odor-free cutting process meets environmental standards, making it suitable for indoor production.

Wide Material Compatibility
The machines adapt to diverse advertising materials, including KT boards, acrylic sheets, PVC foam boards, car decals, adhesive films, fabrics, and leather.


FAQ

Q1: What materials can this machine process?
A: wood, acrylic (≤20mm), leather, glass, plastics. Non-reflective materials recommended for optimal safety.

Q2: Is training included?
A: Yes! We provide:
1-day online operation training
2000+ material parameter database preloaded
24/7 technical support via TeamViewer

Q3: What’s the advantage of magnetic levitation vs traditional rails?
A:40% faster speed

Q4: Can it work 24/7 for mass production?
A: Yes. Certified for continuous operation with:
Laser source lifespan ≥80,00 hours

Q5: Do you support sample processing?
A: Free sample cutting/engraving! Send your design file (DXF/AI) and material specs. We’ll return results within 48hrs.

Q6: How about warranty?
A:1-year warranty for laser source & motion system
