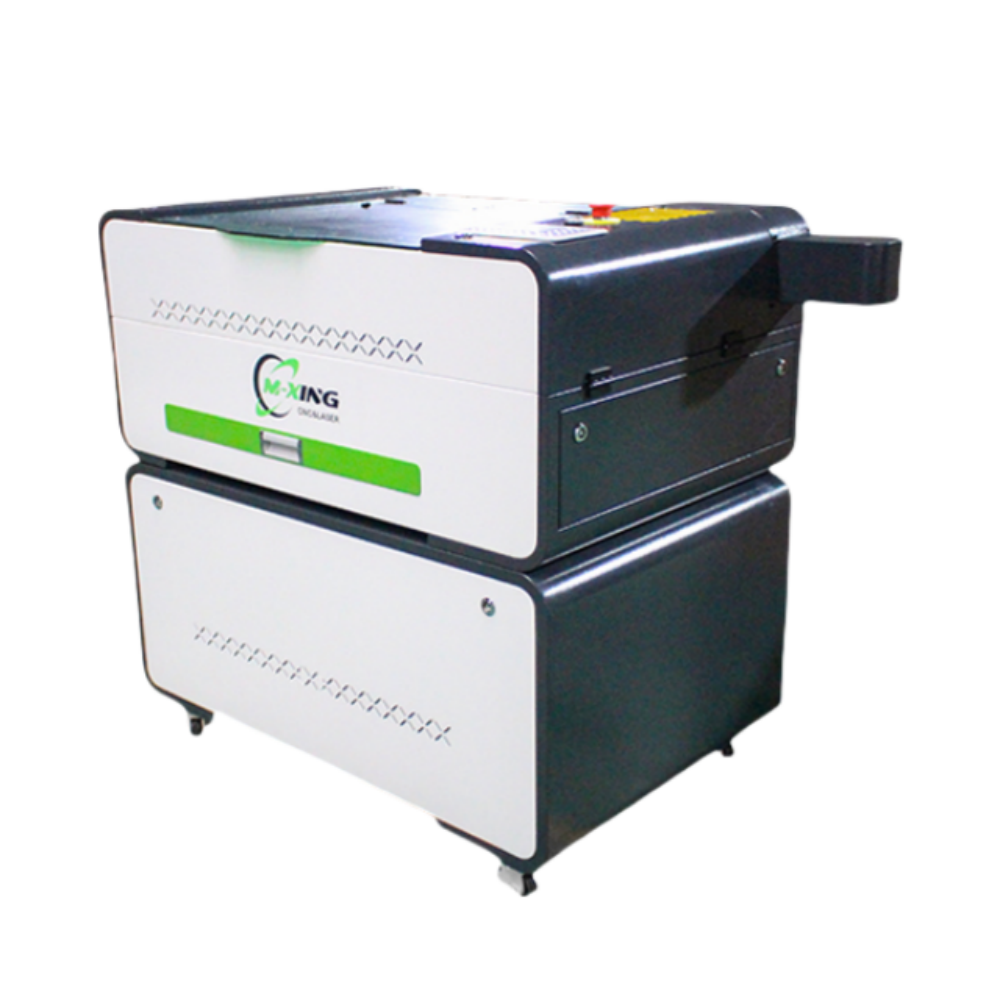

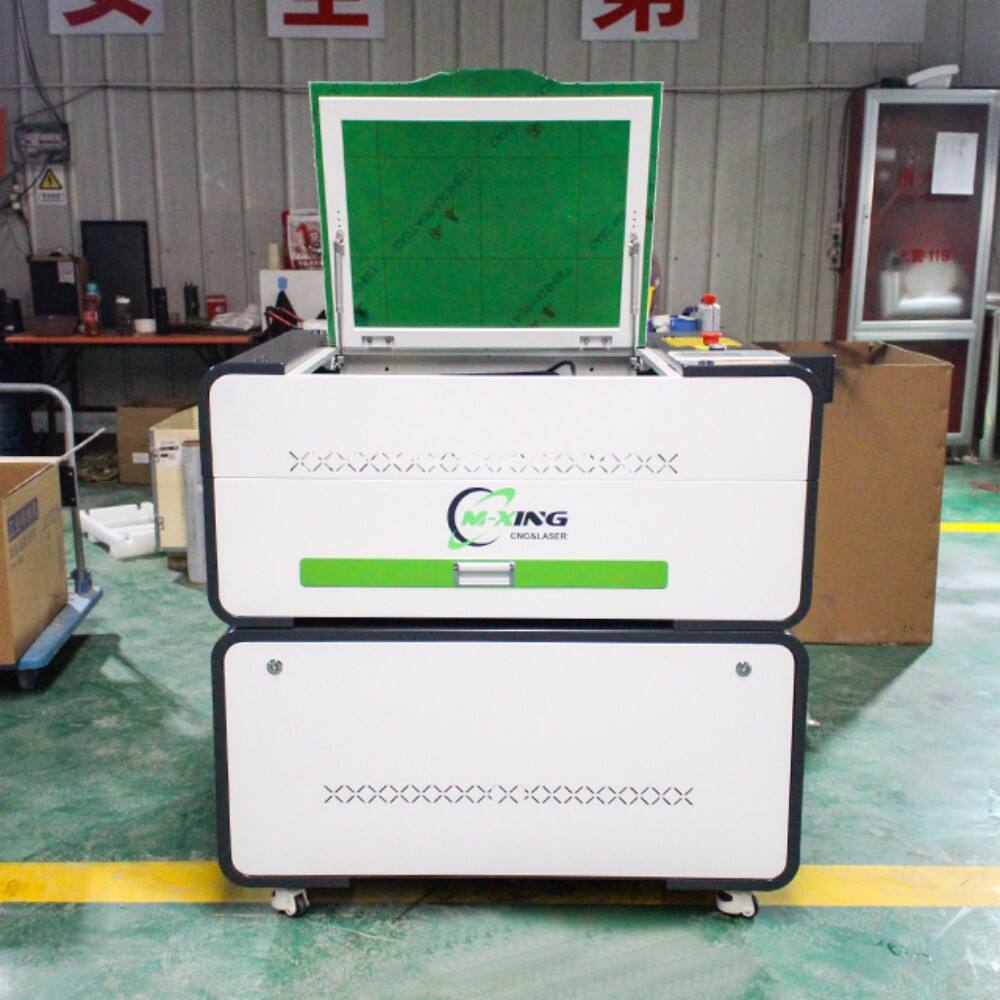

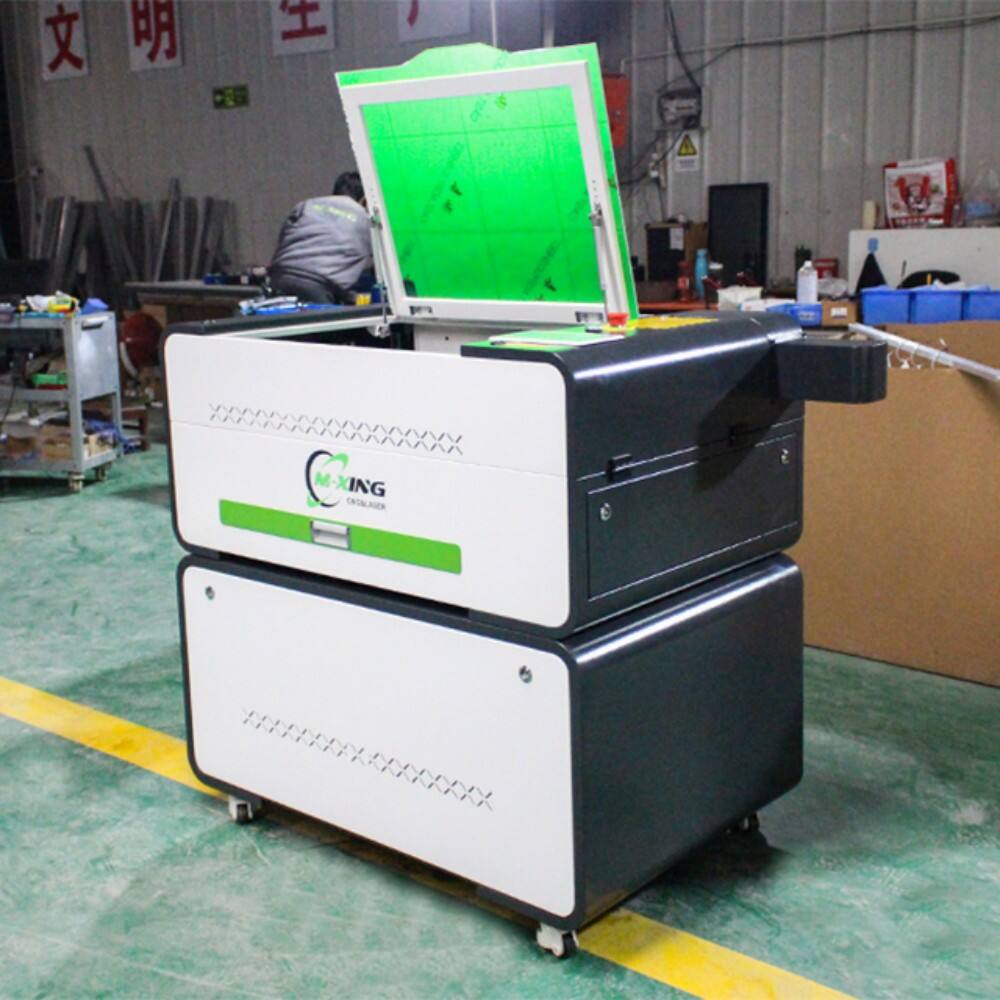

4060 co2 laser cutting engraving machine for Cutting Non-metal Materials
Model Number：MX4060
Place of Origin：China
Certification: CE FDA
- Overview
- Recommended Products
- 12-hour rapid pre-sales response and free consultation.
- We can provide any type of technical support to users.
- Free sample production is available. Videos and images are provided.
- We offer advanced solution design for all distributors and users.
- One-year warranty.
- If you have any questions, our technicians can provide remote guidance online.
- We will supply consumables at agent prices.
- 24-hour online service and free technical support.
- The machine has been tested before leaving the factory, and the operation panel is included in the shipment. Please let me know if you have any further questions.
- We have manuals and CD/USB drives for software installation, operation, and machine use and maintenance.
- If parts are damaged during transportation, we can provide new parts.
Description
60w /80w non-metal CO2 laser engraving cutting solution
Competitive Advantage
2.High precision slider group transmission structure, improve the motion performance and accuracy of the machine,enclosed beam make the traction of the machine more uniform, higher stability, dust-proof and noise-free.
3.Standard configuration up and down motorised table, auto focus, complete functions, can be put rotary axis.
 |
 |
 |
Specifications
| Product Model | MX-4060 |
| Laser power | Yomngli HI |
| Laser type | CO2 enclosed glass tube laser, water-cooled, 10.6um |
| Effective width | 400×600mm |
| Engraving scanning speed | 0-60000mm/min |
| Cutting speed | 0-30,000mm/min |
| Laser energy control | 1-100% manual and software settings |
| Positioning accuracy | ≤±0.01mm |
| Voltage | 220v/50hz |
| Drive | Stepper motor |
| Working table | Blade table |
| Cooling system | CW3200 water chiller |
| Graphic format supported | AI / PLT/ CDR / DXF / BMP / JPG / PNG etc. |
| Red dot point to position origin | Yes |
| Auto focus and Motorized table | Yes |
| Guide Rail | X-axis square rail, y-rail widened belt |
Technical Details
 |
 |
 |
 |
|

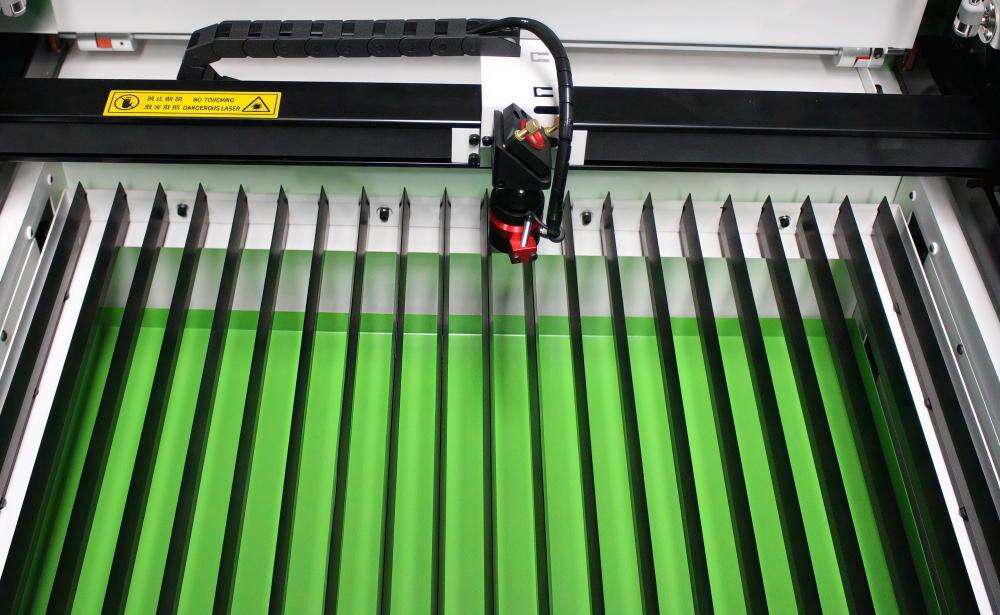

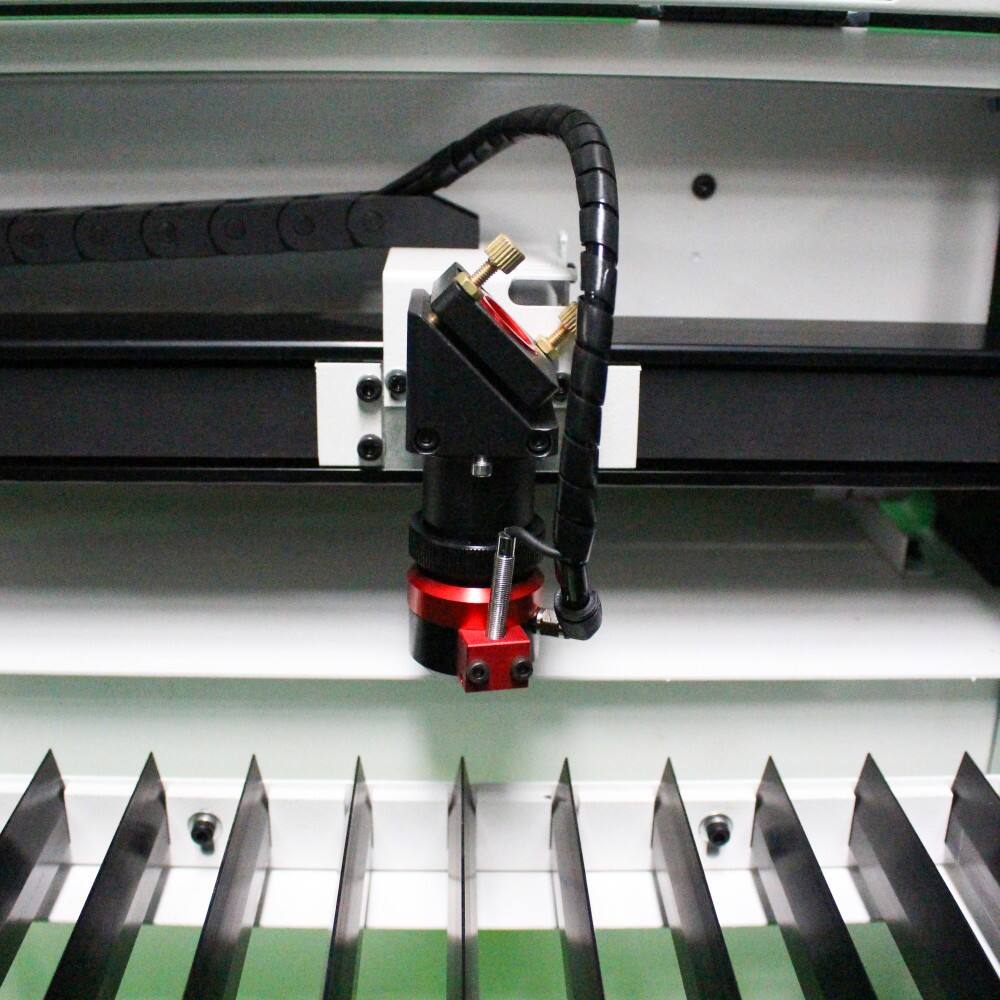

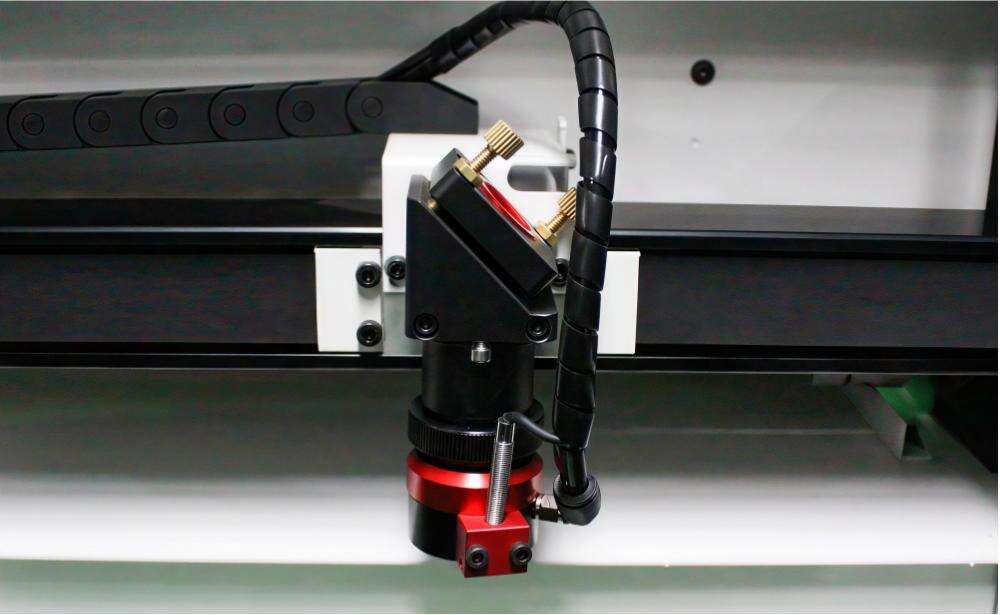

Laser head Special laser head with red light and autofocus function, reliable performance and highengraving accuracy, covenient and quick infinding engraving and cutting position. |

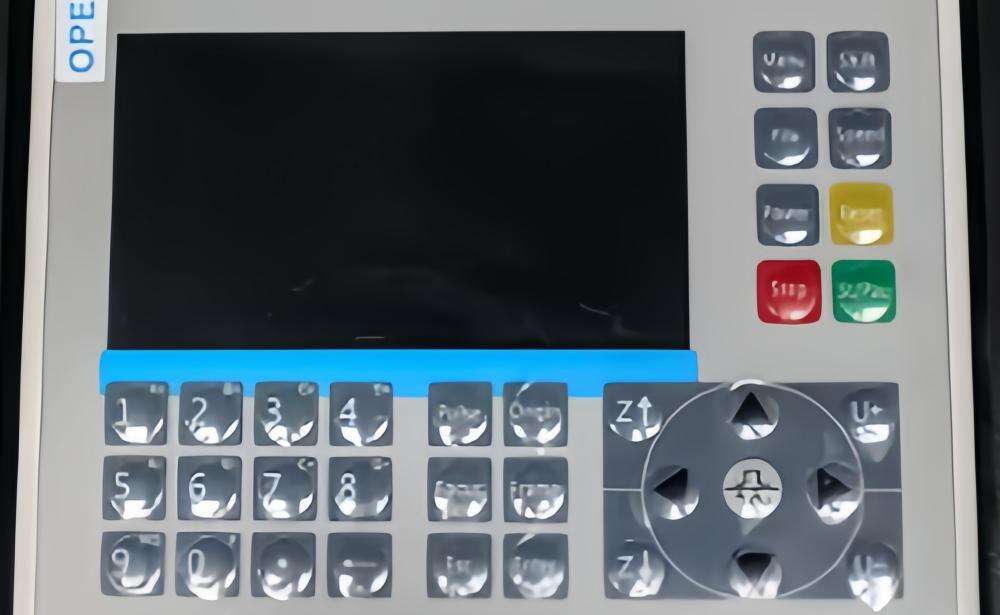

Control System Ruida control, with multi-language (English,French, Spanish, and more languages updating)available, which is more intuitive, simple andmore convenient. |

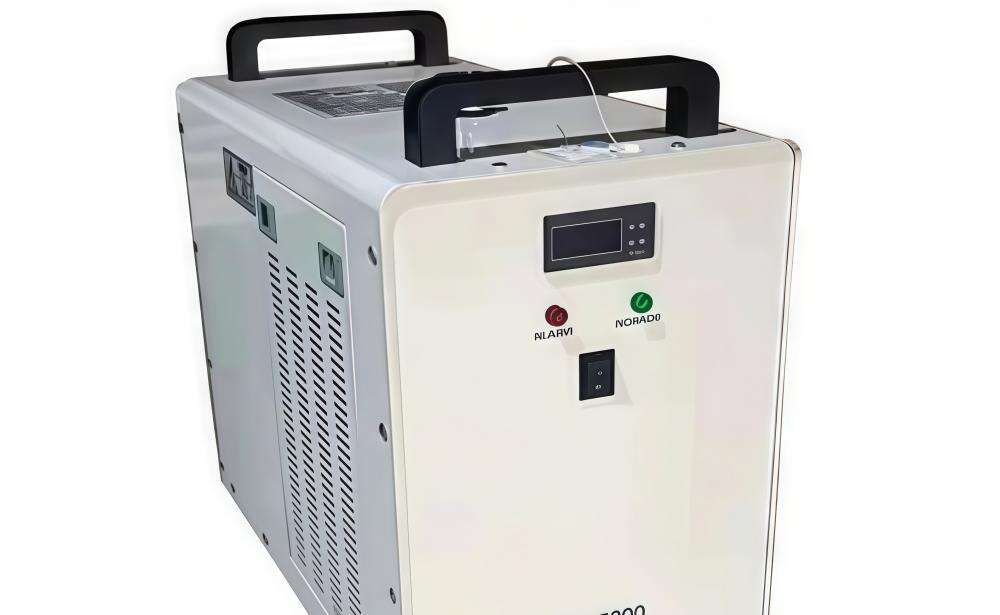

Water chiller The cooling recycle system is selected waterciller for cooling the laser source and cansuresthe machines working efficiently. Constant temperature water cooling system, warning system, ensure laser to work consecutively andsafety, prolong lifetime of laser tube. |
Lifting Platform Ball screw, high smoothness, high stability,low noise |
 |
 |
 |
|

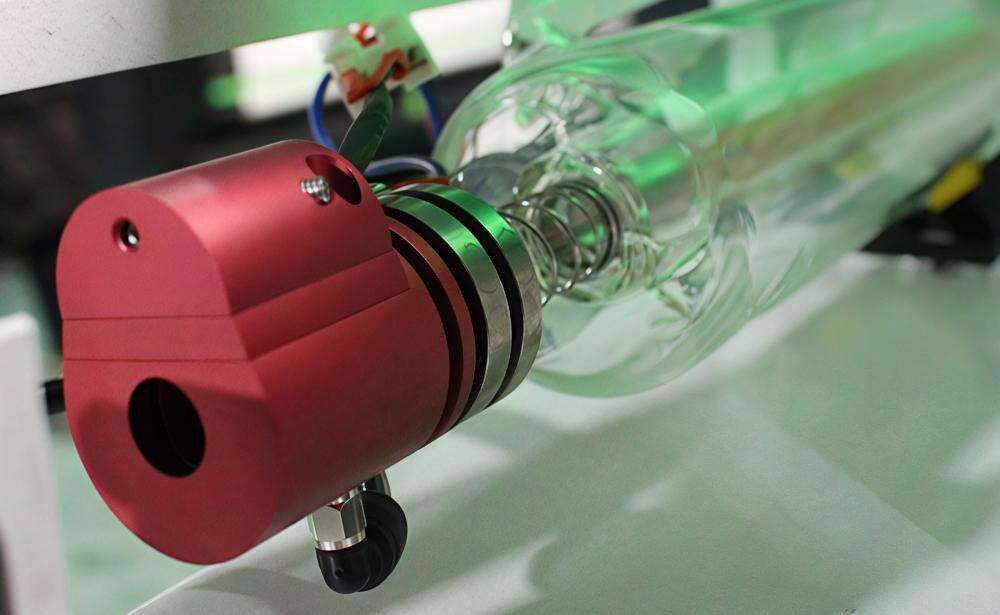

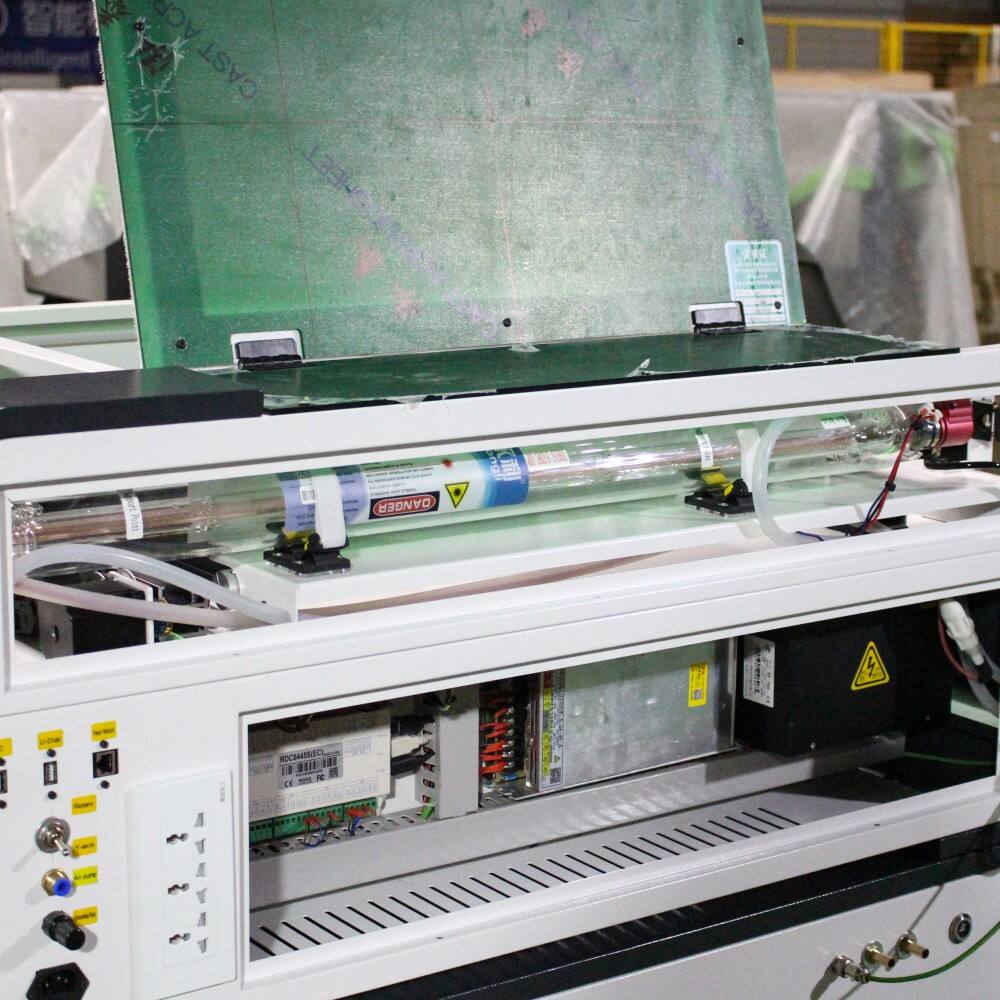

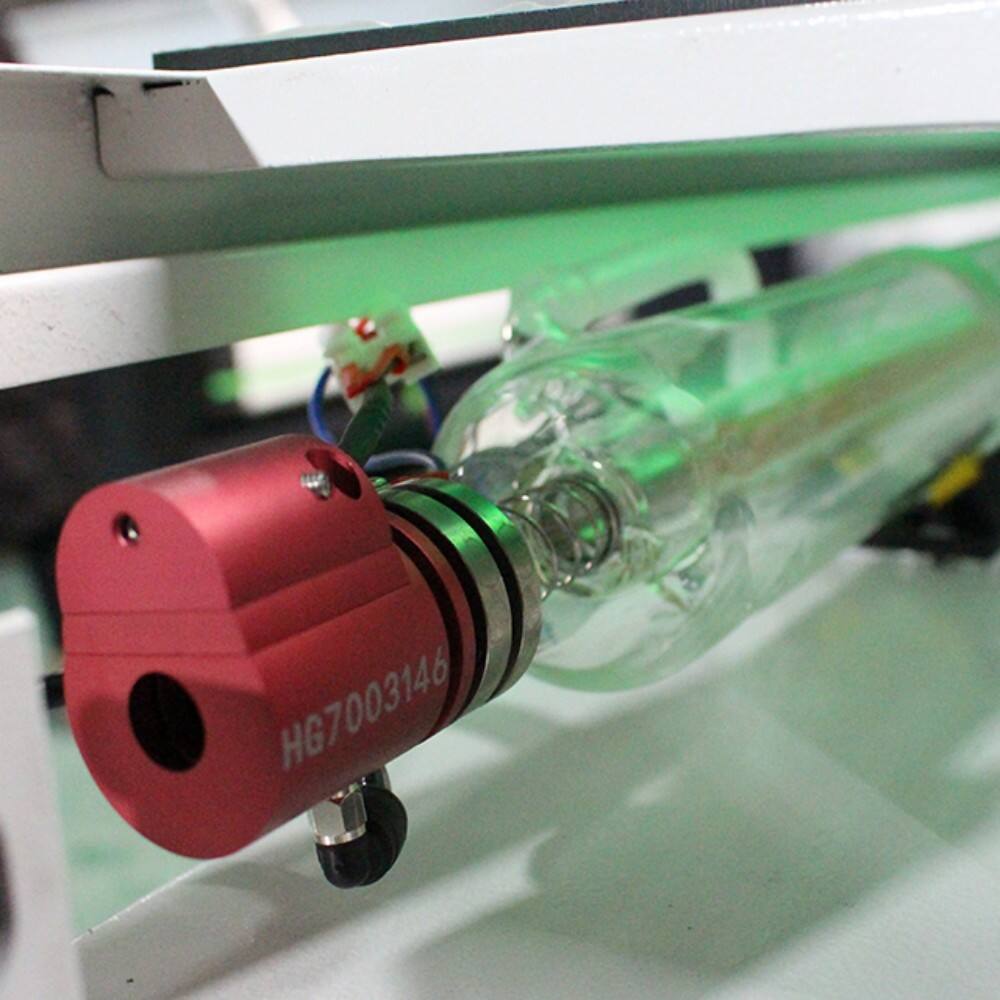

Laser tube Yongli laser tube, global warranty.Optional: EFR, Reci laser tube |

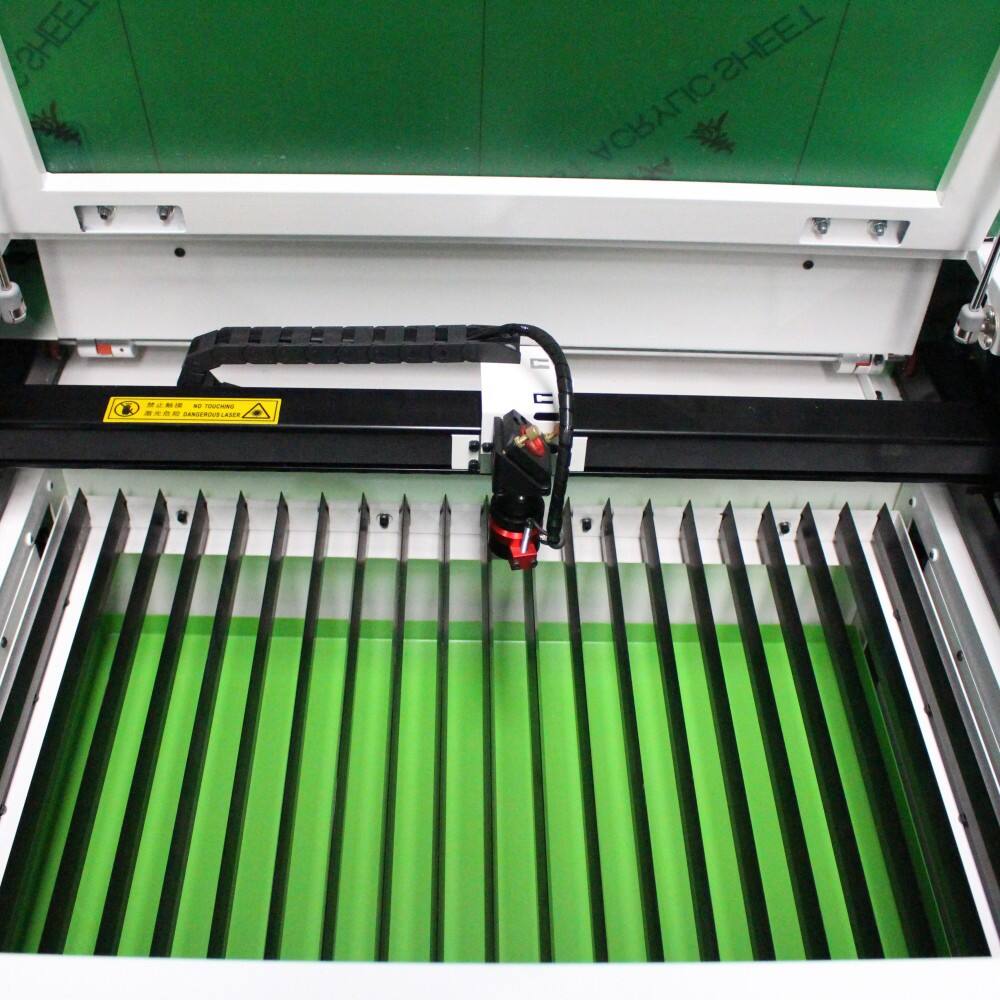

Blade table Mini worKing area 400*600mm, suitable forcutting and engraving, making DIY |

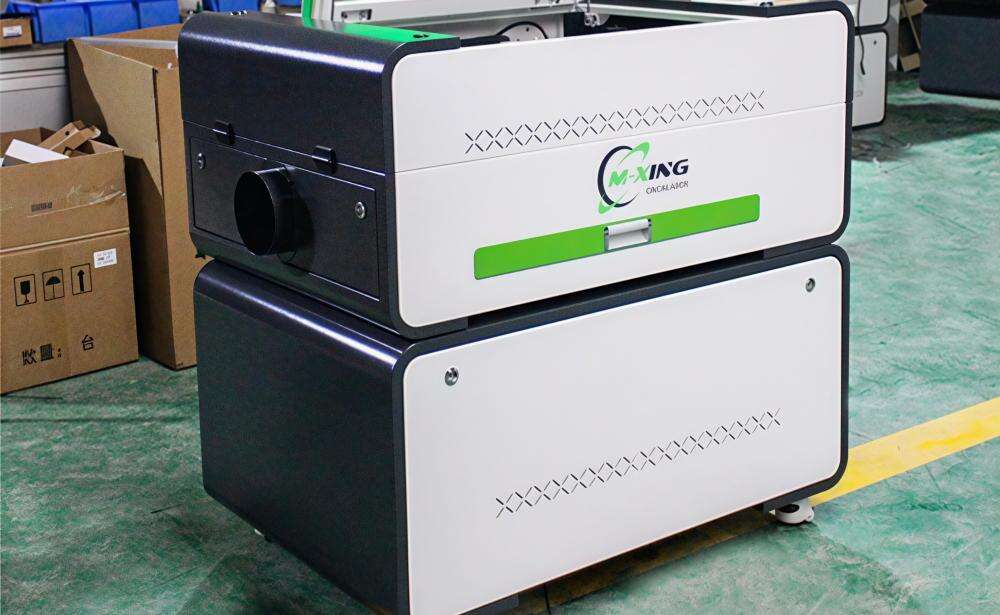

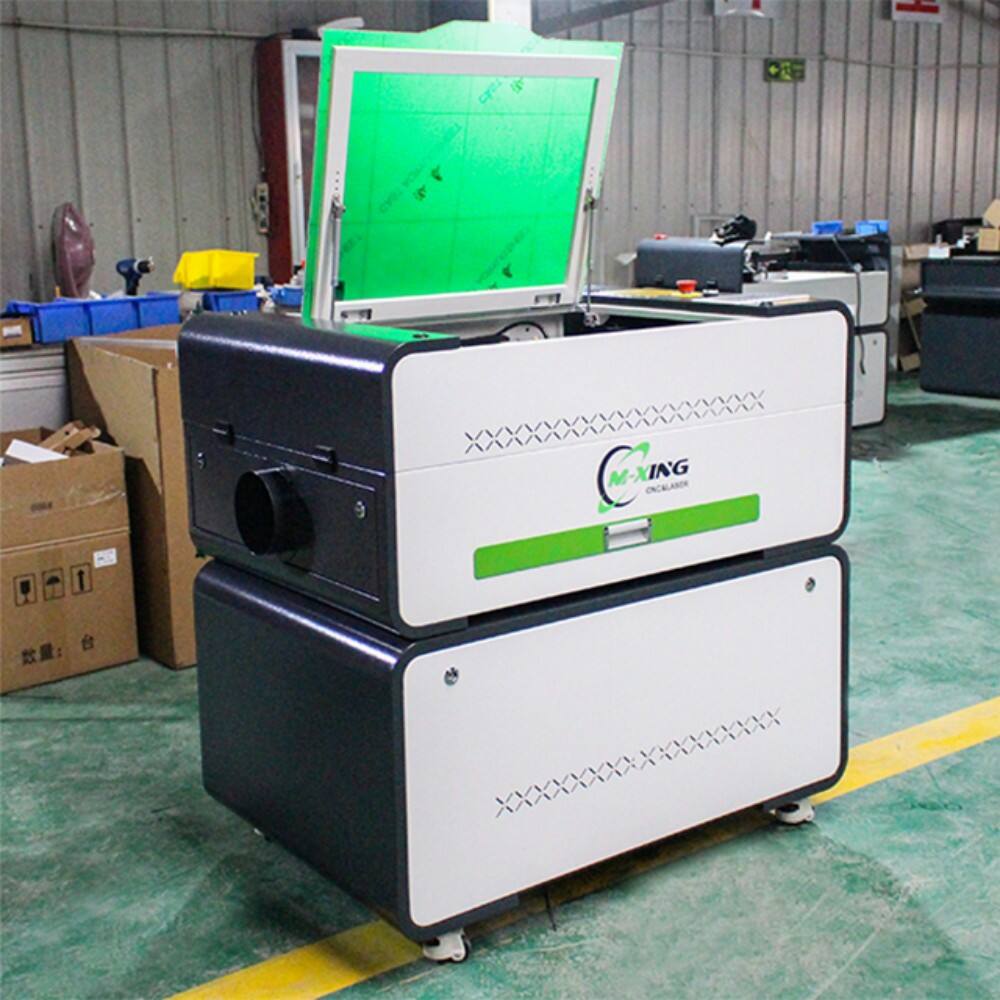

Cabinet Structure The 4060 laser scanner, paired with a cabinet, achieves centralized storage, compact space, and dust and moisture protection. |
Applications
| Material | Cut | Engrave |
| Acrylic,PP,PET,PC,PMMA,Organic Board,Double Color Plate | √ | √ |
| Plastic, PP, PET, PC, PMMA, PS, PES, PA, Plastic Foils&Films, Polycarbonate.Polyester or Polyimide Membrane Keyboards | √ | √ |
| Wood, Bamboo, Veneer, MDF, Blasa Wood, Plywood | √ | √ |
| Leather, Pig Leather, Cow Leather, Sheep Leather | √ | √ |
| Textile, Cotton, Silk, Felt, Lace, Synthetic& Technical Textiles, Aramid.Polyester, Fleece | √ | × |
| Foam& Filter, Mats Polyester(PES), Polyethylene(PE), Polyurethane(PUR) | × | × |
| Neopren | × | × |
| Paper, Cardboard, Chipboard, Press Board | √ | √ |
| Stone, Ceramic, Granite, Marble, Natural stone, Pebble Stone slate | √ | √ |
| Rubber Stamps, Synthetic&silicone Rubber, Natural Rubber, Microporous Foam | × | √ |
| Silicone Rubber, Synthetic Rubber | √ | √ |
| Glass, Pressed Glass, Float Glass, CrystalGlass, Mirror Glass | × | √ |
Why choose us
 |
 |
Logistics & Transportation
 |
 |
 |
| Machine cleaning and Protective oil processing | Wrapping with protective film | Wooden box sealing |
 |
 |
 |
| Forklift moving goods | Container Loading | Container Sealing and Transportation |
Evaluation
Regarding the company
Century Star (Jinan) Intelligent Technology Co., Ltd. is a professional laser enterprise integrating R&D, manufacturing and marketing. For many years, we have focused on the development and production of lasers, especially the mechatronic design of CNC laser equipment. Upholding the business philosophy of "dedication", we take customers as the priority and pay close attention to every link in R&D and production to guarantee the performance and quality of each equipment. We keep innovating and upgrading laser products, supplying intelligent laser equipment to global customers.
Pre-sales service
After-sales service
FAQ
Q1 : I knew nothing about the laser machine ,how I choose the suitable machine for my work?
A1 : Only need to tell use the which kind material you want to cut or engraving ,the max thickness need to cut , and the max size you want to finish.
Q2:When I got this machine, but I don't know how to use it. What should I do?
A2:English manual & video will be sent out together with the machine. If you still need any furthe helps,our engineer can also guide you via wechat, skype or video conference for free. If still not workable, our engineer can go aboard to guide you ,but some charge is needed.
Q3:If some problems happen to this machine during warranty period, what should I do?
A3:When customer supply picture & video, free parts will be supplied during machine warranty period if machine have some problems.While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
