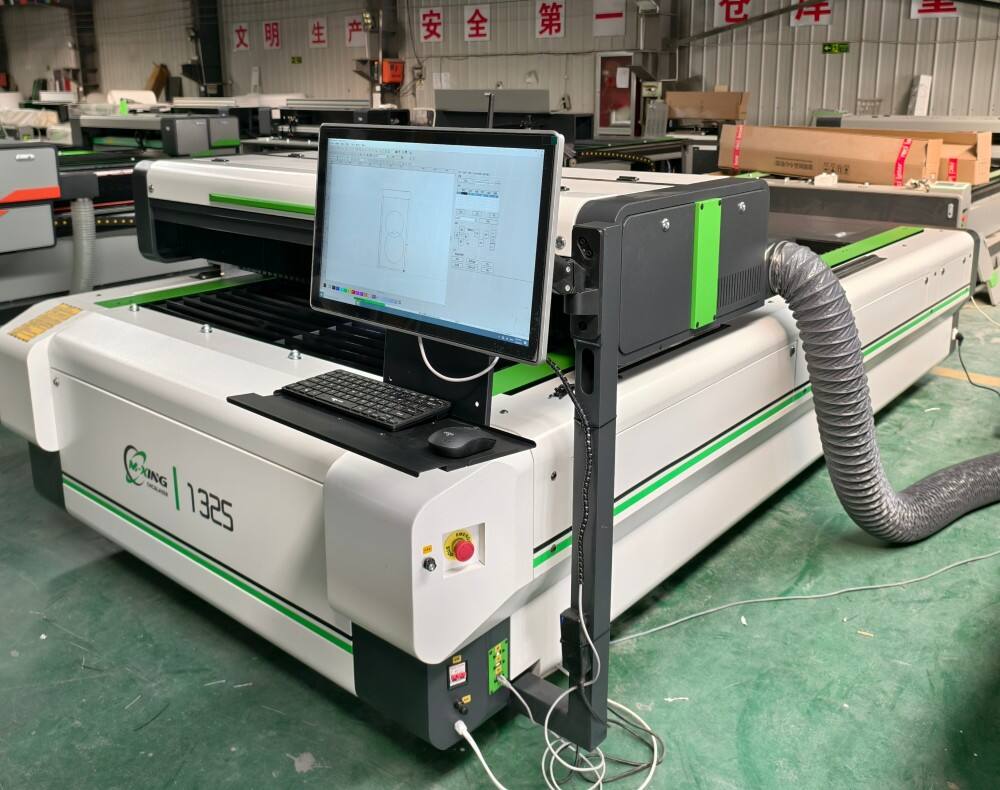

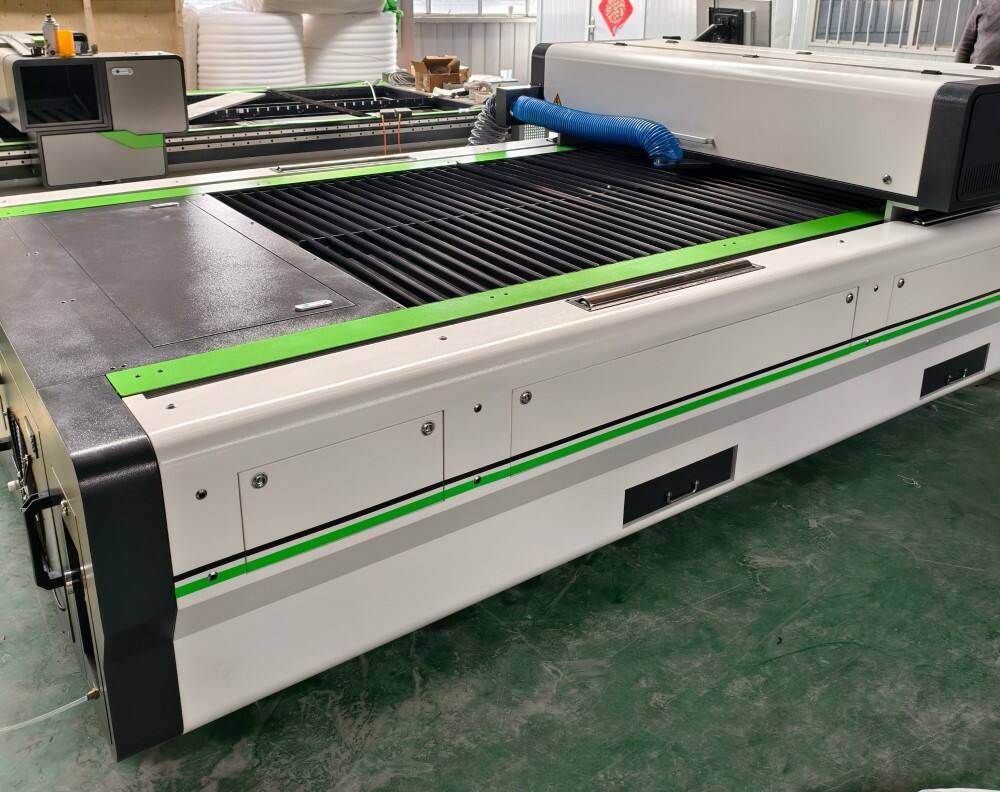

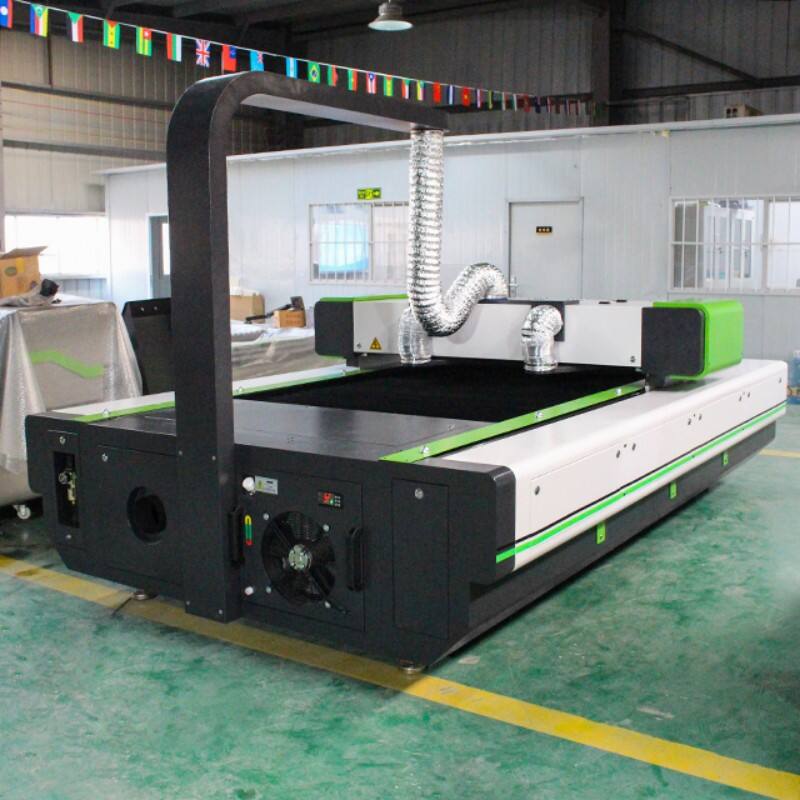

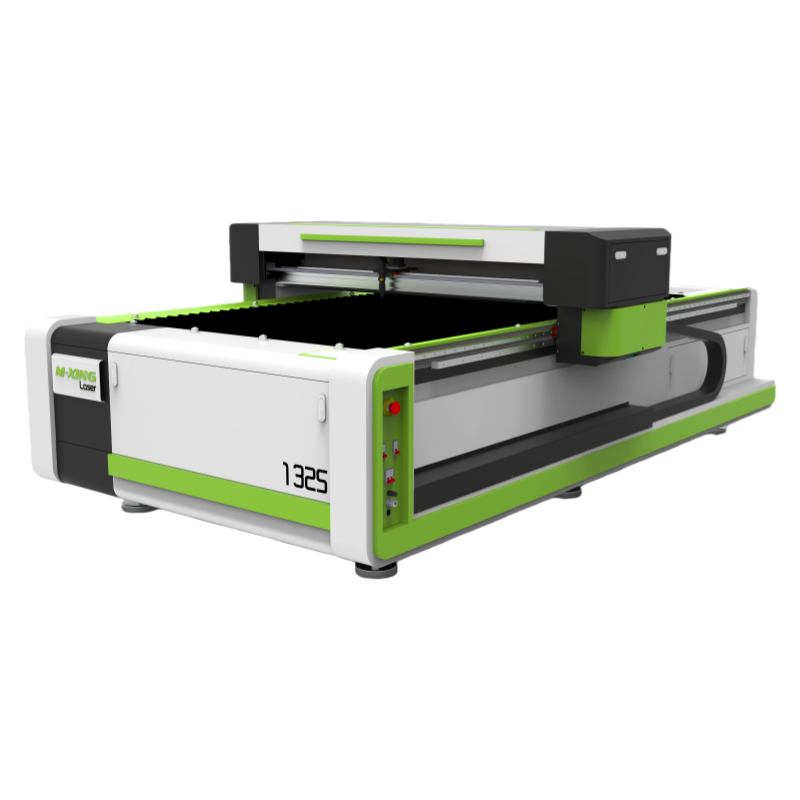

1325 magnetic levitation co2 laser cutting engraving machine high speed
Brand name：Mingxing
Model Number：X1325G
Place of Origin：China
Certification: CE FDA
Model Number：X1325G
Place of Origin：China
Certification: CE FDA
- Overview
- Recommended Products
Description
High Precision, High Speed and Outstanding Quality
300W/500W non-metal CO2 laser precision cutting solution
300W/500W non-metal CO2 laser precision cutting solution
Competitive Advantage
1.This machine features a heavy-duty square tube welded bed, unlike traditional 1325 laser cutting machines.In the industry, it undergoes heat aging and gantry milling treatment, ensuring long-term deformationresistance and excellent stable vibration absorption performance. The machine tool operates at high speeds,reducing machine resonance and achieving higher cutting precision.
2.Both X and Y adopt a magnetic levitation transmission structure, with an idle speed of up to 1200 mm/s. Thishigh-speed and high-precision technology can meet the needs of high-end customers such as thoseproducing acrylic crafts.
3.It adopts an autofocus laser head, and the X-axis uses fire-resistant materials and dustproof devices toreduce the impact of smoke on the optical path.
4.The water chiller has been upgraded to a built-in chiller, eliminating the need for installation and saving timeand effort.
 |
 |
 |
Specifications
| Model | Specifications |
| Model | X1325 |
| Laser Power | 300W, 500W |
| Working Area | 1300 mm × 2500 mm |
| Laser Type | CO2 Sealed Glass Tube Laser |
| Control and Drive | Linear Servo Motor and Drive |
| Working Voltage | AC220V 50Hz |
| Processing Accuracy | 0.05 mm |
| Total Power | ≤4500W |
| Machine Dimensions (mm) | 3600 × 2100 × 1170 |
| Data Transmission Method | USB Cable / Disk / Network Cable |
Technical Details
 |
 |
 |
|

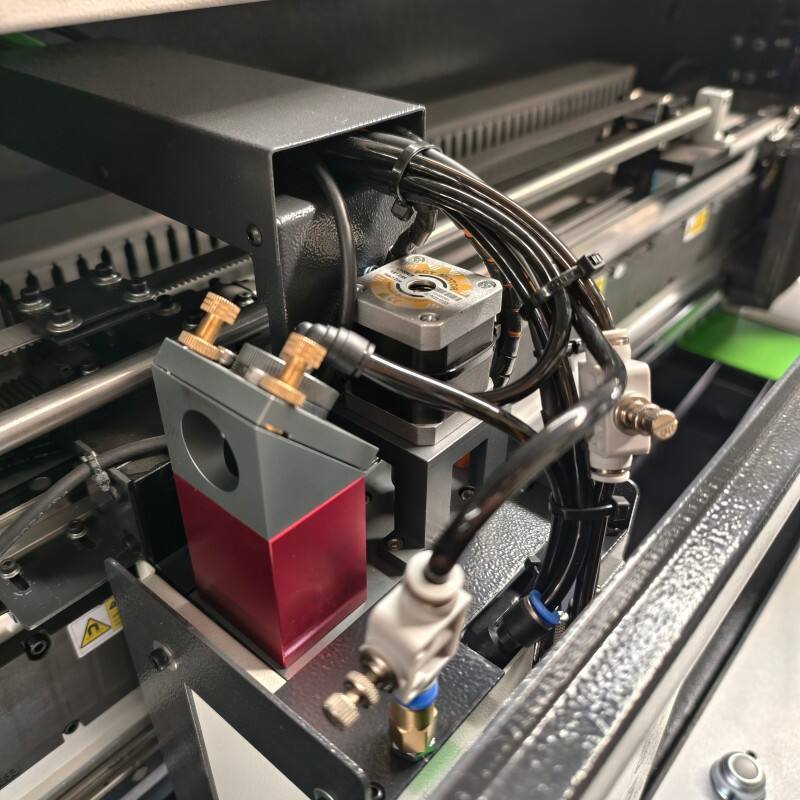

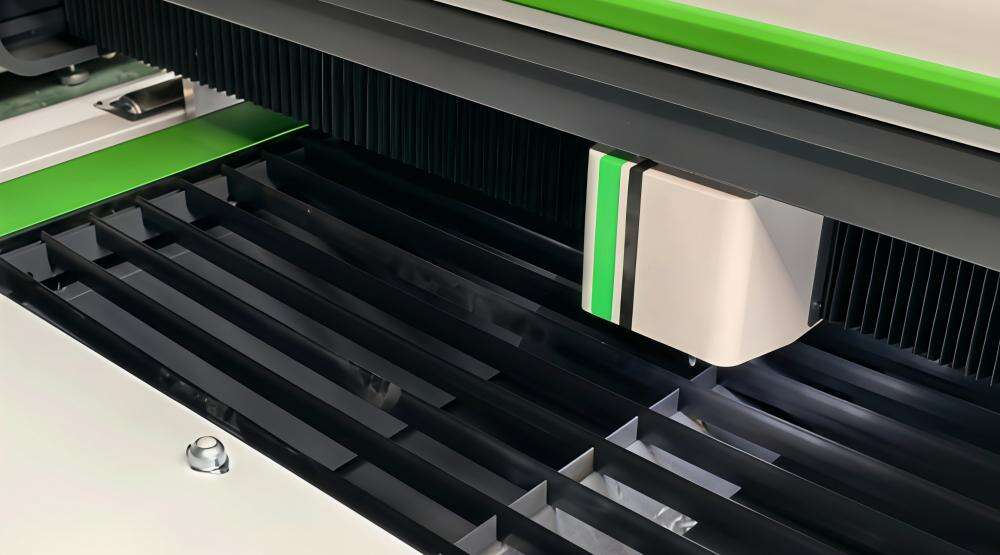

Laser Head Auto-focus laser head, can automatically identify material height, reliable performance and high engraving accuracy with red light, covenient and quick infinding engraving and cutting position. |

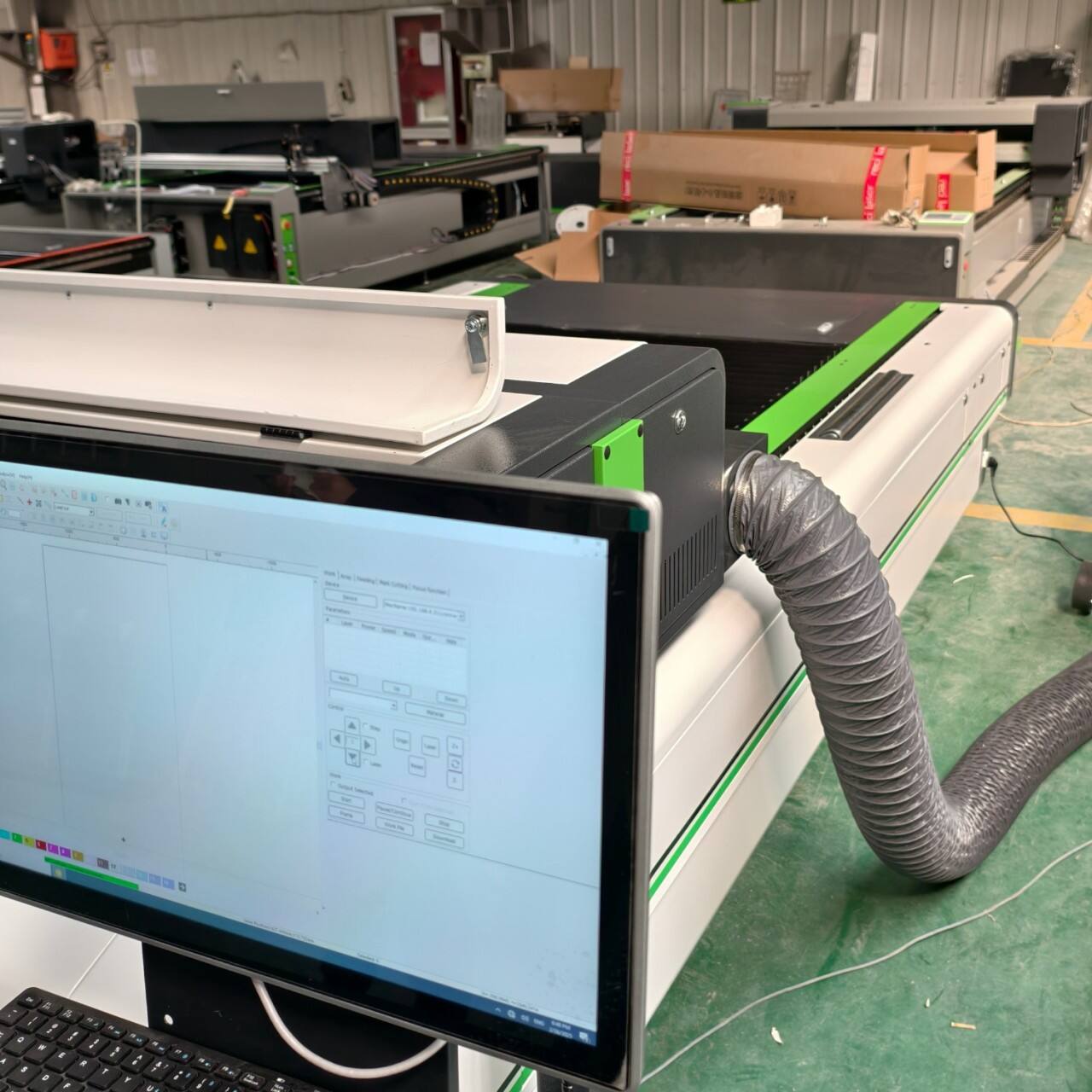

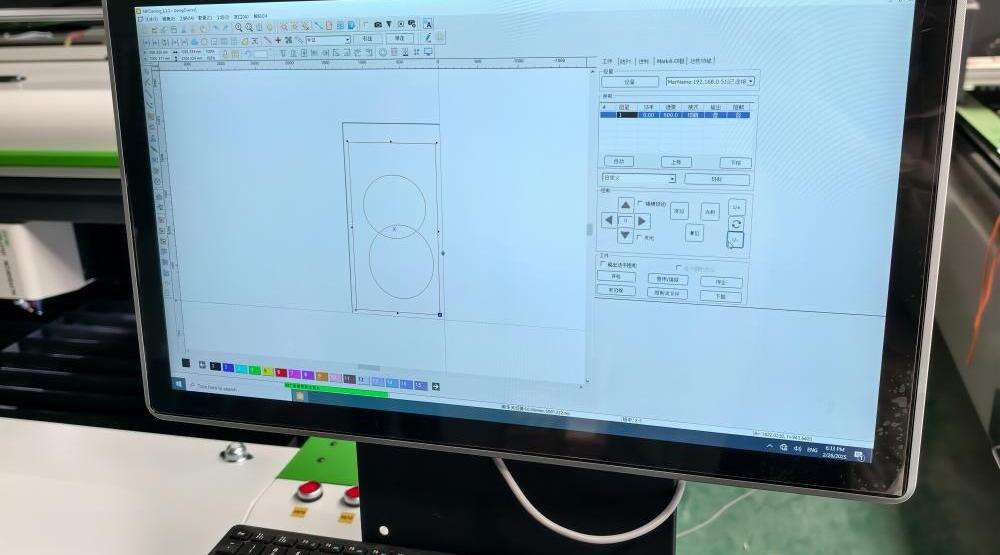

Self-made control system With the help of customized industrial computers, the cutting speed is increased by 40%, and the processing accuracy of complex curves reaches the top level in the industry. |

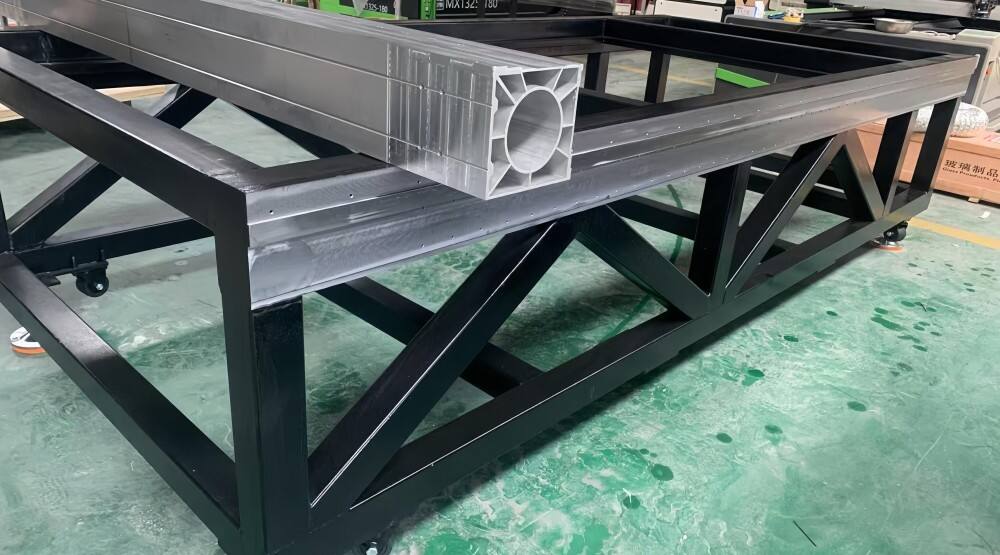

Machine Bed Heavy square tube welded bed. After heat aging and gantry milling treatment, it will not deform for a long time and has good stable vibration absorption performance.High-speed cutting of machine toals reduces machine tool resanance and has highercutting accuracy. |
 |
 |
 |
|

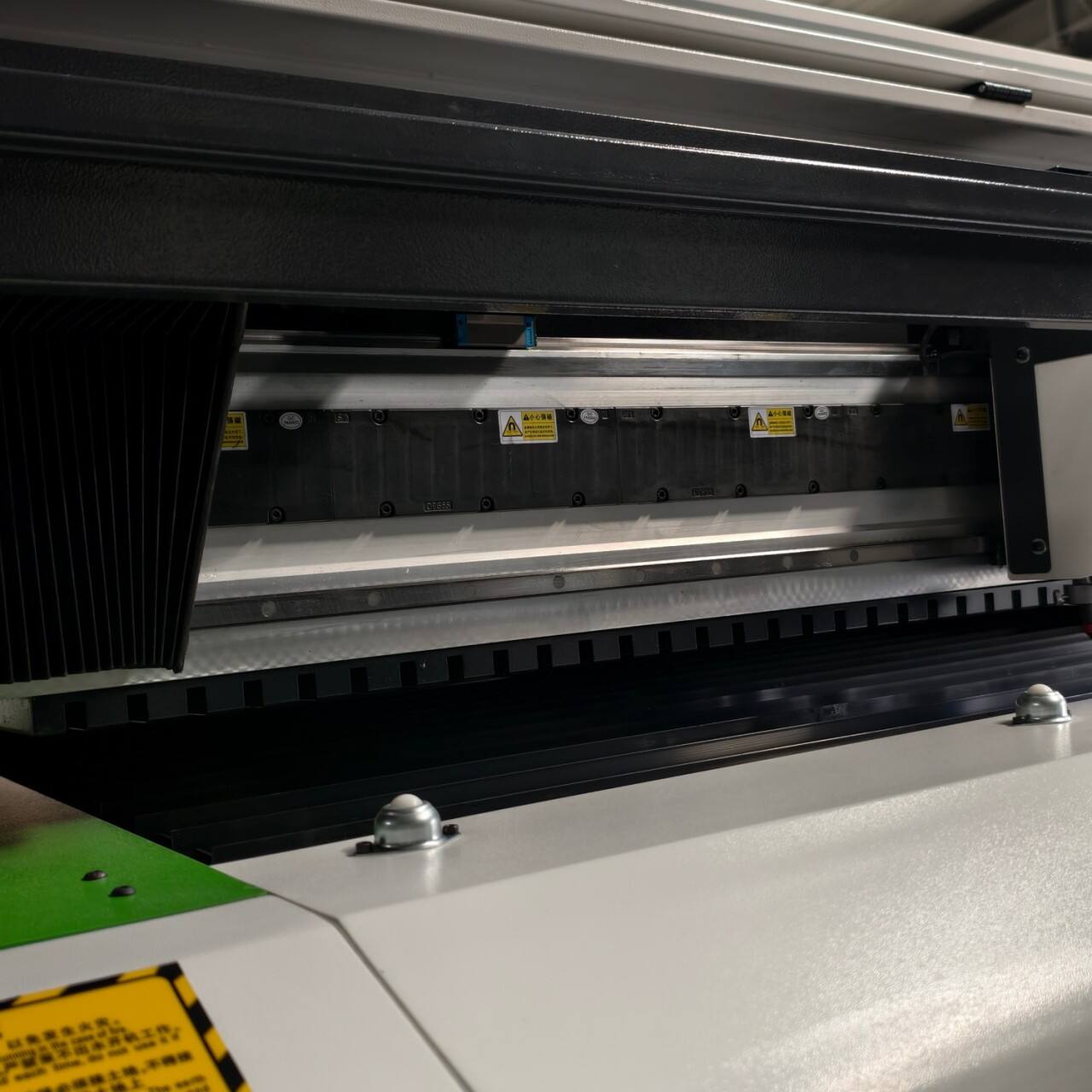

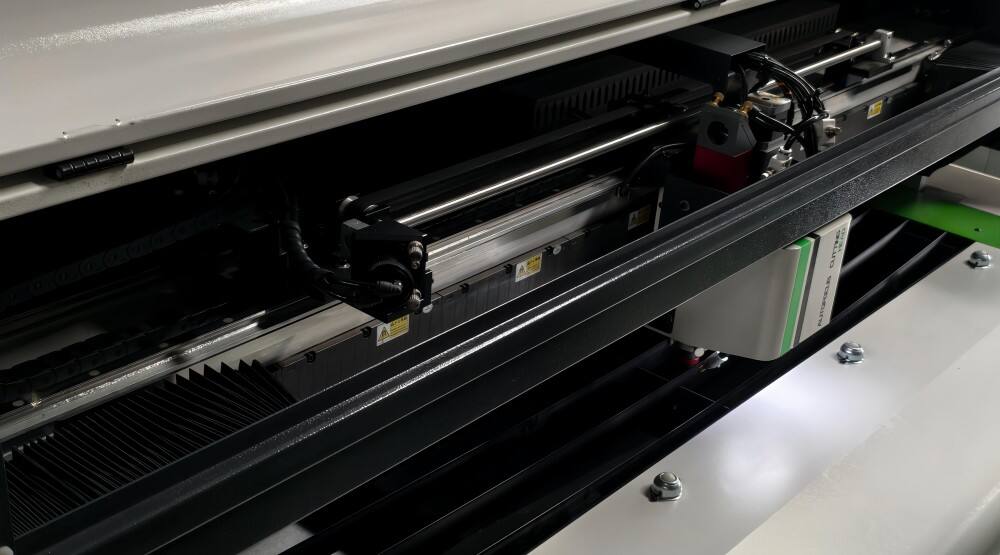

X-axis and Y-axis XY both adopt linear motar transmission structure, the air travel soeee canreach 1000mmn/s, high speed end high precision. which can meet theneeos of high end customners such as acrylic crafts. |

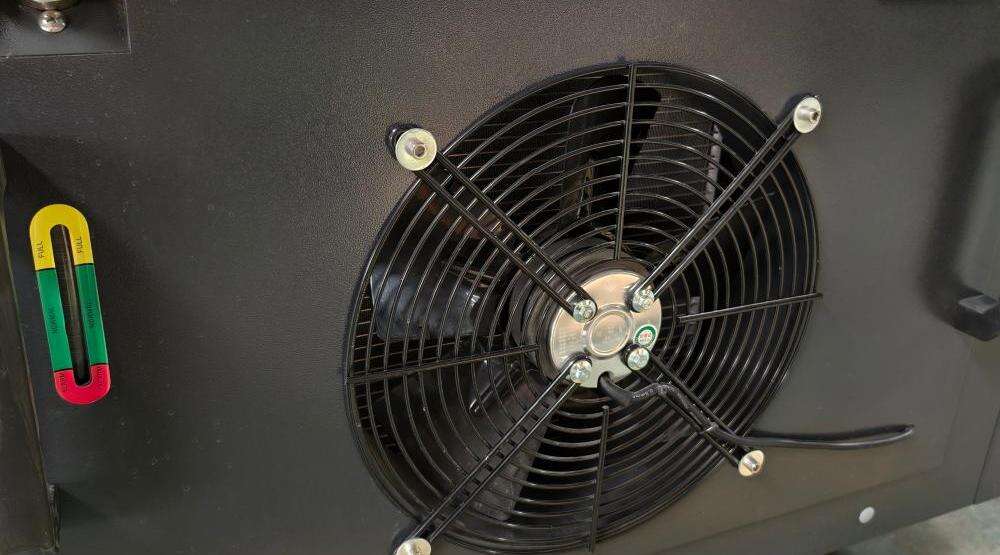

Water Chiller Updated to a pull in water chiller, no installation required, saving time and effort. |

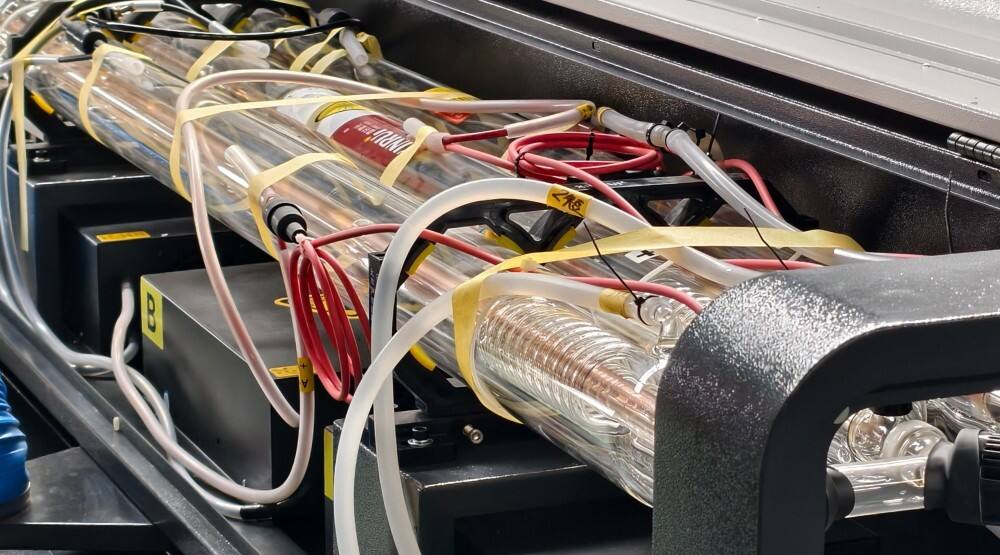

Power Supply The laser power supply and laser tube are installed together to prevent damage to the high-voltage line due to high-speed movement. |
Applications
| Material | Cut | Engrave | |
| Acrylic,PP,PET,PC,PMMA,Organic Board,Double Color Plate | √ | √ | |
| Plastic,PP,PET,PC,PMMA,PS,PES,PA,Plastic Foils&Films,Polycarbonate.Polyester or Polyimide Membrane Keyboards | √ | √ | |
| Wood,Bamboo,Veneer,MDF,Blasa Wood,Plywood | √ | √ | |
| Leather,Pig Leather,Cow Leather,Sheep Leather | √ | √ | |
| Textile,Cotton,Silk,Felt,Lace,Synthetic&Technical Textiles,Aramid.Polyester,Fleece | √ | × | |
| Foam&Filter,Mats Polyester(PES),Polyethylene(PE),Polyurethane(PUR) | × | × | |
| Neopren | × | × | |
| Paper,Cardboard,Chipboard,Press Board | √ | √ | |
| Stone,Ceramic,Granite,Marble,Natural stone,Pebble Stone slate | √ | √ | |
|
Rubber Stamps,Synthetic&silicone Rubber,Natural Rubber,Microporous Foam |
× | √ | |
| Silicone Rubber,Synthetic Rubber | √ | √ | |
| Glass,Pressed Glass,Float Glass,CnystalGlass,Mirror Glass | × | √ | |
Why choose us
1. 12-hour rapid pre-sales response and free consultation.
2. We can provide any type of technical support to users.
3. Free sample production is available. Videos and images are provided.
4. We offer advanced solution design for all distributors and users.
5. We have manuals and CD/USB drives for software installation, operation, and machine use and maintenanee.
6. If parts are damaged during transportation, we can provide new parts.
 |
 |
Logistics & Transportation
 |
 |
 |
| Wrapping with protective film | Wooden box sealing | Forklift moving goods |
 |
 |
| container loading | Container Sealing and Transportation |
FAQ
Q1: What materials can this machine process?
A: wood, acrylic (≤20mm), leather, glass, plastics. Non-reflective materials recommended for optimal safety.
Q2: Is training included?
A: Yes! We provide:
1-day online operation training
2000+ material parameter database preloaded
24/7 technical support via TeamViewer
Q3: What’s the advantage of magnetic levitation vs traditional rails?
A:40% faster speed
Q4: Can it work 24/7 for mass production?
A: Yes. Certified for continuous operation with:Laser source lifespan ≥80,00 hours
Q5: Do you support sample processing?
A: Free sample cutting/engraving! Send your design file (DXF/AI) and material specs. We’ll return results within 48hrs.
Q6: How about warranty?
A:1-year warranty for laser source & motion system
